View detailed product overview
Push button
https://www.eao.com/p/feb7ce50

Stop request switch - Illuminated push button, Series 84, Ø 25 mm, illuminative, Raised, 1 NO, Gold-plated silver, IP65, IP67, Flat ribbon cable

  • 84-9500.6A
  • 84-7111.700
  • 84-1101.0
  • 84-8511.6340

  • Colour
  • Mounting type
84-9500.6A
  • Lens colour
  • Lens material
  • Lens type
  • Shape of illumination
84-7111.700
  • Front bezel colour
  • Front bezel material
84-1101.0
  • Terminal
  • Illumination colour
  • Operating voltage
84-8511.6340
Add Accessories & Tools
Add to compare
Add to Cart
Your product:
84-9500.6A
84-7111.700
84-1101.0
84-8511.6340

84-9500.6A~84-1101.0~84-7111.700~84-8511.6340

Stop request switch - Illuminated push button, Series 84, Ø 25 mm, illuminative, Raised, 1 NO, Gold-plated silver, IP65, IP67, Flat ribbon cable

Product range
HMI function:
Stop request switch
Series:
Series 84
Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel colour:
Black
Front bezel material:
Plastic
Colour:
Traffic blue
Mounting
Design:
Raised
Mounting cut-out:
Ø 22.5 mm
Mounting type:
pole mounting Ø35mm
Operating-/Indication part
Lens colour:
Colourless
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Lens type:
Level with front bezel
Symbol:
No Symbol
Illumination colour:
Blue
Shape of illumination:
Front
Electrical characteristics
Switching voltage and switching current:

Voltage

42 VAC/DC

Current

100 mA

Power

max. 2 W
Contacts configuration:
1 NO
Operating voltage:
12 V DC ±10 %
Operation current:
10 mA
Switching rating:
42 V AC/DC @ 0,1 A
Mechanical Characteristics
Terminal:
Flat ribbon cable
Contact material:
Gold-plated silver
Switching action:
Momentary
Switching system:
Short-travel element
Tightening torque:
Fixing nut 0.8 Nm
Total weight:
0.058 kg
Ambient Condition
IP front protection:
IP65, IP67
Operating temperature:
– 25 °C … + 70 °C
Vibration resistance:
Max. 50 m / s² from 10 Hz ... 500 Hz, 10 cycles, 3-axis (sinusoidal EN IEC 60068-2-6)
Other
Material:
Plastic
Housing colour:
Black
Housing material:
Plastic
Product attributes:
Housing pole mounting Ø 35 mm
Colour RAL:
5017 RAL
max. number of switching elements:
1
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Share and save this product
Download files
Add to Cart
Your product consists of the following 4 COMPONENTS:
84-9500.6A

84-9500.6A

Housing pole mounting

Front
Colour:
Traffic blue
Mounting
Mounting cut-out:
Ø 22.5 mm
Mounting type:
pole mounting Ø35mm
Mechanical Characteristics
Weight:
0.035 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Housing pole mounting
Dimension:
Ø 35 mm x 111 mm x 38.7 mm
Material:
Plastic
Product attributes:
Housing pole mounting Ø 35 mm
Hints:
Screws are not contained in the scope of supply
Please note: The cut-out of the pole must read min. 22 mm and needs to be aligned with the switch
Colour RAL:
5017 RAL

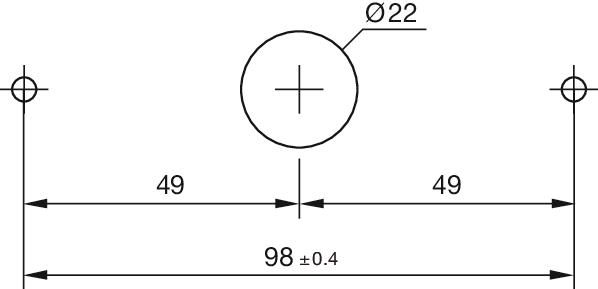

Mounting cut-outs:
Mounting cut-outs

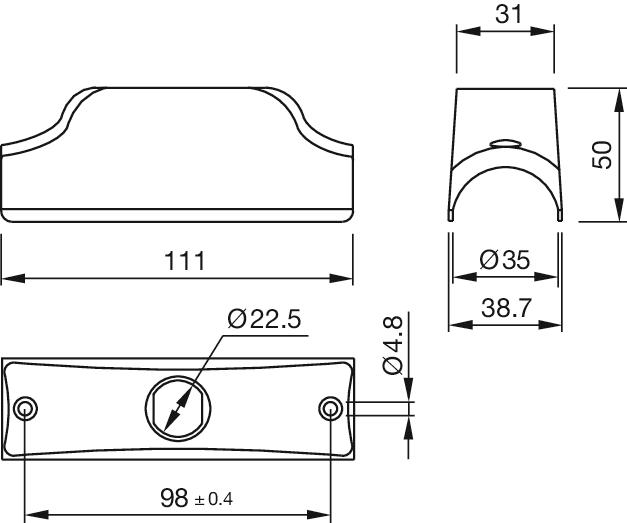

Dimension drawings:
Dimension drawings
Download files
Where to buy
Add to Cart
84-7111.700

84-7111.700

Lens

Front
Front form:
Round
Operating-/Indication part
Lens colour:
Colourless
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Lens type:
Level with front bezel
Symbol:
No Symbol
Shape of illumination:
Front
Mechanical Characteristics
Weight:
0.001 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Lens, Ø 19.7 mm, Illuminated, No Symbol, Colourless, Flush, Plastic
Dimension:
Ø 19.7 mm
Description component:
Material lens: Plastic as per UL94 V2
Download files
Where to buy
Add to Cart
84-1101.0

84-1101.0

Actuator

Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel colour:
Black
Front bezel material:
Plastic
Mounting
Design:
Flush
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens illumination:
Illuminated
Mechanical Characteristics
Switching action:
Momentary
Switching system:
Short-travel element
Mechanical lifetime:
≥1 Mil. cycles of operation
Operating force:
4.5 N ±1 N (measured at the lens)
Operating Travel:
1.2 mm
Tightening torque:
Fixing nut 0.8 Nm
Weight:
0.007 kg
Ambient Condition
IP front protection:
IP65, IP67
IP Protection:
IP65, IP67
Operating temperature:
– 25 °C … + 70 °C
Storage temperature:
– 40 °C … + 85 °C
Climate resistance:
Damp heat, cyclic: 96 hours, + 25 °C/97 %, + 55 °C/93 % relative humidity, as per EN IEC 60068-2-30
Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78
Rapid change of temperature: 100 cycles, – 40 °C … + 80 °C, as per EN / IEC 60068-2-14
Certificate
Approbations:
EBC (TSI PRM), NFF
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 22.5 mm, Ø 25 mm, Illuminated, Round, Black, Plastic, Momentary, IP65, IP67
Dimension:
Ø 25 mm
Housing colour:
Black
Housing material:
Plastic
Description component:
Material housing actuator: Plastic as per UL94 V0
Wiring diagrams:
Wiring diagrams
Mounting cut-outs:
Mounting cut-outs
Dimension drawings:
Dimension drawings
A = Plug-in terminal 2.8 mm x 0.8 mm
B = Flat ribbon cable
D = Lens level with bezel
E = Lens raised above bezel
H = Mushroom-head cap
Dimension drawings
A = Plug-in terminal 2.8 mm x 0.5 mm
B = Flat ribbon cable
D = Lens level with bezel
E = Lens raised above bezel
F = Lens konvexe level with bezel
G =Lens convexe raised above bezel
H = Mushroom-head cap
Dimension drawings
A = Lens level with bezel
E = Lens raised above bezel
H = Mushroom-head cap
Dimension drawings
D = Lens level with bezel
E = Lens raised above bezel
F = Lens konvexe level with bezel
G = Lens convexe raised above bezel
H = Mushroom-head cap
Download files
Where to buy
Add to Cart
84-8511.6340

84-8511.6340

Switching element

Operating-/Indication part
Illumination colour:
Blue
Electrical characteristics
Switching voltage and switching current:

Voltage

42 VAC/DC

Current

100 mA

Power

max. 2 W
Contacts:
1 NO
Operating voltage:
12 V DC ±10 %
Operation current:
10 mA
Switching rating:
42 V AC/DC @ 0,1 A
Electric strength:
500 VAC, 50 Hz, 1 minute according to DIN IEC 60512-2
Mechanical Characteristics
Terminal:
Flat ribbon cable
Contact material:
Gold-plated silver
Switching system:
Short-travel element
Switching system:
Short-travel snap-action switching system with two independent contact points and tactile operation
Guarantees reliable switching even of very light loads. Fitted with 1 normally open contact
Mechanical lifetime:
≥1 Mil. cycles of operation
Operating force:
4.5 N ±1 N (measured at the lens)
Operating Travel:
ca. 0.5 mm
Weight:
0.015 kg
Ambient Condition
IP Protection:
IP40 rear side, standard version, IP67 rear side, fully sealed version, with mounted actuator only.
Operating temperature:
– 25 °C … + 70 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
Max. 100 m / s², pulse width, 3-axis (sinusoidal EN IEC 60068-2-27)
Vibration resistance:
Max. 50 m / s² from 10 Hz ... 500 Hz, 10 cycles, 3-axis (sinusoidal EN IEC 60068-2-6)
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Switching element, Short-travel element, 42 V AC/DC @ 0,1 A, Gold-plated silver, 1 NO, Flat ribbon cable
Material:
Plastic
Product attributes:
LED and built-in resistor included
Hints:
LED and built-in resistor included
Standard version: Cable length 300 mm
Other options on request: Customisation of cable and connectors, rear side fully sealed (IP 67)
Protection degree (rear side): IP 40, upgrade to IP 67 with plug Part No. 84-900 possible. With applications where strong vibrations occure, the plugs may become loose
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
Wiring diagrams:
Wiring diagrams

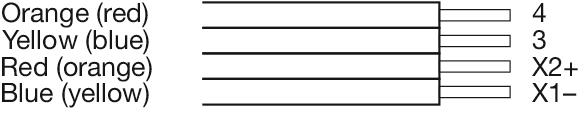

Component layouts:
Component layouts
Download files
Where to buy
Add to Cart
