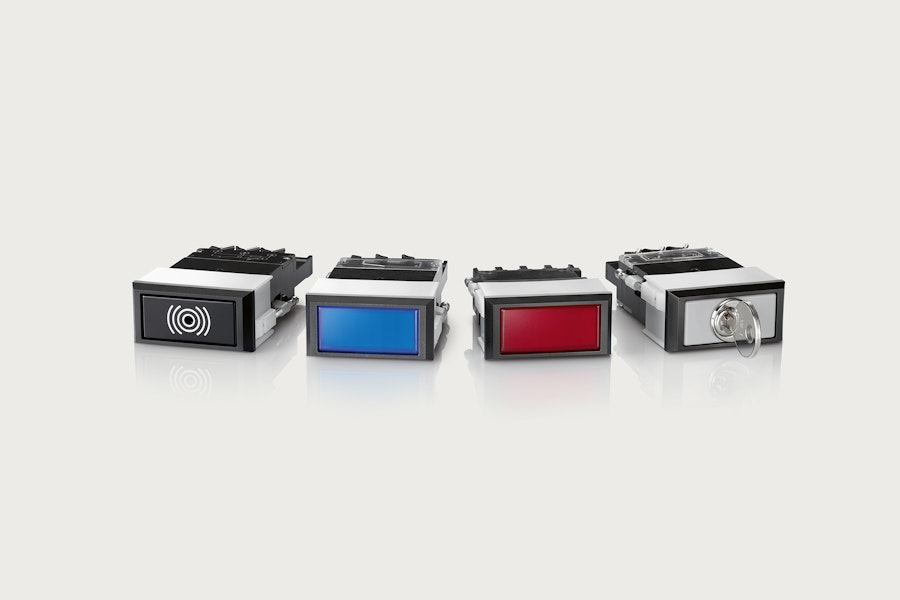

Series 03.
Powerful. Proven and long lasting.
As if made for use in shipbuilding and panel building: the compact Series 03 is especially suitable for your application in flush design.
The Series 03 can do this.
The large rectangular design (48 x 24 mm) offers you the possibility of double illumination in addition to the "XL" illuminated area. The labelling can be rendered through engraving, hot stamping or pad printing.
Typical application areas
- Building technology and automation
- Control cabinets
- Rail, electrical and waterbound vehicles
Advantages
- Reliable switching of high loads
- Compact construction
- Long lasting
Functions
- Pushbutton
- Illuminated pushbutton
- Keylock switch
- Indicator
- Buzzer
Front protection
- IP40
- IP67 (only with accessory)
Mounting cut-outs
- 41 mm x 21 mm
Terminal
- Screw terminal
Markings
- Engraving
- Hot stamping
- Pad printing
Functions Series 03.
Push button.
Reliable with premium haptics.
Universally applicable actuators and indicators: push buttons from EAO are the right choice if reliability and first-class haptics are what counts for you.
Push buttons are ideal for mechanical engineering, control engineering, public and private passenger transport, lifting and conveying systems, heavy duty and special vehicles, and the automotive industry.
Advantages
- Intuitive to use
- Excellent haptic feedback
- Large selection of operation areas
- Wide range of colours for lenses
- Wide variety of symbols and markings, including customer-specific options
- Very long service life for mechanical and electrical components
- Wide range of minimum and maximum switching ratings

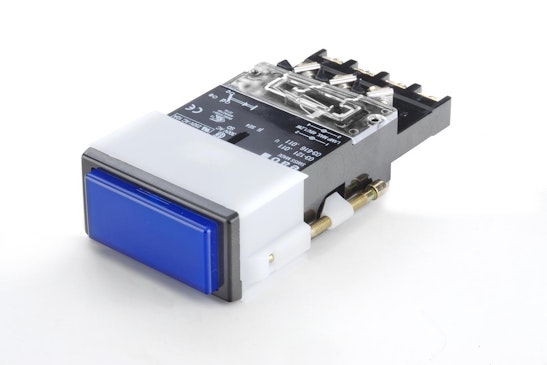

Illuminated push button.
Worldwide standard from the pioneer.
The unrivalled original: EAO is the pioneer of illuminated push buttons. Since their development in 1958, these modular actuators and indicators are found in many applications and have been in rigorous use all over the world, thanks to their reliable visual feedback.
Advantages
- Intuitive to use
- Excellent haptic feedback
- Large selection of operation areas
- Wide range of colours for lenses and illumination
- Wide variety of symbols and markings, including customer-specific options
- Full-face, uniform, and glare-free illumination
- Very long service life for mechanical and electrical components
- Wide range of minimum and maximum switching ratings

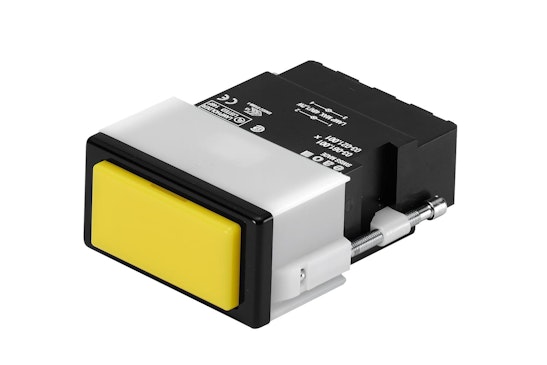

Indicator.
Flexible and highly visible status indication.
Intuitive, flexible and easy to maintain: EAO's indicators are used worldwide where reliable visual feedback is required. Indicators can be used universally, and feature impressive, intuitive visualisation and a high quality of workmanship.
Typical functions
- Illumination in one or two colours
- Bright and homogenous illumination
- Wide range of standard symbols
- Customised symbols on request
- Optional lighting effects (flashing and dimming)
Advantages
- Large selection of lenses in different forms
- Wide range of colours for lenses and illumination
- Wide variety of symbols and markings, including customer-specific options
- Full-face, uniform and glare-free illumination
- Day/night design
- Multi-coloured illumination compatible
- Various lighting effects

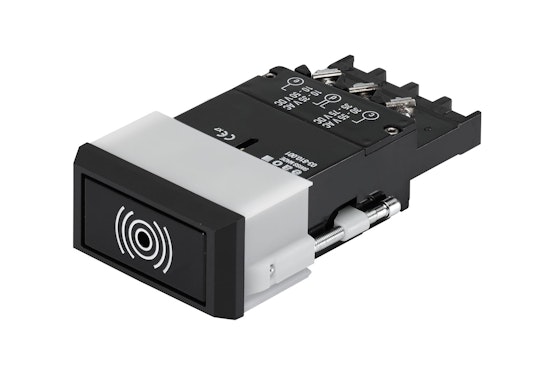

Buzzer.
Clever acoustic alarms.
EAO buzzers generate sound at a predefined volume and tone frequency. The compact dimensions mean you can use them worldwide in machines, medical equipment, lifting and conveying systems, driver's cabs and building technology.
Advantages
- Large selection of designs
- High sound pressure
- Very long service life for electrical and audio components
- Models with wide voltage range
Certificates and approvals Series 03.
Function groups.
Push button.
EAO introduced the first illuminated push button more than 60 years ago, revolutionising control units in the process. This EAO innovation is still the international industry standard today.
Keylock switch.
Your key for more safety: HMI keylock switch function group also offers you ID keylock switches and key-insert switches. They all prevent erroneous or unauthorised actuation on machines.
Indicator.
For intuitive and reliable status indication: EAO's indicators are the first choice for use in almost all machines. They offer you visible illuminated feedback everywhere you need it.
Sound indicator.
Buzzers are acoustic warning indicators which generate tones at a pre-defined volume and frequency. Their use is particularly worthwhile for you in working environments and in public facilities.Applications.
Food & Beverages packaging.
EAO is the partner for effective HMIs in connection with your packaging plants for food and beverages. We enable you to achieve efficient operation and monitoring of your processes.
Semiconductors.
HMI Components and user-specific HMI Solutions from EAO offer measurable benefit in semiconductor and electronics production.
Special machine construction.
EAO HMIs for special-purpose machines advance your industrial automation. They enable you to operate and monitor your processes efficiently, safely and with measurable benefit.
Shipbuilding.
EAO, the expert in Human Machine Interfaces, offers the full HMI programme for shipbuilding: from high-quality push buttons, keypads and demanding operating elements to complete HMI operator panels and HMI solutions.Online product configurator.
Quick and easy to your HMI device.
Select the desired HMI function as well as the product features. Fast, intuitive, and exactly the way you want it.
