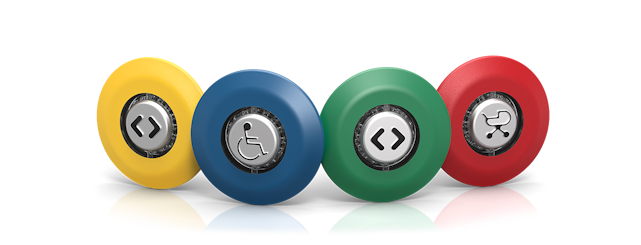

![Series 56 push buttons in yellow, blue, green and red with different symbols (BR56_KS_01_00034) [1232x470]](https://eao-media.imgix.net/6QtppmyNQqKdZ7UP1hzK?w=1282&h=490&auto=format&auto=compress&fit=crop)
Public buses.
Reaching destinations safely and easily.
Maximum comfort: technological progress and modern design are only increasing in importance for public buses. HMIs from EAO offer you many innovative solutions in this respect.
What our HMIs can do for public buses.
Safe boarding and disembarking.
For public transport, such as buses and trams, to represent an attractive option for travellers, it must be punctual, safe and easy to get on and off. In addition, the EAO stop request button makes a significant contribution towards ensuring that passengers board and disembark safely and comfortably.
Entry and information systems
EAO has a comprehensive range of perfectly designed HMI solutions for passenger entry and information applications. This is why EAO door opening systems have become an indispensable feature on many of the world’s most modern buses and trams.
Intuitive – even for disabled passengers
Modern bus and tram design tends to favour vehicles with low floors or ramps which provide disabled passengers with easier access. Passengers with impaired vision or hearing benefit from EAO’s Series 57, which features dual illumination feedback rings, raised symbols and acoustic signals that make it best in its class for public transport systems.
Solutions with HMI Functions.
Various tools full of individuality.
In-Cabin Keypads and Rotary Cursor Controller.
Modular and reliable, for vehicle interiors.
These configurable HMIs are developed in accordance with IATF 16949 and can be combined within a modular design – for reliable and safe E1 applications in the interiors of special vehicles, buses, coaches and trucks.
Technological advances and high-tech vehicle design are of growing importance for special vehicles, buses, coaches and trucks. This trend is reflected by the Series 09 In-Cabin Keypads and Rotary Cursor Controller with their high-quality modular automotive design, which provides up to IP5K4 front protection according to DIN ISO 20653. These durable HMIs are developed in accordance with the internationally recognized automotive standard IATF 16949 and feature impressive application-specific configuration options for the illumination and the communication interfaces as well as the possibility to make a customised selection and arrangement of the symbols.
Typical applications
- Vehicle headlights, position lights and sidelights
- Windscreen washing system and air conditioning system
- Hazard warning lights
- Navigation in display menus or user interfaces
- All-round lighting and warning signals
- Controlling side supports, cleaning brushes or a mower
- Controlling pumps or hydraulics
- Adjustment of parameters and settings
- And many more
Advantages
- Programmable RGB halo ring and symbol illumination (can be controlled separately)
- High-quality modular automotive design with IP5K4 front protection according to DIN ISO 20653
- Reliable HMI developed according to recognised automotive standard IATF 16949
- Available with CAN bus connection or as hard-wired variants
- Interchangeable ISO 7000 or customer-specific symbols
Series 09 In-Cabin Keypads are available in SUPER, PLUS and BASIC variants. With this wide range of variants, customers can choose between a CAN bus connection or hard-wired version depending on their application, and they can further customise their keypad thanks to a variety of illumination options and interchangeable symbols - for optimal integration of the HMI in the vehicle interior. The rotary cursor controller and rotary push button modules cover the functions of a rotary control, a push button and, in the case of the rotary cursor controller, also a digital joystick.
LIN switch panel.
For all your buttons.
Intelligent and reliable inside the vehicle: the LIN switch panel is ideal for all your E1 applications. It consists of nine buttons with freely selectable symbols in accordance with ISO 7000 or based on your individual wishes.
Advantages
- Flexible application due to configurable switch assignment
- Intelligent HMI with LIN bus integration developed according to IATF 16949
- Ergonomic and innovative design
- Illuminated ISO 7000 or customised symbols
- Quick and easy installation by clip-in or screw-in mounting
Charging solutions.
Charged and connected whilst onboard.
EAO’s railway certified Charging Solutions help train operators to enhance the passenger experience by allowing passengers to charge their phones, tablets, and laptops, on the move.
EAO chargers can be fitted to tables, seatbacks, walls and even grab poles to provide a phone charging service to nearly every passenger. With the new multi-voltage Power Delivery / PPS USB-C sockets, EAO can also provide laptop and fast charging for phones through one connection.
Advantages
- Seatback holster, or embedded tabletop wireless chargers
- Wireless chargers have additional 5V USB for charging older phones
- New Multi-voltage USB-C socket charge both laptops and phones
- Replace 230V outlets with USB-C phone and laptop charging sockets
- Can be retrofitted to seats, tables and bulkheads during refurbishment
- Rugged, reliable design for rail, tram and bus applications
Door opening push button.
For easy entry and exit.
They've succeeded a million times over: EAO's door opening push buttons have proven themselves worldwide in electric and electronic door solutions – including extreme climatic conditions. The easy-to-operate and vandal-resistant buttons meet all relevant standards and are ideally suited for public and private passenger transport.
Advantages
- Excellent tactile feedback
- Dual ring illumination in Series 57 models
- Quick installation without tools
- Large operation area with diameter of 74 mm in Series 57 models
- Raised symbols for the visually impaired as per TSI PRM
- Integrated audible finding tone for the visually impaired
- Resistant to cleaning agents
- Very long service life for mechanical and electrical components
- Electronic switching output in Series 57 models
- IP69K front protection in Series 57 models and IP67 front protection in Series 56 models
Stop Request Switch.
Comfortable and reliable.
Series 84 Stop Request Switches are ideal for use in buses and trams. The robust plastic housing can be colour-matched to the vehicle design and is suitable for pole diameters of 35 and 38 mm. They can also be fitted to smaller pole diameters of 25 to 30 mm using an adaptor.
The excellent tactile feedback that is typical of the Series 84 ensures intuitive operation, whilst the robust TSI-compliant aluminium lenses with raised symbols withstand the demands of intensive public use.
The halo ring illuminated in different colours provides clear status displays and supports the modern design. The Stop request switch can be supplied with different cable lengths and connection options – for maximum flexibility during installation.
Advantages
- Housing for pole diameters of 35 and 38 mm, with an adaptor for of 25 and 30 mm poles
- Also suitable for wall mounting
- Excellent tactile feedback
- Robust, TSI-compliant raised aluminium symbols
- Halo ring illuminated in a variety of colours
- Versatile cable lengths and plugs available on request
Push button.
Reliable with premium haptics.
Universally applicable actuators and indicators: push buttons from EAO are the right choice if reliability and first-class haptics are what counts for you.
Push buttons are ideal for mechanical engineering, control engineering, public and private passenger transport, lifting and conveying systems, heavy duty and special vehicles, and the automotive industry.
Advantages
- Intuitive to use
- Excellent haptic feedback
- Large selection of operation areas
- Wide range of colours for lenses
- Wide variety of symbols and markings, including customer-specific options
- Very long service life for mechanical and electrical components
- Wide range of minimum and maximum switching ratings
Call for aid push button.
Intuitive. Safe in hazardous situations.
Always on the safe side: Call for aid push button with raised bell symbol is used to activate emergency or assistance systems on public transport and on call for aid terminals.
Advantages
- Extra-large operating area for easy and safe use
- Robust, raised front bezel made of anodised aluminium prevents unintended activation
- Two individually controlled feedback rings
- High IP69K front protection
- Ideal for outdoor use
Illuminated push button.
Worldwide standard from the pioneer.
The unrivalled original: EAO is the pioneer of illuminated push buttons. Since their development in 1958, these modular actuators and indicators are found in many applications and have been in rigorous use all over the world, thanks to their reliable visual feedback.
Advantages
- Intuitive to use
- Excellent haptic feedback
- Large selection of operation areas
- Wide range of colours for lenses and illumination
- Wide variety of symbols and markings, including customer-specific options
- Full-face, uniform, and glare-free illumination
- Very long service life for mechanical and electrical components
- Wide range of minimum and maximum switching ratings
Universal switch.
Ideal for vehicle interiors – including for safety-relevant areas.
Universal switches meet your requirements for all E1-required applications, and are also available with an integrated connector recess. Universal switches are ideal for use inside vehicles, particularly for your switch controls in cars, electric vehicles, buses, trucks, and special vehicles.
Advantages
- Ideal for safety-relevant applications
- Wide range of designs and application-specific configuration options
- Ergonomic, modular design with IP5K4 protection rating according to DIN ISO 20653
- ISO 7000 or custom symbols
- Developed and manufactured in accordance with IATF 16949

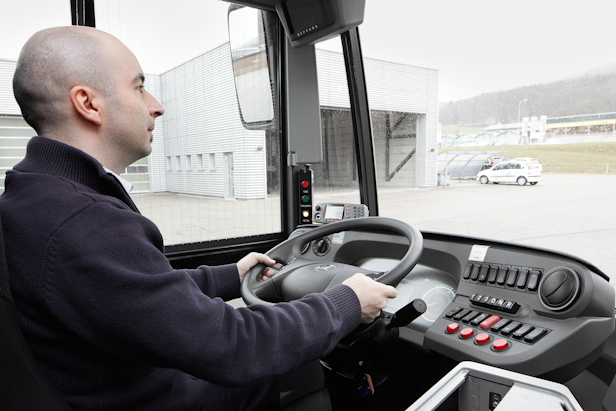

HMI Solutions in buses and trucks.
Your expert for mixed solutions.
HMI Solutions.
Reliable and efficient.
EAO can develop custom-tailored HMI Solutions for you. These solutions impress through innovative technology, intuitive operation, and reliable functions. You can gain from our expertise in mixed technological solutions of this type, as we deliver benefits from our innovative design concepts through to efficient production and logistics.
Your measurable benefit
- Combinable system-based solutions and expertise
- Global expert knowledge and global service
- Flexible and modular design
- Advantages in terms of cost and time
- Sustainability – including through retrofitting and modernisation
Online product configurator.
Quick and easy to your HMI device.
Select the desired HMI function as well as the product features. Fast, intuitive, and exactly the way you want it.
