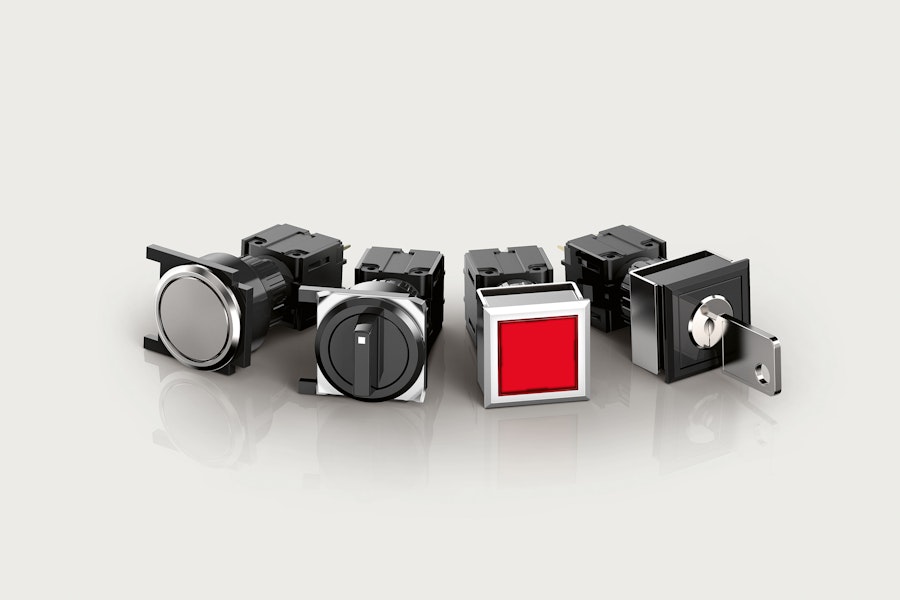

Series 71.
Unique PCB mounting system.
Unique printed circuit board (PCB) assembly makes Series 71 versatile for your applications in machine and control cabinet construction. You can configure the series in a modular way.
The Series 71 can do this.
Series 71 offers you a choice of flush-mounted buttons with tactile feedback, a high protection degree, and contact elements that you can mount on any printed circuit board (PCB). In addition, you benefit from flush-mounted construction and modern design.
The square, rectangular or round pushbuttons with large illuminated area for text and symbol labelling and bright LED illumination make it easy to design intuitive operating units.
Typical application areas
- Machinery and control systems
- Control cabinet engineering
- Special vehicles
- Conveyor systems
- Process automation
- And many other applications
You can combine the pushbuttons, illuminated pushbuttons, key-insert switches, selector switches and indicators however you wish on the same PCB level. You can connect the PCB and the attachment to the front panel quickly, easily and without spacer bolts using a locking pin.
Advantages
- Unique PCB mounting
- A variety of switching functions
- Modular design and flush mounting
- IP65 front protection
Functions
- Pushbutton
- Illuminated pushbutton
- Mushroom-head pushbutton
- Selector switch
- Keylock switch
- Indicator
IP front protection
- IP65
Mounting cut-outs
- Ø 22 mm
- Square
- Rectangular
Terminal
- PCB
Markings
- Engraving
- Laser marking
- Hot stamping
- Film insert/marking plate
- Screen print
Functions Series 71.
Push button.
Reliable with premium haptics.
Universally applicable actuators and indicators: push buttons from EAO are the right choice if reliability and first-class haptics are what counts for you.
Push buttons are ideal for mechanical engineering, control engineering, public and private passenger transport, lifting and conveying systems, heavy duty and special vehicles, and the automotive industry.
Advantages
- Intuitive to use
- Excellent haptic feedback
- Large selection of operation areas
- Wide range of colours for lenses
- Wide variety of symbols and markings, including customer-specific options
- Very long service life for mechanical and electrical components
- Wide range of minimum and maximum switching ratings
Illuminated push button.
With pioneer expertise built-in.
EAO is the pioneer of illuminated push buttons. The modular, universal-use actuators and indicators are used worldwide, wherever reliable optical and haptic feedback is needed.
The PCB connection in Series 71 saves space, making it suitable for many applications. The locking pins on each switching element mean that no mounting studs are required on the front plate.
Advantages
- Flush mount lenses
- Plastic or metal lenses
- With or without symbol
- IP65 front protection
Mushroom-head push button.
Excellent haptics and durability.
EAO's mushroom-head push buttons have proven themselves worldwide as on/off buttons in harsh environments. The large operation area also facilitates operation with gloves, opening up a wide range of applications.
Advantages
- Excellent haptic feedback
- Operation area with different diameters
- Large selection of colours and materials
- Illuminated versions
- Very long service life for mechanical and electrical components
- Support of all commonly used connection systems
Selector switch.
Versatile and durable.
EAO's selector switches are ideal for worldwide use, whether in operating systems for mechanical engineering, in dashboard supports, or in driver’s cabs and the cockpits of rail and road vehicles. You can equip the selector switches with up to 12 switching positions and up to 16 contacts.
Advantages
- Intuitive to use
- Excellent haptic feedback
- Switch position easily visible
- Variety of combinations including maintained and momentary action
- Very long service life for mechanical and electrical components
Keylock switch.
Access only for the authorised.
Series 71 keylock switches enable you to prevent accidental or unauthorised operations. You can also use them to issue the appropriate users with access authorisation.
Connecting the PCB and actuator is quick and easy and does not require mounting studs.
Series 71 offers a unique modular concept for modern PCB technologies. It also offers low back panel depths, rapid fitting, and easy maintenance.
Advantages
- Modular design
- Square, rectangular or round shape
- 2-positions or 3-positions
- Keylock switches with two keys each
- Standard DOM311 lock
Indicator.
Flexible and highly visible status indication.
Intuitive, flexible and easy to maintain: EAO's indicators are used worldwide where reliable visual feedback is required. Indicators can be used universally, and feature impressive, intuitive visualisation and a high quality of workmanship.
Typical functions
- Illumination in one or two colours
- Bright and homogenous illumination
- Wide range of standard symbols
- Customised symbols on request
- Optional lighting effects (flashing and dimming)
Advantages
- Large selection of lenses in different forms
- Wide range of colours for lenses and illumination
- Wide variety of symbols and markings, including customer-specific options
- Full-face, uniform and glare-free illumination
- Day/night design
- Multi-coloured illumination compatible
- Various lighting effects
Certificates and approvals Series 71.
Function groups.
Push button.
EAO introduced the first illuminated push button more than 60 years ago, revolutionising control units in the process. This EAO innovation is still the international industry standard today.
Indicator.
For intuitive and reliable status indication: EAO's indicators are the first choice for use in almost all machines. They offer you visible illuminated feedback everywhere you need it.
Keylock switch.
Your key for more safety: HMI keylock switch function group also offers you ID keylock switches and key-insert switches. They all prevent erroneous or unauthorised actuation on machines.
Selector switch.
Selector switches from EAO are ideal for use in your operating systems in mechanical engineering, in instrument panels, as well as in the driver’s cabs and cockpits of rail and road vehicles.Applications.
Rescue vehicles.
Rescue vehicles have to be regularly renewed or customised. EAO offers you flexible HMI Products and Solutions in this area, so that you are guaranteed to be able to do the best job in serious situations.
Fire-fighting vehicles.
Fire-fighting vehicles must be able to withstand the toughest conditions – particularly when it comes to outdoor operating systems for aerial ladders. EAO offers proven HMI Products and Solutions in this area.
Special transport.
Special transport often requires very individual adaptations. EAO offers flexible HMI Solutions in this area that meet all safety requirements.
Food & Beverages packaging.
EAO is the partner for effective HMIs in connection with your packaging plants for food and beverages. We enable you to achieve efficient operation and monitoring of your processes.
Semiconductors.
HMI Components and user-specific HMI Solutions from EAO offer measurable benefit in semiconductor and electronics production.
Special machine construction.
EAO HMIs for special-purpose machines advance your industrial automation. They enable you to operate and monitor your processes efficiently, safely and with measurable benefit.
Factory & automation technology.
There for you for everything to do with HMI Solutions: EAO is your expert partner for their use in connection with factory and automation technology. To ensure the best benefits from the connection between human and machine.
Energy.
There for you in the energy market and for everything to do with HMI Solutions: EAO is the expert to help you gain full benefit from the connection between human and machine.Online product configurator.
Quick and easy to your HMI device.
Select the desired HMI function as well as the product features. Fast, intuitive, and exactly the way you want it.
