Series 57.
Innovative, intuitive and reliable.

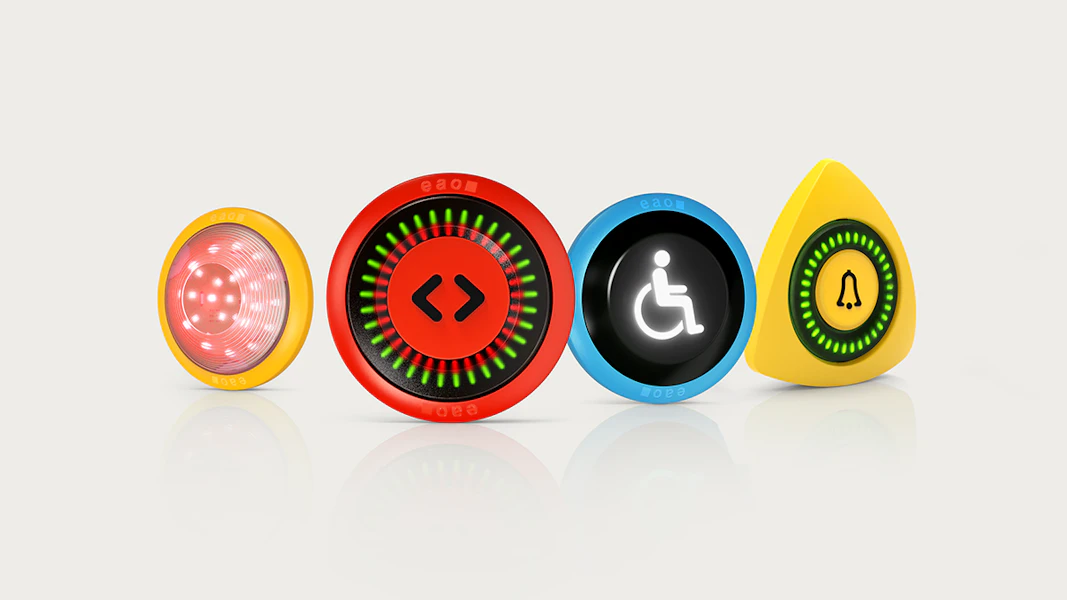

All-in-one door opening push buttons: the innovative Series 57 combines the latest technology with ergonomic design and an especially large operation area. Which means your passengers are even more comfortable.
The Series 57 can do this.
Amazingly intelligent buttons.
The new standard in public transport: Series 57 offers you visual, tactile and acoustic feedback from a single source. Combined with the optional detection tone, these actuators and indicators cover all needs. Versatile features make Series 57 the ideal solution for passenger access systems and toilet facilities in public transport.
Typical application areas
- Passenger access systems
- Passenger information systems
- Call for aid terminals
- Emergency call and help points
- Toilet facilities on trains and buses
- Lifting and moving systems
- Access control systems
Advantages
- First choice to fully comply with EN 14752
- User-friendly, extra-large, Ø 74 mm operating area
- Two unique, independently illuminated feedback rings
- Raised, illuminated symbols that conform to TSI PRM & ADA
- Robust, raised front ring prevents unintended activation
- Coherent look and feel of the entire Series 57
- Integrated finding tone for visually impaired persons
- High IP69K front protection
- Optional illumination functions
- High UV resistance
- Smart final mounting saves time and costs
Functions
- Indicator
- Door opening pushbutton
- Call for aid pushbutton
- Warning indicator
IP front protection
- IP69K
Mounting cut-outs
- Ø 42 mm
Terminal
- Cable with direct connection
Markings
- Milling
- Injection-moulded in plastic
Functions Series 57.
Door opening push button.
Standard for safety.
For maximum safety in public transport, you need intuitive and reliable operating elements. To this end, EAO is expanding Series 57 with the new door opening push button for mounting on glass, bringing you the new standard for door opening push buttons on public transport.
Whether front-mounted on door profiles, rear flush-mounted on side walls, or mounted one-sided or double-sided on glass, Series 57 offers you the right door opening push buttons for all applications. They are very user-friendly, as well as impressing with unique optical, tactile and acoustic feedback.
Typical applications
- Public transport: rail vehicles and buses
- Building access: electrical doors and lifts
Advantages
- Extra-large Ø 74 mm operation area
- Raised symbols conform to TSI PRM
- Integrated finding tone for visually impaired persons
- Two unique, independently illuminated feedback rings
- Coherent look and feel of the entire Series 57
Individual advice
EAO will be happy to advice you in connection with the entire Series 57 range, for optimum selection of the right products in accordance with your specifications.
Indicator.
For clear status displays.
Maximum safety in public transport requires intuitive signalling and the highest level of reliability. The new Series 57 indicators offer everything you need to achieve this.
Applications
- Public transport: train, tram, bus
- Access control systems
- Emergency call and help points
Series 57 indicators impress with intuitive visualisation and high processing quality. The modular structure is suitable for status indication on outdoor and indoor doors, in passenger spaces, and in toilets on public transport and in public buildings.
The indicators are based on the modern design of Series 57. The extra-large illuminated surface guarantees optimum visibility of written information and symbols, even from a significant distance. The indicators are available in single-colour and dual-colour illumination in the colours red, yellow, green, blue and white. Straightforward, tool-free final assembly saves you time and money, making the Series 57 the perfect choice for train, tram or bus new manufacturers and operators.
Advantages
- Customer-specific symbols
- Extra-large, high-visibility illuminated surface
- Illumination in one or two colours
- Bright and homogenous illumination
- High IP69K front protection
- Optional flashing or dimming effects
- High UV resistance
Call for aid push button.
Intuitive. Safe in hazardous situations.
Always on the safe side: the Series 57 call for aid push button with raised bell symbol is used to activate emergency or assistance systems on public transport and on call for aid terminals.
Typical applications
- Outdoor areas on trains, trams and buses
- Toilet facilities on public transport
- Call for aid terminals
The large operation area guarantees easy and reliable operation in any situation. The two illuminable feedback rings give optical feedback that the assistance call has been triggered. The front bezel made from anodised aluminium protects the button against damage and unintentional actuation. Thanks to IP69K front protection, the call for aid push button is suitable for use in outdoor areas and in toilet facilities. The button is based on the design and dimensions of the other products in Series 57.
The call for aid push button unites functionality and design and is the perfect choice for you as a train, tram and bus manufacturer or operator.
Advantages
- Extra-large operating area for easy and safe use
- Robust, raised front bezel made of anodised aluminium prevents unintended activation
- Two individually controlled feedback rings
- High IP69K front protection
- Ideal for outdoor use
Warning indicator.
Safety through signalling.
Ready at all times: in public transport applications, this warning indicator reliably draws attention to hazards, for example as an optical signalling device for automatically closing doors. When front-mounted, it is particularly well suited to use in outdoor areas.
Typical applications
- Status displays for passenger access
- Various passenger alarms and information
The warning indicator is based on the same design and same basic footprint as other Series 57 products. The very large light lens with LED illumination in red or yellow guarantees ideal visibility from all sides, including in extreme sunlight. For these reasons, this warning indicator is the perfect choice for you as a train, tram and bus manufacturer or operator. The materials meet the high EAO standards for quality, functional safety, lifecycle and design.
Advantages
- Extra-large illuminated surface
- Optimal visibility from all sides, even during strong direct sunlight
- High IP69K front protection
- Smart final mounting saves time and costs
- High UV resistance
Multi-tone warning indicator.
Compact, intuitive and safe.
Acoustic warning and LED status display combined in one compact device: EAO offers another innovative product with the new Series 57 Multi-Tone Warning Indicator (MTWI).
When opening and closing doors in public transport, safety comes first. This also includes accessible applications, whether for passenger access on trains, trams, bus or public emergency call and help points (call for aid). Users can rely on Series 57 acoustic and visual warning at all times and wherever they are.
Typical applications
- Passenger access to trains, trams and buses
- Emergency call and help points (call for aid)
- Access control systems
The MTWI brings together in one device two HMI Functions already well-established in the rail industry: the Series 56 multi-tone sound module and Series 57 visual warning indicators. The result offers increased safety on public transport, particularly for people with impaired vision.
Advantages
- Audible and visual warning in a single device
- A single cable for space and cost savings in mounting
- Modern, timeless design of Series 57
- Long service life and attractive total cost of ownership
- Intense 180° illumination
When opening the train door, (externally triggered) green LEDs light up or flash. At the same time the door opening signal sounds to provide acoustic signalisation. As soon as the door closes, the red LEDs light up (or flash) and the door closer signals can be clearly heard. Various LED colours and combinations are available in this regard. For emergency-call voice announcements, there is a version with a passive speaker module that you can connect to an external signal source with an amplifier.
The wide range of technical and economic advantages makes the MTWI the optimum device for users, systems providers for train doors, and operators in public transport.
Multi-legend display.
Flexible and clearly visible status display.
EAO’s intuitive indicators for public transport offer quickly identifiable and clearly recognisable symbols. This means that passengers can quickly see from a distance whether a toilet is available, occupied or out of service. This avoids unnecessary waiting and long periods spent searching for toilets. In the event of a fire, rapid recognisability of the alarm pictogram is particularly important, and passengers benefit from this as well as many other notification applications.
Typical applications
- Toilet facilities in trains, on coaches and in public environments
- Various functions for informing and alerting passengers
- Passenger access status indicators
The Series 57 Multi-Legend Display fulfils all requirements for public transport in terms of intuitive operation, flexibility, ease of maintenance, and relevant standards.
Advantages
- Up to 18 customisable symbols per display
- Excellent visibility and wide viewing angle
- Environmentally adaptive sensor for display brightness
- Modern design with low back panel depth
- Complies with relevant standards
Programmer kit
Display symbols with a resolution of 432 x 432 pixels are possible and can be configured on the device using the programming kit.
The Series 57 Multi-Legend Display is the ideal choice for manufacturers of trains, train doors, and toilet systems in public spaces, because the intuitive indicator is flexible and clearly visible at all times.
