Assembly settings
Product range
Immediately available
No
no
choose ...
Front
Colour
Black
Black
choose ...
Front form
Square
Square
choose ...
Front bezel colour
Black
Black
choose ...
Front bezel material
Plastic, according to UL 94 V0
Plastic, according to UL 94 V0
choose ...
Front dimension
24 mm x 24 mm
24 mm x 24 mm
choose ...
Mounting
Design
Flush
Flush
choose ...
Mounting type
Panel mounting
Panel mounting
choose ...
Mounting cut-out
21 mm x 21 mm
21 mm x 21 mm
choose ...
Operating-/Indication part
Lens colour
Black
Black
choose ...
Lens illumination
Non illuminated
Non illuminated
choose ...
Electrical characteristics
Contacts configuration
1 NC + 1 NO
1 NC + 1 NO
choose ...
Switching rating
250 V @ 3 A
250 V @ 3 A
choose ...
Mechanical Characteristics
Terminal
PCB terminal
PCB terminal
choose ...
Switching positions
2 positions
2 positions
choose ...
Switching system
Snap-action switching element
Snap-action switching element
choose ...
Contact material
Gold
Gold
choose ...
Switching action
Rest (a) - Momentary
Rest (a) - Momentary
choose ...
Switching angle
42° right
42° right
choose ...
Ambient Condition
IP front protection
IP65
IP65
choose ...
Other
Material
Plastic
Plastic
choose ...
Back
Keylock switch, Series 71, 24 mm x 24 mm, Flush, 1 NC + 1 NO, PCB terminal
- 61-9220.0
- 71-621.0/D
- 61-9930.0
- 71-671.026
- Front form
- Switching angle
- Switching positions
- Switching action
- Front dimension
- Front form
- Front bezel colour
- Front bezel material
- Mounting cut-out
- Switching positions
- Contacts configuration
Add Accessories & Tools
Your product:
Product range
- HMI function:
- Keylock switch
- Series:
- Series 71
Front
- Front dimension:
- 24 mm x 24 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic, according to UL 94 V0
- Colour:
- Black
Mounting
- Design:
- Flush
- Mounting cut-out:
- 21 mm x 21 mm
- Mounting type:
- Panel mounting
Operating-/Indication part
- Lens colour:
- Black
- Lens illumination:
- Non illuminated
Electrical characteristics
- Switching voltage and switching current:
Switch rating AC cosφ 0,7 … 0,8
gemäss EN IEC 60947-5-1
Voltage
250 VAC
Current
3 A
Switch rating DC
gemäss EN IEC 60947-5-1
Voltage
24 VDC
250 VDC
Current
3 A
0.5 A
- Contacts configuration:
- 1 NC + 1 NO
- Switching rating:
- 250 V @ 3 A
Mechanical Characteristics
- Terminal:
- PCB terminal
- Contact material:
- Gold
- Switching action:
- Rest (a) - Momentary
- Switching system:
- Snap-action switching element
- Switching positions:
- 2 positions
- Switching angle:
- 42° right
- Tightening torque:
- Fixing nut max. 0.5 Nm
- Total weight:
- 0.035 kg
Ambient Condition
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Other
- Material:
- Plastic
- Housing material:
- Plastic, according to UL 94 V0
- Product attributes:
- Standard lock: DOM 311
- max. number of switching elements:
- 1
- Wiring diagrams:
Share and save this product
Download files
Add to Cart
Your product consists of the following 4 COMPONENTS:
Front
- Front form:
- Square
- Colour:
- Black
Operating-/Indication part
- Lens colour:
- Black
- Lens illumination:
- Non illuminated
Mechanical Characteristics
- Weight:
- 0.001 kg
Certificate
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Other
- Short Description:
- Keylock front bezel, 18 mm x 18 mm, Non illuminated, Black
- Dimension:
- 18 mm x 18 mm
- Material:
- Plastic
Download files
Where to buy
Add to Cart
Mounting
- Mounting type:
- Panel mounting
Electrical characteristics
- Switching voltage and switching current:
Switch rating AC cosφ 0,7 … 0,8
gemäss EN IEC 60947-5-1
Voltage
250 VAC
Current
3 A
Switch rating DC
gemäss EN IEC 60947-5-1
Voltage
24 VDC
250 VDC
Current
3 A
0.5 A
- Surge voltage resistance:
- 2500 VAC, 50 Hz, 1 minute, as per DIN / IEC 60512-2 between all terminals and earth
- Recommended minimum operational data:
Voltage
5 VAC/DC
Current
10 mA
Mechanical Characteristics
- Switching action:
- Rest (a) - Momentary
- Switching system:
- Self-cleaning, double-break snap action switching system, 1 normally closed and 1 normally open contact per element.
- Switching positions:
- 2 positions
- Switching angle:
- 42° right
- Mechanical lifetime:
- 50 000 cycles of operation
- Tightening torque:
- Fixing nut max. 0.5 Nm
- Weight:
- 0.011 kg
Ambient Condition
- IP Protection:
- IP65 front side
- Operating temperature:
- – 25 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 500 m/s², pulse width, 3-axis (sinusoidal EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78
Certificate
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Other
- Short Description:
- Actuator, Rest (a) - Momentary
- Housing material:
- Plastic, according to UL 94 V0
- Product attributes:
- Standard lock: DOM 311
- Hints:
- Standard lock: DOM 311
- Switching positions:
- Wiring diagrams:

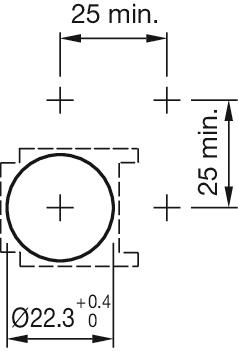

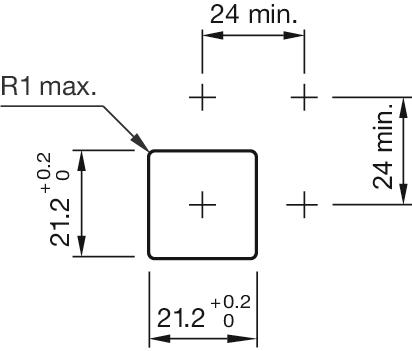

- Mounting cut-outs:

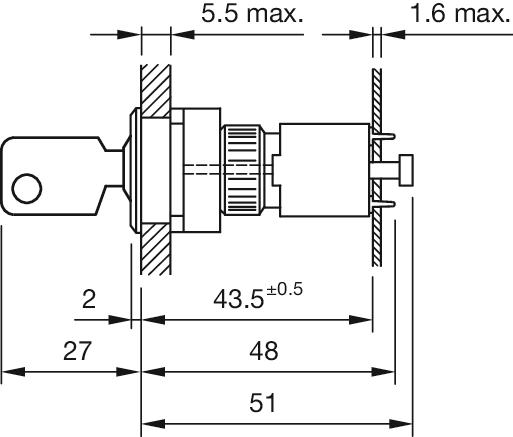

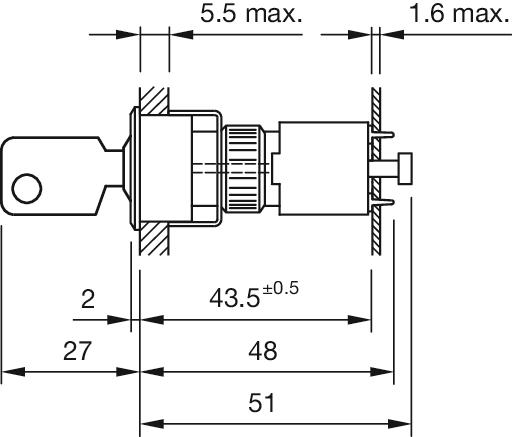

- Dimension drawings:
Download files
Where to buy
Add to Cart
Front
- Front dimension:
- 24 mm x 24 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic, according to UL 94 V0
Mounting
- Mounting cut-out:
- 21 mm x 21 mm
- Mounting type:
- Panel mounting
Mechanical Characteristics
- Weight:
- 0.003 kg
Certificate
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Other
- Short Description:
- Front bezel set, 24 mm x 24 mm, 18 mm x 18 mm, Black, Plastic, according to UL 94 V0
- Dimension:
- 24 mm x 24 mm
- Internal size:
- 18 mm x 18 mm
- Product attributes:
- For indicator illuminated pushbutton and keylock switch

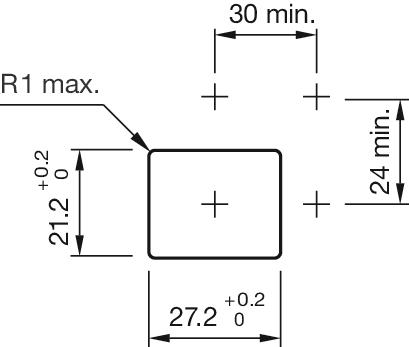

- Mounting cut-outs:
Download files
Where to buy
Add to Cart
Electrical characteristics
- Contacts:
- 1 NC / 1 NO
- Switching rating:
- 250 V @ 3 A
Mechanical Characteristics
- Terminal:
- PCB terminal
- Contact material:
- Gold
- Switching system:
- Snap-action switching element
- Switching positions:
- 2 positions
- Weight:
- 0.006 kg
Certificate
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Other
- Short Description:
- Switching element, Snap-action switching element, 250 V @ 3 A, Gold, 1 NC / 1 NO, PCB terminal
- Housing material:
- Plastic, according to UL 94 V0
- Product attributes:
- Including locking pin
- Hints:
- Including locking pin
- Wiring diagrams:
- Component layouts:
A = Terminals (rear side)
B = Drilling plan (component side)
C = non-metallic
D = Cu-Pad
E = Occupancy plan (component side)
F = 1. Switch
G = Switching element 2 Normaly close + 2 Normaly open, Part No. 71-672.026
H = 2. Switches
I = Switching element 1 Normaly close + 1 Normaly open, Part No. 71-671.026
J = Illumination element, Part No. 71-670.026
K = X1 Lamp cathode (-)
L = X2 Lamp anode (+)
M = 1-2 Contact normally closed
N = 3-4 Contact normally open
O = 5 Hole for interlocking pin
P = Front dimension min.
Q = Position interlocking pin
R = Note:
Pitch of the print circuit board hole Ø3.5 must agree with the mounting holes on the front plate
S = Slot in actuator
