Keylock Switch
https://www.eao.com/p/182215f9

Keylock switch, Series 61, 24 mm x 24 mm, Flush, 2 NO, Plug-in terminal, 2.8 x 0.5 mm

  • 61-9220.0
  • 61-2201.0/D
  • 61-9930.0
  • 61-8420.22

  • Front form
61-9220.0
  • Switching action
  • Switching positions
  • Switching angle
61-2201.0/D
  • Front dimension
  • Front form
  • Front bezel colour
  • Mounting cut-out
61-9930.0
  • Terminal
  • Contact material
  • Switching positions
  • Switching system
  • Switching rating
  • Contacts configuration
61-8420.22
Add Accessories & Tools
Add to compare
Add to Cart
Your product:
61-9220.0
61-2201.0/D
61-9930.0
61-8420.22

61-9220.0~61-2201.0/D~61-8420.22~61-9930.0

Keylock switch, Series 61, 24 mm x 24 mm, Flush, 2 NO, Plug-in terminal, 2.8 x 0.5 mm

Product range
HMI function:
Keylock switch
Series:
Series 61
Front
Front dimension:
24 mm x 24 mm
Front form:
Square
Front bezel colour:
Black
Front bezel material:
Plastic, according to UL 94 V0
Colour:
Black
Mounting
Design:
Flush
Mounting cut-out:
21 mm x 21 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Black
Lens illumination:
Non illuminated
Electrical characteristics
Switching voltage and switching current:

Switch rating AC with silver contact or silver contact with gold

plating

Service category AC-15

according to EN IEC 60947-5-1

Voltage

125 VAC

250 VAC

Current

2.5 A

2 A

Switch rating DC with silver contact or silver contact with gold

plating

Service category DC-13

according to EN IEC 60947-5-1

Voltage

250 VDC

Current

0.15 A
Contacts configuration:
2 NO
Switching rating:
250 V AC/DC @ 5 A
Electrical lifetime:
≥50 000 cycles of operation at 250VAC, 2A, cosφ 0.95,
Thermal current Ith:
5 A
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching action:
Rest (a) - Maintained
Switching system:
Snap-action switching element
Switching positions:
2 positions
Switching angle:
90° right
Tightening torque:
Max. 0.5 Nm
Total weight:
0.021 kg
Ambient Condition
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Other
Material:
Plastic
Housing material:
Plastic, according to UL 94 V0, self-extinguishing
Product attributes:
Standard lock: DOM 311
max. number of switching elements:
1
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Share and save this product
Download files
Add to Cart
Your product consists of the following 4 COMPONENTS:
61-9220.0

61-9220.0

Keylock front bezel

Front
Front form:
Square
Colour:
Black
Operating-/Indication part
Lens colour:
Black
Lens illumination:
Non illuminated
Mechanical Characteristics
Weight:
0.001 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Keylock front bezel, 18 mm x 18 mm, Non illuminated, Black
Dimension:
18 mm x 18 mm
Material:
Plastic
Download files
Where to buy
Add to Cart
61-2201.0/D

61-2201.0/D

Actuator

Mounting
Mounting type:
Panel mounting
Electrical characteristics
Electrostatic discharge (ESD):
11 kV
Mechanical Characteristics
Switching action:
Rest (a) - Maintained
Switching positions:
2 positions
Switching angle:
90° right
Mechanical lifetime:
According to DIN/IEC 60512-5-6 and EN/IEC 60947-5-1, 50 000 cycles of operation
Operating force:
0.025…0.1 Nm snap-action switching element, 0.4 … 0.16 Nm slow-make switching element
Operating Travel:
ca. 90°
Tightening torque:
Max. 0.5 Nm
Weight:
0.014 kg
Ambient Condition
IP Protection:
IP40 rear side, according to EN IEC 60529, IP67 front side, according to EN IEC 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Rest (a) - Maintained
Housing material:
Plastic, according to UL 94 V0, self-extinguishing
Product attributes:
Standard lock: DOM 311
Switching positions:
Switching positions
Wiring diagrams:
Wiring diagrams

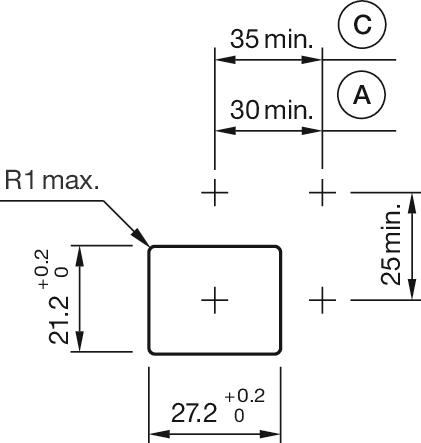

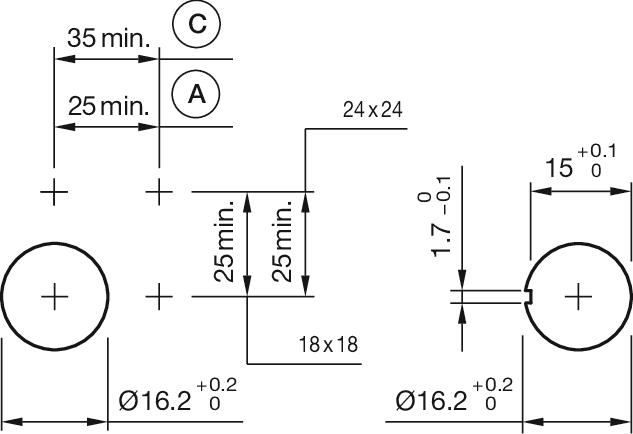

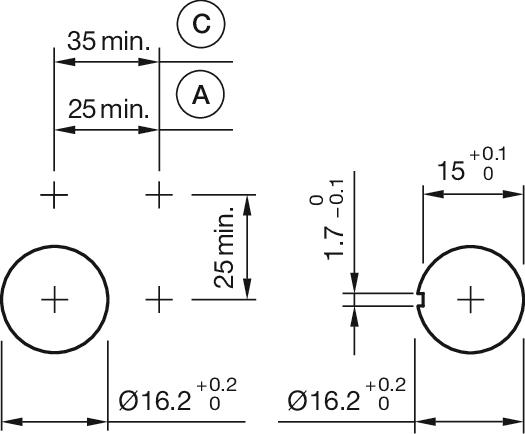

Mounting cut-outs:
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
Mounting cut-outs
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal

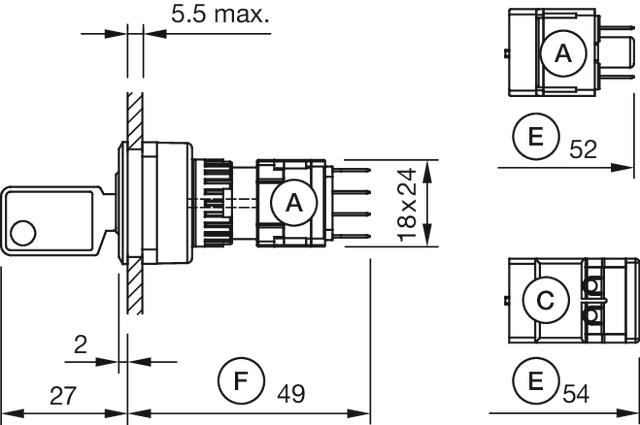

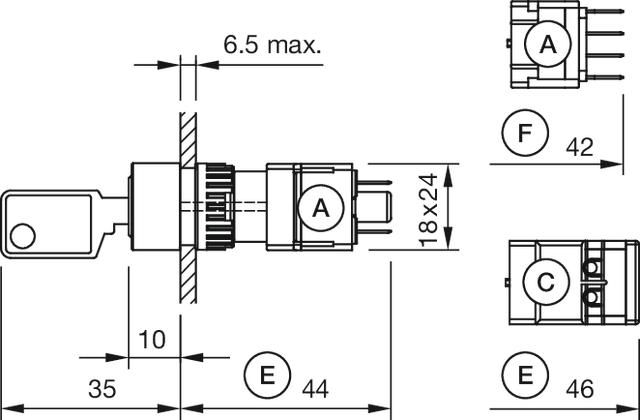

Dimension drawings:
Dimension drawings
A = Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
E = Slow-make switching element
F = Snap-action switching element
Dimension drawings
A = Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
E = Slow-make switching element
F = Snap-action switching element
Dimension drawings
A = Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal
E = Slow-make switching element
F = Snap-action switching element
Download files
Where to buy
Add to Cart
61-9930.0

61-9930.0

Front bezel set

Front
Front dimension:
24 mm x 24 mm
Front form:
Square
Front bezel colour:
Black
Front bezel material:
Plastic, according to UL 94 V0
Mounting
Mounting cut-out:
21 mm x 21 mm
Mounting type:
Panel mounting
Mechanical Characteristics
Weight:
0.003 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Front bezel set, 24 mm x 24 mm, 18 mm x 18 mm, Black, Plastic, according to UL 94 V0
Dimension:
24 mm x 24 mm
Internal size:
18 mm x 18 mm
Product attributes:
For indicator illuminated pushbutton and keylock switch

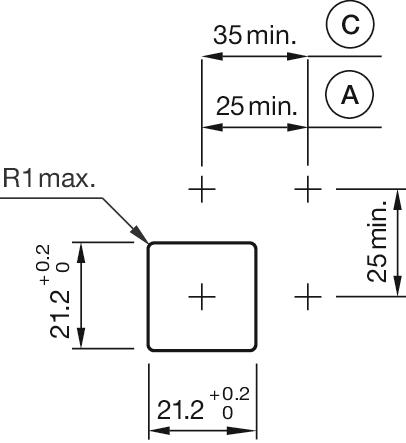

Mounting cut-outs:
Mounting cut-outs
Download files
Where to buy
Add to Cart
61-8420.22

61-8420.22

Switching element

Electrical characteristics
Switching voltage and switching current:

Switch rating AC with silver contact or silver contact with gold

plating

Service category AC-15

according to EN IEC 60947-5-1

Voltage

125 VAC

250 VAC

Current

2.5 A

2 A

Switch rating DC with silver contact or silver contact with gold

plating

Service category DC-13

according to EN IEC 60947-5-1

Voltage

250 VDC

Current

0.15 A
Contacts:
2 NO
Rated Operational Voltage Ue:
250 VAC/DC according to EN IEC 60947-1
Rated impulse withstand voltage Uimp:
4 kV, according to EN/IEC 60947-5-1
Rated insulation voltage Ui:
320 VAC, according to EN / IEC 60947-5-1
Recommended minimum operational data:

Voltage

5 VAC/DC

Current

10 mA
Switching rating:
250 V AC/DC @ 5 A
Electrical lifetime:
≥50 000 cycles of operation at 250VAC, 2A, cosφ 0.95,
Electric strength:
2500 VAC, 50 Hz, 1 minute, as per DIN / IEC 60512-2 between all terminals and earth
Overvoltage category:
III, according to EN / IEC 60947-5-1
Pollution degree:
2, according to EN IEC 60947-1
Protection class:
II, according to EN / IEC 61058-1
Standards:
The switches comply with the “Standards for low-voltage switching devices” EN IEC 61058-1, EN IEC 60947-5-1
Thermal current Ith:
5 A
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching system:
Snap-action switching element
Switching system:
Self-cleaning, double-break snap-action switching system with contact opening width 2mm x 0.5mm (switch with small contact opening width as per EN IEC 61058-1).
The switching elements are optionally equipped with the following switching functions: One to three normally open (NO) or normally closed (NC), or any combination of NO and NC plus connections for T1 3/4 LED or lamp.
The number of switching elements cannot exceed three. The switching elements provided for the 3-position switch actua tors are equipped with max. 2 NC or 2 NO or any combination. The number of switching elements cannot exceed two.
Switching positions:
2 positions
Wire cross section:
1 wire flexible: 0.5 … 0.75 mm²
1 wire super flexible: 0.5 mm²
1 wire rigid: 0.5 … 1.5 mm²
2 wires rigid: 0.75 mm²
2 wires flexible: 0.5 mm²
Weight:
0.006 kg
Ambient Condition
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
Max. 100 m / s², pulse width, 3-axis (sinusoidal EN IEC 60068-2-27)
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Climate resistance:
Damp heat, cyclic: 96 hours, + 25 °C/97 %, + 55 °C/93 % relative humidity, as per EN IEC 60068-2-30
Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78
Rapid change of temperature: 100 cycles, – 40 °C … + 80 °C, as per EN / IEC 60068-2-14
Certificate
Approbations:
CB (IEC 61058-1), CQC, CSA, DNV, ENEC (EN 61058-1), UL, VDE
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Switching element, Snap-action switching element, 250 V AC/DC @ 5 A, Gold, 2 NO, Plug-in terminal, 2.8 x 0.5 mm
Material:
Plastic, according to UL 94 V0
Hints:
With lamp terminal
Wiring diagrams:
Wiring diagrams
Component layouts:
Component layouts
Download files
Where to buy
Add to Cart
Cookie consent
Our website uses cookies. For more information about cookies on this website, please see our Privacy Policy and learn more about us in the Legal Notice. You may change the setting in the Privacy Policy.
Accept all
Reject non-required
Manage Settings
