Keylock switch, Series 22, 36 mm x 24 mm, Flush, 1 NC + 1 NO, Screw terminal
- 22-335.511D
- Switching angle
- Terminal
- Switching action
- Contacts configuration
Add Accessories & Tools
Your product:
Product range
- HMI function:
- Keylock switch
- Series:
- Series 22
Front
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Mounting
- Design:
- Flush
- Mounting cut-out:
- 22 mm x 30 mm
- Mounting type:
- Panel mounting
Electrical characteristics
- Switching voltage and switching current:
400 VAC, 10 A (ohmic)
400 VAC, 4 A (inductive, cos(phi) = 0.7)
250 VAC, 5 A (inductive, cos(phi) = 0.7)
125 VAC, 8 A (inductive, cos(phi) = 0.7)
110 VDC, 0.4 A (inductive, L:R = 30 ms)
60 VDC, 1.5 A (inductive, L:R = 30 ms)
24 VDC, 6 A (inductive, L:R = 30 ms)
- Contacts configuration:
- 1 NC + 1 NO
- Switching rating:
- 400 V @ 10 A
- Electrical lifetime:
- 50 000 cycles of operation
Mechanical Characteristics
- Terminal:
- Screw terminal
- Contact material:
- Silver
- Switching action:
- Rest (a) - Maintained (a)
- Switching system:
- Snap-action switching element
- Switching positions:
- 2 positions
- Switching angle:
- 90° right
- Total weight:
- 0.051 kg
Ambient Condition
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C
- Vibration resistance:
- 10 g at 10 Hz…2000 Hz, amplitude 0.75 mm (Sinusoidal), according to DIN EN 60512-4-4
Other
- Product attributes:
- Standard lock: DOM 311
- Wiring diagrams:
Share and save this product
Download files
Add to Cart
Your product consists of the following 1 COMPONENTS:
Front
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Mounting
- Design:
- Flush
- Mounting cut-out:
- 22 mm x 30 mm
- Mounting type:
- Panel mounting
Electrical characteristics
- Switching voltage and switching current:
400 VAC, 10 A (ohmic)
400 VAC, 4 A (inductive, cos(phi) = 0.7)
250 VAC, 5 A (inductive, cos(phi) = 0.7)
125 VAC, 8 A (inductive, cos(phi) = 0.7)
110 VDC, 0.4 A (inductive, L:R = 30 ms)
60 VDC, 1.5 A (inductive, L:R = 30 ms)
24 VDC, 6 A (inductive, L:R = 30 ms)
- Contacts:
- 1 NC / 1 NO
- Switching rating:
- 400 V @ 10 A
- Electrical lifetime:
- 50 000 cycles of operation
- Electric strength:
- 2000 VAC, 50 Hz, 1 minute, as per IEC 60512-2-11 between all terminals and earth
Mechanical Characteristics
- Terminal:
- Screw terminal
- Contact material:
- Silver
- Switching action:
- Rest (a) - Maintained (a)
- Switching system:
- Snap-action switching element
- Switching system:
- Self-cleaning, double-break snap action switching system (contact opening width 2 mm x 1.5 mm).Max. 2 normally closed or 2 normally open contacts, or one of each
- Switching positions:
- 2 positions
- Switching angle:
- 90° right
- Mechanical lifetime:
- 40 000 cycles of operation
- Operating force:
- 4.4 N ±1 N (1 switching element), 7.8 N ±1 N (2 switching element)
- Operating Travel:
- 5.5 mm ± 0.5 mm
- Travel:
- > 3 mm
- Terminal details 1:
- Max. wire cross-section 2 mm x 2.5 mm²Max. wire cross-section of stranded cable 2 x 1.5 mm²
- Weight:
- 0.051 kg
Ambient Condition
- IP Protection:
- IP20 rear side, IP65 front side, according to IEC 60529
- Operating temperature:
- – 25 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 95 °C
- Shock resistance:
- 50 g for 11 ms, according to IEC 60512-4-3
- Vibration resistance:
- 10 g at 10 Hz…2000 Hz, amplitude 0.75 mm (Sinusoidal), according to DIN EN 60512-4-4
Certificate
- Approbations:
- CB (IEC 61058-1), CSA, EAC, ENEC (EN 61058-1), UL
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Other
- Short Description:
- Actuator, 22 mm x 30 mm, 36 mm x 24 mm, Rectangular, Black, Plastic, 1 NC / 1 NO, Rest (a) - Maintained (a), Screw terminal
- Product attributes:
- Standard lock: DOM 311
- Hints:
- Standard lock: DOM 311
- Switching positions:

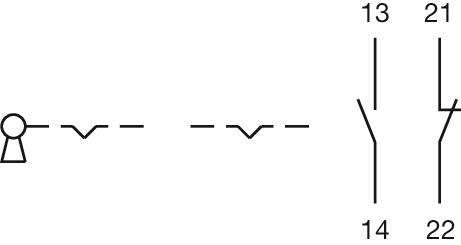

- Wiring diagrams:

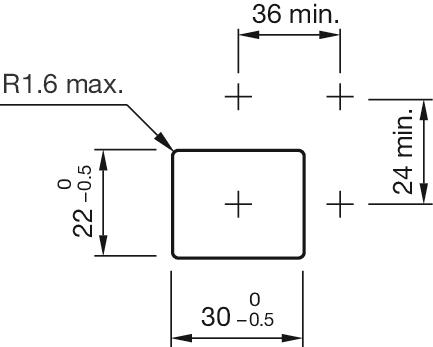

- Mounting cut-outs:

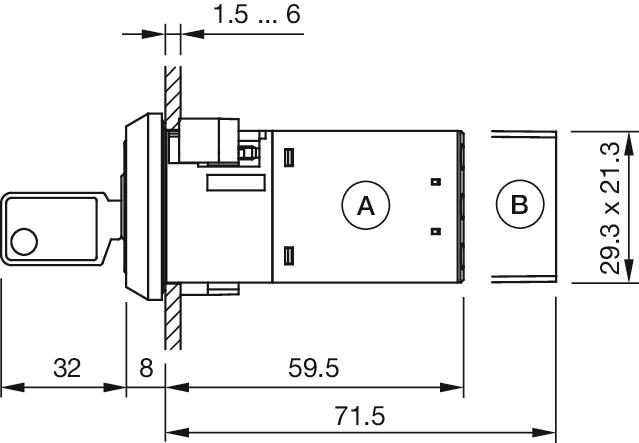

- Dimension drawings:
A = Screw terminal
