View detailed product overview
https://www.eao.com/component/704.970.3/en/la...

Lamp transformer 115/24 V

  • 704.970.3

704.970.3 Lamp transformer 115/24 V, Screw terminal, Panel mounting
704.970.3
Add to Cart
Your product:
704.970.3

704.970.3

Lamp transformer 115/24 V

Mounting
Mounting type:
Panel mounting
Mechanical Characteristics
Terminal:
Screw terminal
Weight:
0.029 kg
Other
Short Description:
Lamp transformer 115/24 V, Screw terminal, Panel mounting
Titel Accessory:
Lamp transformer 115/24 V
Housing material:
Plastic
Hints:
Lamp voltage/-current 24 VAC, 50 mA, 50/60 Hz

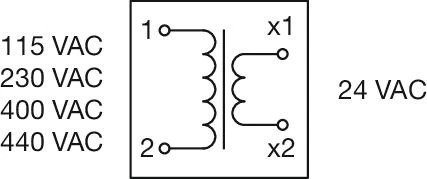

Wiring diagrams:
Wiring diagrams

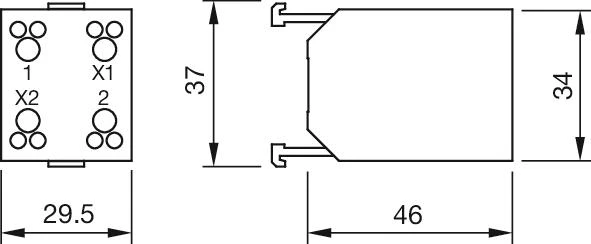

Dimension drawings:
Dimension drawings
