Push button, connector M12, Ø 22 mm, stainless steel 316L

  • 82-6657.2000

82-6657.2000 Push button, connector M12, Ø 22 mm, stainless steel 316L, Maintained, 35 V AC/DC @ 0,6 A, Connector M12 (5 pins), Round, Stainless steel 316L, Silver
82-6657.2000
Add to Cart
Your product:
82-6657.2000

82-6657.2000

Push button, connector M12, Ø 22 mm, stainless steel 316L

Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel material:
Stainless steel 316L
Front bezel shape:
Flush
Mounting
Mounting cut-out:
Ø 22 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Silver
Lens material:
Stainless steel 316L
Lens illumination:
Non illuminated
Lens shape:
Flush
Lens optics:
opaque
Electrical characteristics
Switching voltage and switching current:

according to UL 508 (Silver contacts)

cosφ 0,75 … 0,8

Voltage

Current

120 VAC

5 A

240 VAC

3 A

24 VAC

1 A

according to IEC 60947-5-1 (Silver contacts)

Service categorie AC-15

Voltage

Current

24 VAC

1 A

35 VAC

1 A (M12 version)

110 VAC

1 A

220 VAC

0.5 A

Switch rating DC service categorie DC-13 (Silver contacts)

Voltage

Current

24 VDC

0.7 A

35 VDC

0.5 A (M12 version)

110 VDC

0.2 A

220 VDC

0.1 A
Rated Operational Voltage Ue:
250 VAC
Rated insulation voltage Ui:
250 V
Switching rating:
35 V AC/DC @ 0,6 A
Electrical lifetime:
50 000 cycles of operation
Electric strength:
1500 VAC, 50 Hz 1 minute between life terminals and ground
Pollution degree:
2, according to EN IEC 60947-1
Thermal current Ith:
5 A
Mechanical Characteristics
Terminal:
Connector M12 (5 pins)
Switching action:
Maintained
Switching system:
Snap-action switching element
Mechanical lifetime:
500 000 cycles of operation
Operating force:
4 N … 7 N
Operating Travel:
ca. 3 mm
Tightening torque:
0.5 … 0.6 Nm
Weight:
0.043 kg
Ambient Condition
IP front protection:
IP65, IP67
Operating temperature:
– 30 °C … + 70 °C
Storage temperature:
– 40 °C … + 80 °C
Shock resistance:
Max. 500 m / s² as per IEC 60068-2-27
Vibration resistance:
10 … 500 Hz, amplitude 1.5 mm p-p according to IEC 60068-2-6
Climate resistance:
Damp heat, 21 days according to IEC 60512-11
Certificate
Conformities:
CE, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Push button, connector M12, Ø 22 mm, stainless steel 316L, Maintained, 35 V AC/DC @ 0,6 A, Connector M12 (5 pins), Round, Stainless steel 316L, Silver
Housing size:
19 mm
Wiring diagrams:
Wiring diagrams
Component layouts:
Component layouts
1 = NC
2 = LED+
3 = Common
4 = LED-
5 = NO
A-Coded

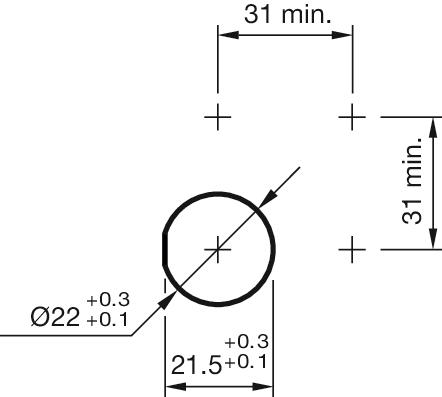

Mounting cut-outs:
Mounting cut-outs

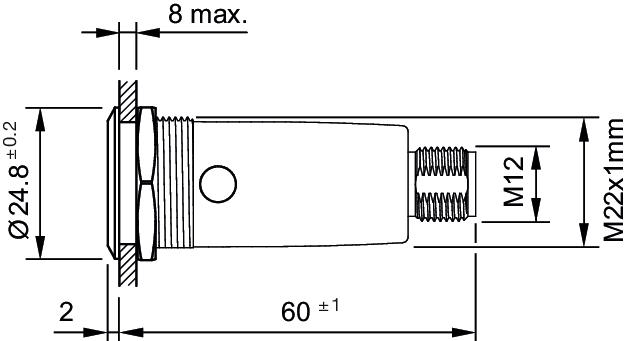

Dimension drawings:
Dimension drawings
Download files
Add to Cart
