View detailed product overview
https://www.eao.com/component/46-580.1H22/en/...

Illumination element, 240 V

  • 46-580.1H22

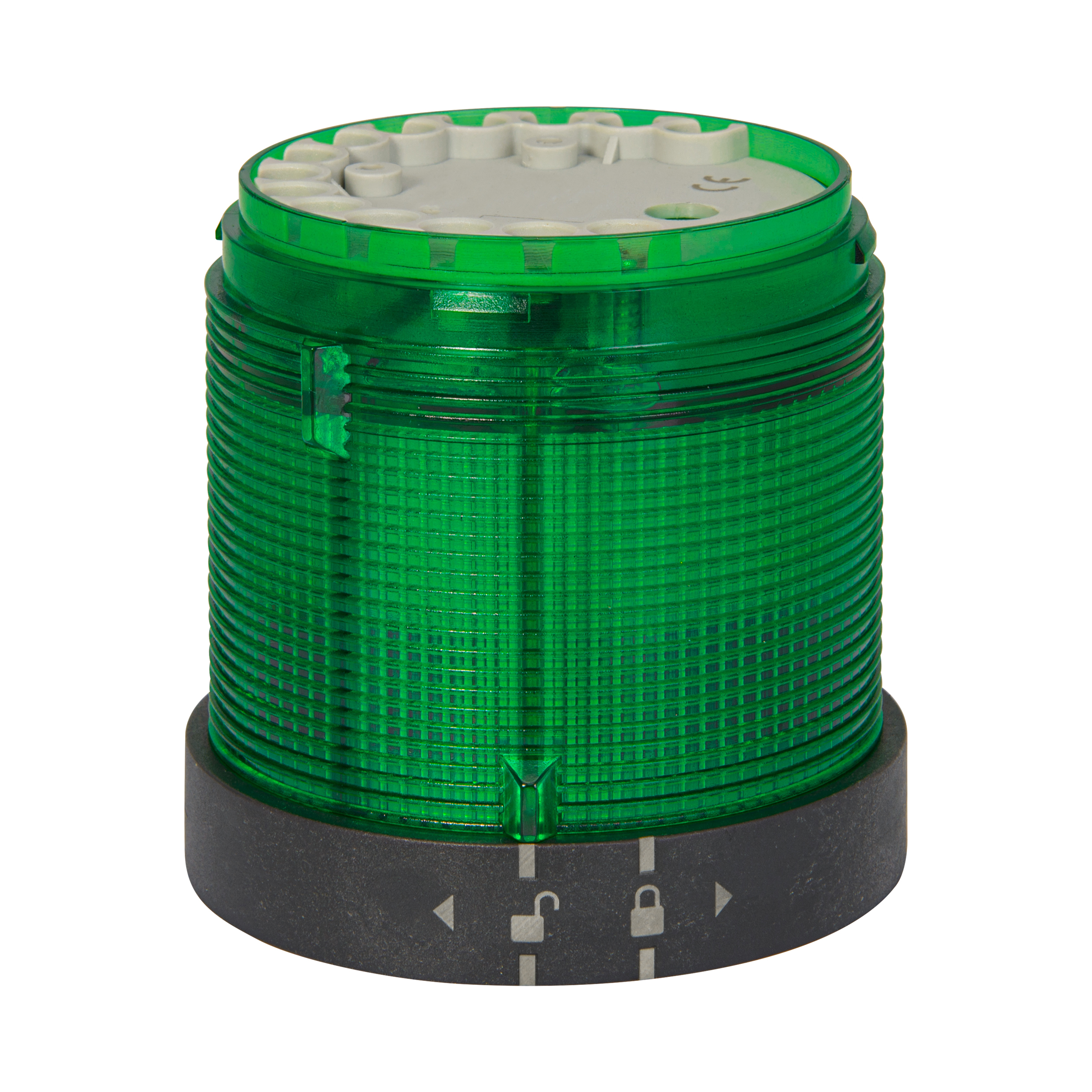

46-580.1H22 Illumination element, 240 V, Ø 75 mm x 75 mm, Panel mounting, 240 V AC -20% / +10%
46-580.1H22
Add to Cart
Your product:
46-580.1H22

46-580.1H22

Illumination element, 240 V

Mounting
Mounting type:
Panel mounting
Operating-/Indication part
Illumination colour:
Green
Electrical characteristics
Operating voltage:
240 V AC -20% / +10%
Protection class:
II, according to EN / IEC 61140
Mechanical Characteristics
Weight:
0.147 kg
Ambient Condition
IP front protection:
IP44
IK front protection:
IK07
Operating temperature:
– 25 °C … + 65 °C
Certificate
Conformities:
CE
Standards:
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, IEC EN 60947-1, IEC EN 60947-5-1, IEC EN 62471
Other
Short Description:
Illumination element, 240 V, Ø 75 mm x 75 mm, Panel mounting, 240 V AC -20% / +10%
Titel Accessory:
Illumination element, 240 V
Dimension:
Ø 75 mm x 75 mm
Housing material:
Plastic
Product attributes:
For Signal Light Tower
