Actuator

  • 22-211.011

22-211.011 Actuator, 22 mm x 30 mm, 36 mm x 24 mm, Optional illuminated, Rectangular, Black, Plastic, 1 NO, Momentary, Screw terminal
22-211.011
Add to Cart
Your product:
22-211.011

22-211.011

Actuator

Front
Front dimension:
36 mm x 24 mm
Front form:
Rectangular
Front bezel colour:
Black
Front bezel material:
Plastic
Mounting
Design:
Flush
Mounting cut-out:
22 mm x 30 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens illumination:
Optional illuminated
Electrical characteristics
Switching voltage and switching current:

400 VAC, 10 A (ohmic)

400 VAC, 4 A (inductive, cos(phi) = 0.7)

250 VAC, 5 A (inductive, cos(phi) = 0.7)

125 VAC, 8 A (inductive, cos(phi) = 0.7)

110 VDC, 0.4 A (inductive, L:R = 30 ms)

60 VDC, 1.5 A (inductive, L:R = 30 ms)

24 VDC, 6 A (inductive, L:R = 30 ms)
Contacts:
1 NO
Rated insulation voltage Ui:
400 VAC/440 VDC according toIEC 60947-5-1
Switching rating:
400 V @ 10 A
Electrical lifetime:
50 000 cycles of operation
Electric strength:
2000 VAC, 50 Hz, 1 minute, as per IEC 60512-2-11 between all terminals and earth
Standards:
The switches comply with the “Standards for low-voltage switching devices” EN IEC 60947-5-1
Thermal current Ith:
10 A
Mechanical Characteristics
Terminal:
Screw terminal
Contact material:
Silver
Switching action:
Momentary
Switching system:
Snap-action switching element
Switching system:
Self-cleaning, double-break snap action switching system (contact opening width 2 mm x 1.5 mm).
Max. 2 normally closed or 2 normally open contacts, or one of each
Mechanical lifetime:
1 Mil. cycles of operation
Operating force:
4.4 N ±1 N (1 switching element), 7.8 N ±1 N (2 switching element)
Operating Travel:
5.5 mm ± 0.5 mm
Travel:
> 3 mm
Tightening torque:
Fixing nut max. 0.2 Nm, Screw terminal 0.8 Nm
Terminal details 1:
Max. wire cross-section 2 mm x 2.5 mm²
Max. wire cross-section of stranded cable 2 x 1.5 mm²
Weight:
0.04 kg
Ambient Condition
IP Protection:
IP20 rear side, IP65 front side, according to IEC 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 95 °C
Shock resistance:
50 g for 11 ms, according to IEC 60512-4-3
Vibration resistance:
10 g at 10 Hz…2000 Hz, amplitude 0.75 mm (Sinusoidal), according to DIN EN 60512-4-4
Certificate
Approbations:
CB (IEC 61058-1), CSA, EAC, ENEC (EN 61058-1), UL
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, 22 mm x 30 mm, 36 mm x 24 mm, Optional illuminated, Rectangular, Black, Plastic, 1 NO, Momentary, Screw terminal
Housing colour:
Black
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams
Mounting cut-outs:
Mounting cut-outs

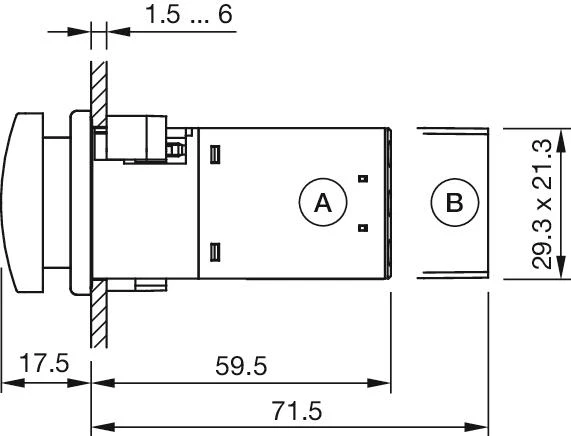

Dimension drawings:
Dimension drawings
A = Screw terminal
B = Plug-in terminal 6.3 mm x 0.8 mm

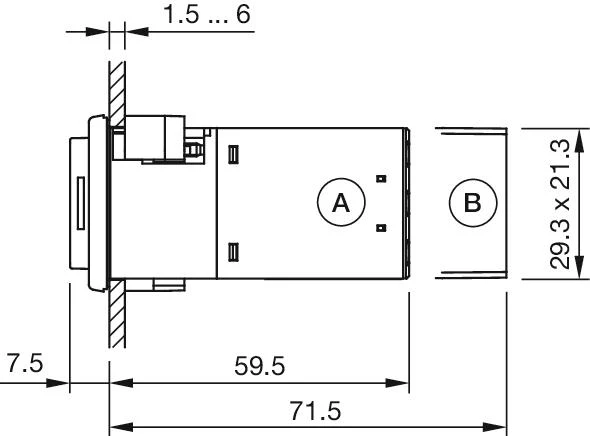

Dimension drawings
A = Screw terminal
B = Plug-in terminal 6.3 mm x 0.8 mm
