Push button
https://www.eao.com/p/fff7515e

Illuminated push button, Series 14, Ø 35 mm, illuminative, Flush, 1 NC + 1 NO, Gold, IP67, Plug-in terminal, 2.8 x 0.5 mm

  • 704.601.01
  • 704.609.7
  • 14-271.022
  • 14-955.1
  • 10-2119.1044

  • Lens material
  • Marking plate illumination
  • Lens colour
  • Shape of illumination
704.601.01
  • Marking plate colour
  • Marking plate illumination
  • Marking plate optics
704.609.7
  • Terminal
  • Switching action
  • Switching system
  • Switching rating
  • Contacts configuration
14-271.022
  • Front bezel material
  • Front bezel type
  • Front bezel colour
14-955.1
  • Illumination colour
  • Operating voltage
10-2119.1044
Add Accessories & Tools
Add to compare
Add to Cart
Your product:
704.601.01
704.609.7
14-271.022
14-955.1
10-2119.1044

704.601.01~10-2119.1044~14-271.022~14-955.1~704.609.7

Illuminated push button, Series 14, Ø 35 mm, illuminative, Flush, 1 NC + 1 NO, Gold, IP67, Plug-in terminal, 2.8 x 0.5 mm

Product range
HMI function:
Illuminated push button
Series:
Series 14
Front
Front dimension:
Ø 35 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Front bezel type:
Flush
Mounting
Design:
Flush
Mounting cut-out:
Ø 30.5 mm
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Black
Lens material:
Aluminium
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
opaque
Lens type:
Level with front bezel
Marking plate colour:
Colourless
Marking plate optics:
transparent
Marking plate illumination:
illuminative
Illumination colour:
Yellow
Shape of illumination:
Dot
Electrical characteristics
Switching voltage and switching current:

250 VAC, 5 A (ohmic)

250 VAC, 3 A (Soldering terminal)

250 VAC, 2 A (inductive, cos(phi) = 0.7)

220 VDC, 0.1 A (inductive, L:R = 30 ms)

110 VDC, 0.2 A (inductive, L:R = 30 ms)

60 VDC, 0.7 A (inductive, L:R = 30 ms)

24 VDC, 2 A (inductive, L:R = 30 ms)
Contacts configuration:
1 NC + 1 NO
Operating voltage:
48 V AC/DC +10%
Operation current:
4 - 8 mA ±15 %
Switching rating:
250 V @ 3 A
Electrical lifetime:
50 000 cycles of operation
Lumi. Intensity:
180 mcd
Thermal current Ith:
The maximum current in continuous operation and at ambient temperature not exceeding the quoted maximum values.
3 A
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching action:
Maintained
Switching system:
Snap-action switching element
Tightening torque:
Fixing nut max. 0.25 Nm
Total weight:
0.035 kg
Ambient Condition
IP front protection:
IP67
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Other
Housing colour:
Black
Housing material:
Plastic
max. number of switching elements:
1
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Share and save this product
Download files
Add to Cart
Your product consists of the following 5 COMPONENTS:
704.601.01

704.601.01

Lens

Front
Front form:
Round
Operating-/Indication part
Lens colour:
Black
Lens material:
Aluminium
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
opaque
Lens type:
Level with front bezel
Marking plate illumination:
illuminative
Shape of illumination:
Dot
Mechanical Characteristics
Weight:
0.002 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Lens, Ø 23.7 mm, Illuminated, Black, Flush, Aluminium
Dimension:
Ø 23.7 mm
Internal size:
Ø 20 mm
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons
Download files
Where to buy
Add to Cart
704.609.7

704.609.7

Marking plate

Operating-/Indication part
Marking plate colour:
Colourless
Marking plate optics:
transparent
Marking plate illumination:
illuminative
Mechanical Characteristics
Weight:
0 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Marking plate, Ø 20 mm, illuminative, Colourless, Plastic, transparent, ribbed
Dimension:
Ø 20 mm
Hints:
for lens round flat
Download files
Where to buy
Add to Cart
14-271.022

14-271.022

Actuator

Front
Front form:
Round
Mounting
Mounting type:
Panel mounting
Operating-/Indication part
Lens illumination:
Illuminated
Electrical characteristics
Switching voltage and switching current:

250 VAC, 5 A (ohmic)

250 VAC, 3 A (Soldering terminal)

250 VAC, 2 A (inductive, cos(phi) = 0.7)

220 VDC, 0.1 A (inductive, L:R = 30 ms)

110 VDC, 0.2 A (inductive, L:R = 30 ms)

60 VDC, 0.7 A (inductive, L:R = 30 ms)

24 VDC, 2 A (inductive, L:R = 30 ms)
Contacts:
1 NC / 1 NO
Rated Operational Voltage Ue:
250 VAC/DC according to EN IEC 61058-1
Switching rating:
250 V @ 3 A
Electrical lifetime:
50 000 cycles of operation
Electric strength:
3000 VAC, 50 Hz, 1 min. between all terminals and earth, according to EN/IEC 61058-1
Protection class:
ll
Standards:
According to EN/IEC 61058-1
Thermal current Ith:
The maximum current in continuous operation and at ambient temperature not exceeding the quoted maximum values.
3 A
Mechanical Characteristics
Terminal:
Plug-in terminal, 2.8 x 0.5 mm
Contact material:
Gold
Switching action:
Maintained
Switching system:
Snap-action switching element
Switching system:
Self-cleaning, double-break snap action switching system (contact opening width 2 mm x 0.5 mm), 1 normally closed and 1 normally open contact per element.
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Operating force:
5 N … 8 N
Operating Travel:
3 mm
Tightening torque:
Fixing nut max. 0.25 Nm
Terminal details 1:
Snap-action switching element with axial soldering terminals, which can also be used as plug-in terminals 2.8 x 0.5mm
Weight:
0.017 kg
Ambient Condition
IP front protection:
IP67, according to DIN EN 60529
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Climate resistance:
Standard condition, as per DIN EN 60068-2-78
Standard cyclic, as per DIN IEC 60068-2-30
Certificate
Approbations:
CB (IEC 61058-1), CQC, CSA, DNV, EAC, ENEC (EN 61058-1), UL, VDE
Conformities:
CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Illuminated, Round, 1 NC / 1 NO, Maintained, Plug-in terminal, 2.8 x 0.5 mm, IP67, according to DIN EN 60529
Housing colour:
Black
max. number of switching elements:
1
Wiring diagrams:
Wiring diagrams
Mounting cut-outs:
Mounting cut-outs
Mounting cut-outs
Mounting cut-outs
Mounting cut-outs
Dimension drawings:
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
D = Universal-Solder terminal
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
D = Universal-Solder terminal
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Universal-Solder terminal
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
D = Universal-Solder terminal
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Download files
Where to buy
Add to Cart
14-955.1

14-955.1

Front bezel

Front
Front dimension:
Ø 35 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Front bezel type:
Flush
Mounting
Mounting cut-out:
Ø 30.5 mm
Mounting type:
Panel mounting
Mechanical Characteristics
Weight:
0.016 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Front bezel, Ø 35 mm, Nature, Aluminium
Dimension:
Ø 35 mm
Housing colour:
Black
Housing material:
Plastic
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons
Mounting cut-outs:
Mounting cut-outs
Download files
Where to buy
Add to Cart
10-2119.1044

10-2119.1044

Single-LED

Operating-/Indication part
Illumination colour:
Yellow
Electrical characteristics
Operating voltage:
48 V AC/DC +10%
Operation current:
4 - 8 mA ±15 %
Lumi. Intensity:
180 mcd
Mechanical Characteristics
Weight:
0.001 kg
Certificate
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Single-LED, T5.6, Yellow, 48 V AC/DC +10%
Kind of iIllumination:
Single-LED
Hints:
For LED element fitting information see Application guidelines, LED polarity
Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)
When using AC/DC types with AC operation, slight flickering can occur
The luminous intensity stated is for when used with DC
Electrical and optical data are measured at 25 °C
The specified versions are built with a protection diode (halve wave rectifier) in series and the LED
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
Where supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.
Wiring diagrams:
Wiring diagrams

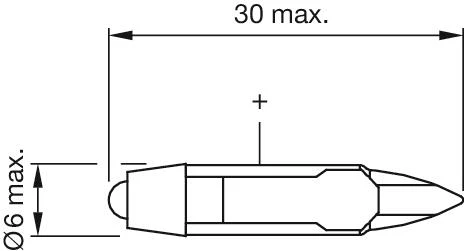

Dimension drawings:
Dimension drawings
Download files
Where to buy
Add to Cart
Cookie consent
Our website uses cookies. For more information about cookies on this website, please see our Privacy Policy and learn more about us in the Legal Notice. You may change the setting in the Privacy Policy.
Accept all
Reject non-required
Manage Settings
