View detailed product overview
https://www.eao.com/component/704.941.0/en/re...

Resistor block

  • 704.941.0

704.941.0 Resistor block, Plastic, Screw terminal, 130 - 230 V AC
704.941.0
Add to Cart
Your product:
704.941.0

704.941.0

Resistor block

Electrical characteristics
Operating voltage:
130 - 230 V AC
Mechanical Characteristics
Terminal:
Screw terminal
Weight:
0.017 kg
Other
Short Description:
Resistor block, Plastic, Screw terminal, 130 - 230 V AC
Titel Accessory:
Resistor block
Material:
Plastic
Product attributes:
Lamp voltage/-current 130 V, 20 mA

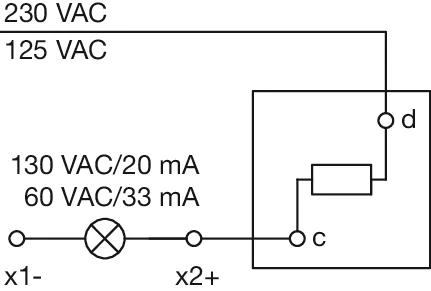

Wiring diagrams:
Wiring diagrams

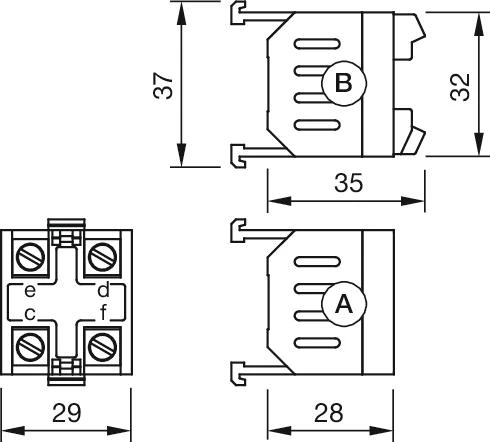

Dimension drawings:
Dimension drawings
A = Screw terminal
Push-in terminal (PIT)
