Your product:
Front
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
- Front bezel colour:
- Grey
- Front bezel material:
- Plastic
Mounting
- Design:
- Raised
- Mounting type:
- Panel mounting
Operating-/Indication part
- Lever colour:
- Black
- Lever bar colour:
- White
- Lever material:
- plastic
- Lever shape:
- short
Mechanical Characteristics
- Weight:
- 0.019 kg
Certificate
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Other
- Short Description:
- Actuator, 30 mm x 30 mm, non illuminative, Black, short, Square, Grey, Plastic
- max. number of switching elements:
- 1

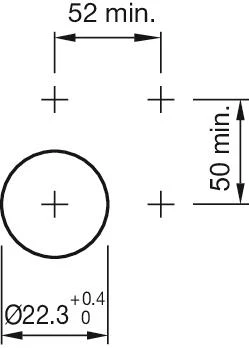

- Mounting cut-outs:

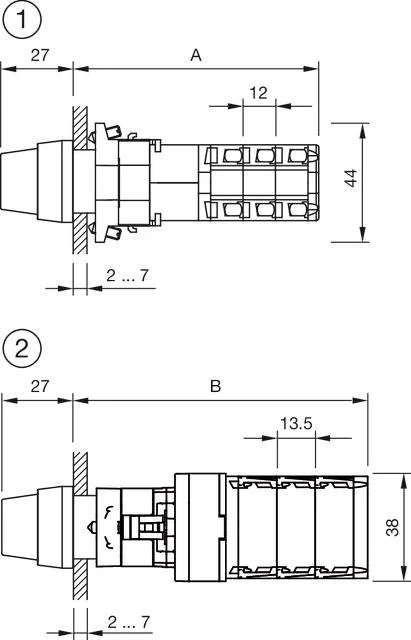

- Dimension drawings:
1 = Kraus & Naimer switching element
A = (Number of stages x 12) + 54.5 mm
2 = Santon switching element
B = (Number of stages x 13.5) + 54.5 mm
