Actuator

  • 51-259.025

51-259.025 Actuator, Ø 24,5 mm, Mushroom-head, Non illuminated, Red, Plastic, opaque, Round, 2 NC / 2 NO, Maintained, Soldering terminal, IP65, according to DIN EN 60529, Twist to unlock
51-259.025
Add to Cart
Your product:
51-259.025

51-259.025

Actuator

Front
Front dimension:
Ø 24,5 mm
Front form:
Round
Mounting
Design:
Raised
Mounting type:
Panel mounting
Operating-/Indication part
Lens colour:
Red
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Electrical characteristics
Switching voltage and switching current:

250 VAC, 5 A (ohmic)

24 VDC, 2 A (inductive, L:R = 30 ms)
Contacts:
2 NC / 2 NO
Switching rating:
250 V @ 5 A
Mechanical Characteristics
Terminal:
Soldering terminal
Contact material:
Gold
Switching action:
Maintained
Switching system:
Snap-action switching element
Switching system:
Self-cleaning, double-break snap action switching system, 1 normally closed and 1 normally open contact per element.
Release type:
Twist to unlock
Mechanical lifetime:
100 000 cycles of operation
Operating force:
18 … 21 N (depending on the switching element)
Tightening torque:
Fixing nut max. 0.5 Nm
Weight:
0.015 kg
Ambient Condition
IP front protection:
IP65, according to DIN EN 60529
Operating temperature:
– 25 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificate
Approbations:
CB (IEC 61058-1), CSA, ENEC (EN 61058-1), UL
Conformities:
CE, UKCA, 2006 / 42 / EC (MD), 2011 / 65 / EC (RoHS)
REACH:
REACH compliant
RoHS:
RoHS compliant
Other
Short Description:
Actuator, Ø 24,5 mm, Mushroom-head, Non illuminated, Red, Plastic, opaque, Round, 2 NC / 2 NO, Maintained, Soldering terminal, IP65, according to DIN EN 60529, Twist to unlock
Housing colour:
Black
Hints:
Marking arrows

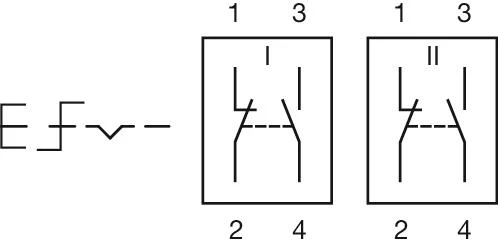

Wiring diagrams:
Wiring diagrams

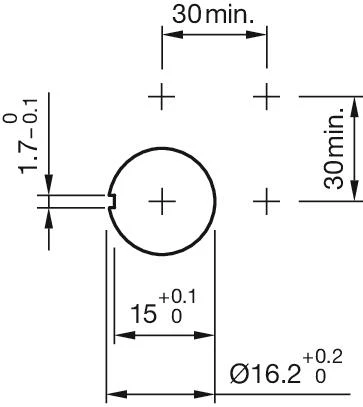

Mounting cut-outs:
Mounting cut-outs

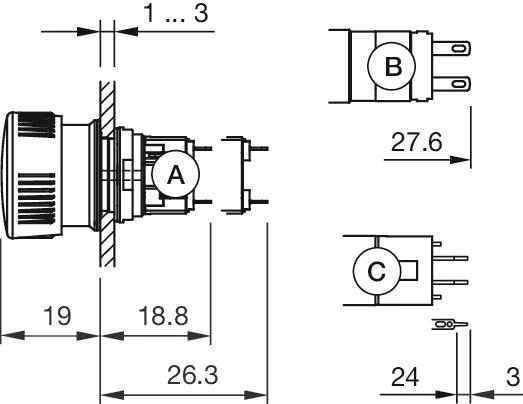

Dimension drawings:
Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 mm x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Download files
Add to Cart
