Flasher, Series 04, Ø 35 mm, Flush, IP65, Plug-in terminal, 6.3 x 0.8 mm
- 704.602.4
- 704.609.9
- 704.633.1
- 704.955.1
- 704.950.5
- 704.950.1
- 10-2H13.3169Q
- 704.943.5
- Lens type
- Lens colour
- Marking plate illumination
- Marking plate optics
- Marking plate colour
- Front bezel material
- Front bezel colour
- Material
- Terminal
- Operating voltage
- Operating voltage kind of
- Illumination colour
Aggiungere accessori e strumenti
Il vostro prodotto:
Gamma di prodotti
- HMI function:
- Flasher
- Serie:
- Series 04
Anteriore
- Front dimension:
- Ø 35 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel type:
- Flush
Montaggio
- Design:
- Flush
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Unità operativa/display
- Lens colour:
- Yellow
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Lens type:
- Level with front bezel
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
- Illumination colour:
- White
- Shape of illumination:
- Front
Caratteristiche elettriche
- Operating voltage:
- 24 - 30 V DC +10%
- Operation current:
- 7 - 11 mA ±15 %
- Lumi. Intensity:
- 600 - 900 mcd
Caratteristiche meccaniche
- Terminal:
- Plug-in terminal, 6.3 x 0.8 mm
- Switching positions:
- 2 positions
- Tightening torque:
- Max. 0.40 … 0.50 Nm
- Peso totale:
- 0.073 kg
Condizioni ambientali
- IP front protection:
- IP65
- Operating temperature:
- – 40 °C … + 55 °C
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Di più
- Material:
- Plastic
- Housing colour:
- Grey
- Housing material:
- Plastic
- Product attributes:
- Lamp voltage/-current 24 V, 10 ... 85 mA

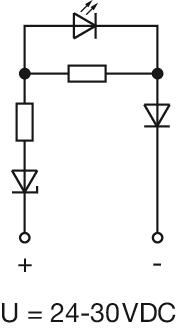

- Wiring diagrams:
Salvare o raccomandare prodotti
Scarica i file
Aggiungi al carrello
Il prodotto è composto da quanto segue 8 COMPONENTS:
Anteriore
- Front form:
- Round
Unità operativa/display
- Lens colour:
- Yellow
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Lens type:
- Level with front bezel
- Shape of illumination:
- Front
Caratteristiche meccaniche
- Weight:
- 0.001 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Lens, Ø 23.7 mm, Illuminated, Yellow, Flush, Plastic
- Dimension:
- Ø 23.7 mm
- Hints:
- To obtain IP67, use marking plate Part No. 704.609.9
Scarica i file
Dove acquistare
Aggiungi al carrello
Unità operativa/display
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
Caratteristiche meccaniche
- Weight:
- 0 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Marking plate, Ø 20 mm, illuminative, White, Plastic, translucent
- Dimension:
- Ø 20 mm
- Hints:
- for lens round flat
Scarica i file
Dove acquistare
Aggiungi al carrello
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche elettriche
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Caratteristiche meccaniche
- Weight:
- 0.008 kg
Condizioni ambientali
- IP Protection:
- IP65 front side
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Actuator
- Housing colour:
- Grey
- Housing material:
- Plastic

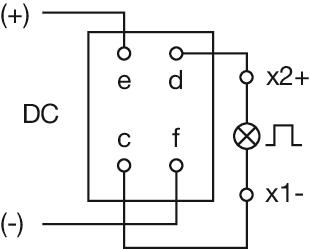

- Wiring diagrams:

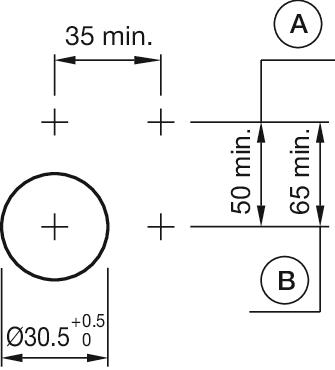

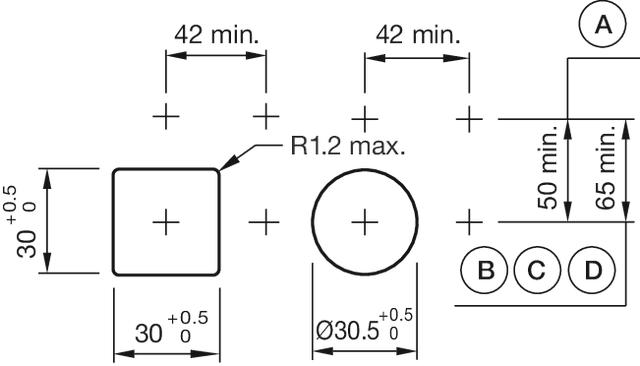

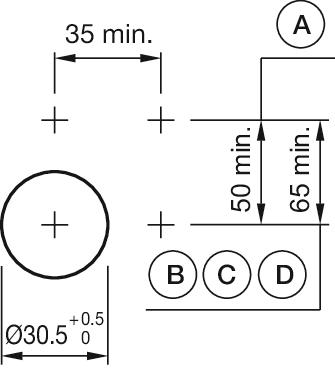

- Mounting cut-outs:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
A = Screw terminal
B = Push-in terminal (PIT)
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
A = Screw terminal

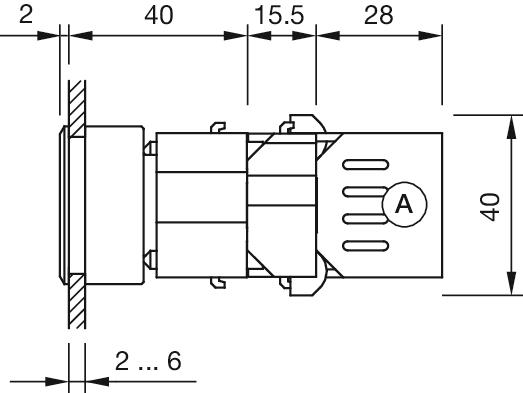

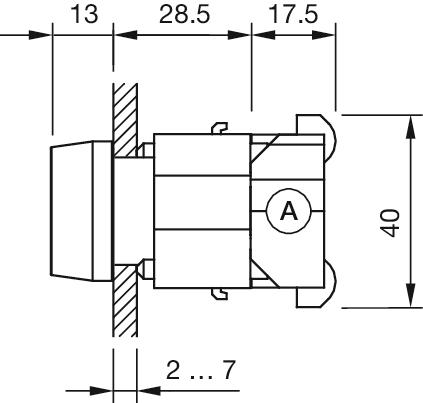

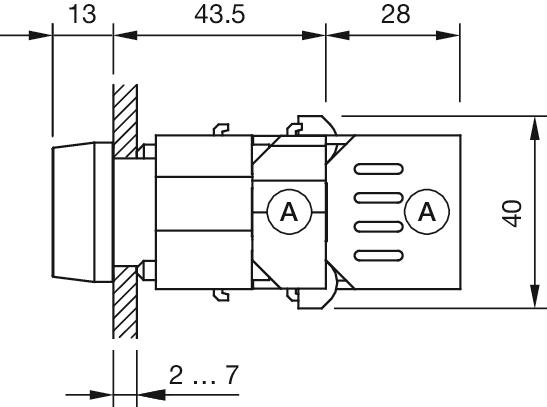

B = Push-in terminal (PIT)- Dimension drawings:
A = Screw terminal
X = Screw terminal
A = Screw terminal
A = Screw terminal
Scarica i file
Dove acquistare
Aggiungi al carrello
Anteriore
- Front dimension:
- Ø 35 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel type:
- Flush
Montaggio
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Weight:
- 0.016 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Front bezel set, Ø 35 mm, Nature, Aluminium
- Dimension:
- Ø 35 mm
- Housing colour:
- Nature
- Housing material:
- Aluminium
- Hints:
- The colour of anodised aluminium parts can vary due to technical production reasons

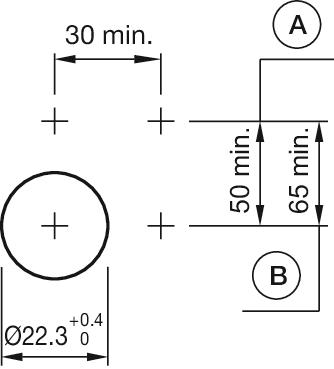

- Mounting cut-outs:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
Scarica i file
Dove acquistare
Aggiungi al carrello
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Tightening torque:
- Max. 0.40 … 0.50 Nm
- Weight:
- 0.01 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Bayonet flange, Plastic
- Material:
- Plastic
- Dimension drawings:
for Part No. 704.950.5
Scarica i file
Dove acquistare
Aggiungi al carrello
Caratteristiche elettriche
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1/DIN EN 60947-5-1
Caratteristiche meccaniche
- Terminal:
- Plug-in terminal, 6.3 x 0.8 mm
- Switching positions:
- 2 positions
- Wire cross section:
- Plug-in terminal 1 x 6.3 mm x 0.8 mm or 2 x 2.8 mm x 0.8 mmFor switches with plug-in terminals it is necessary to provide insulation sleeves and to maintain a spacing of 65 mm between rows (mounting cut-outs).
- Weight:
- 0.013 kg
Condizioni ambientali
- IP Protection:
- IP00
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 300 m/s², pulse width 11 ms (sinusoidal EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Relative humidity, max. 95%, non-condensing
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Lamp block, Plastic, Plug-in terminal, 6.3 x 0.8 mm
- Housing material:
- Plastic
- Hints:
- When using the lamp block, the application guidelines must be observed.
- Wiring diagrams:

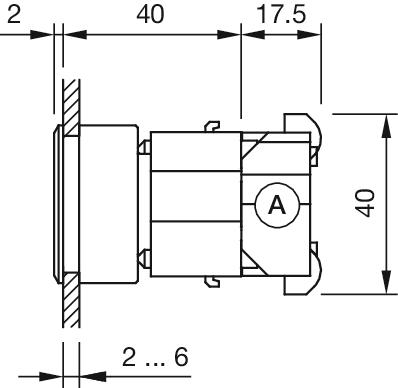

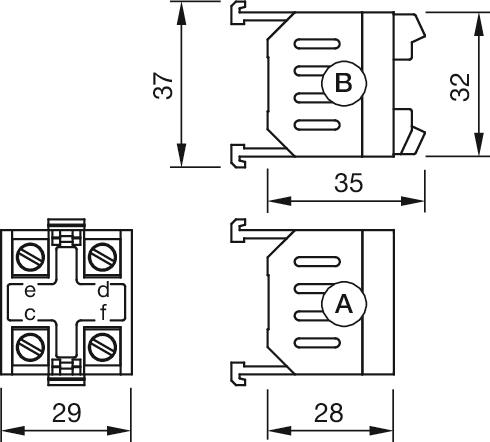

- Dimension drawings:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
Scarica i file
Dove acquistare
Aggiungi al carrello
Unità operativa/display
- Illumination colour:
- White
Caratteristiche elettriche
- Operating voltage:
- 24 - 30 V DC +10%
- Operation current:
- 7 - 11 mA ±15 %
- Lumi. Intensity:
- 600 - 900 mcd
Caratteristiche meccaniche
- Weight:
- 0.002 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Single-LED, BA9s, White, 24 - 30 V DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LEDElectrical and optical data are measured at 25 °CThe specified 12, 24, 28, 48 VAC/DC versions are built with a bridge rectifier
- Wiring diagrams:

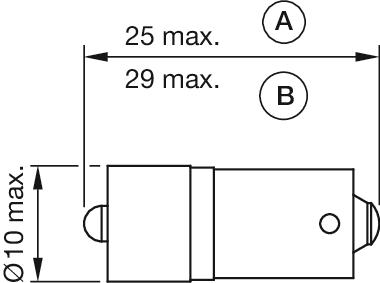

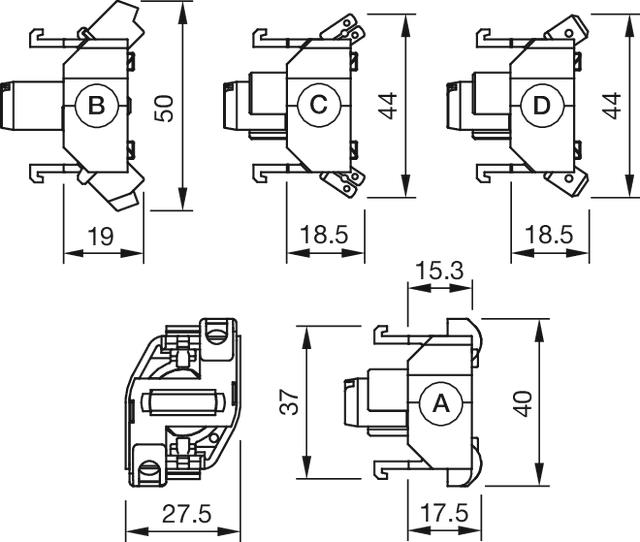

- Dimension drawings:
A = (standard)
B = (super bright)
Scarica i file
Dove acquistare
Aggiungi al carrello
Caratteristiche elettriche
- Operating voltage:
- 24 V AC/DC ±15 %
- Operation current:
- 10 - 85 mA
Caratteristiche meccaniche
- Terminal:
- Screw terminal
- Weight:
- 0.023 kg
Condizioni ambientali
- IP Protection:
- IP30 rear side
- Operating temperature:
- 0 °C … + 50 °C
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Flasher element, 24 V AC/DC ±15 %, Screw terminal
- Housing material:
- Plastic, according to UL 94 V0
- Product attributes:
- Lamp voltage/-current 24 V, 10 ... 85 mA
- Wiring diagrams:

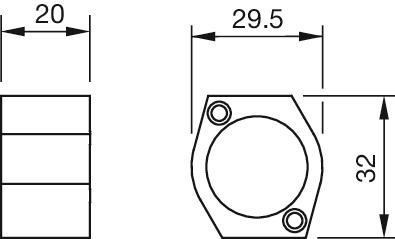

- Dimension drawings:
A = Screw terminal
Push-in terminal (PIT)
Scarica i file
