Interruttore per l'arresto di emergenza & Pulsante di stop
https://www.eao.com/p/fc9ba354

Stop switch, Series 46, Ø 40 mm, Raised, 1 NC, IP65, Screw terminal

  • 46-2736.1910.000
  • 46-2M00.1000.000
  • 46-312.1Z10

46-2736.1910.000
46-2M00.1000.000
  • Terminal
  • Configurazione dei contatti
46-312.1Z10
Aggiungere accessori e strumenti
Aggiungi per un confronto
Aggiungi al carrello
Il vostro prodotto:
46-2736.1910.000
46-2M00.1000.000
46-312.1Z10

46-2736.1910.000~46-2M00.1000.000~46-312.1Z10

Stop switch, Series 46, Ø 40 mm, Raised, 1 NC, IP65, Screw terminal

Gamma di prodotti
HMI function:
Stop switch
Serie:
Series 46
Anteriore
Front dimension:
Ø 40 mm
Front form:
Round
Front bezel colour:
Yellow
Front bezel material:
Plastic
Colour:
Grey
Montaggio
Design:
Raised
Mounting cut-out:
Ø 22.3 mm
Mounting type:
Panel mounting
Unità operativa/display
Lens colour:
Black
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Caratteristiche elettriche
Switching voltage and switching current:

at AC-15

Voltage

24 V

120 V

240 V

600 V

Current

10 A

6 A

3 A

1,2 A

at DC-13

Voltage

24 V

120 V

240 V

Current

5 A

1,1 A

0,55 A
Configurazione dei contatti:
1 NC
Switching rating:
600 V AC @ 1,2 A
Thermal current Ith:
10 A (IEC-EN60947-1)
Caratteristiche meccaniche
Terminal:
Screw terminal
Contact material:
Silver
Switching system:
Slow-make switching element
Release type:
Twist to unlock
Tightening torque:
2 … 3 Nm (17.7 ... 26.6 Lb-in)
Peso totale:
0.055 kg
Condizioni ambientali
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Vibration resistance:
5g f= 2...500Hz (EN-IEC 60068-2-6)
Di più
Material:
Plastic
Housing colour:
Yellow
Housing material:
Plastic
Product attributes:
Non-illuminative
Colour RAL:
7016 RAL
max. number of switching elements:
4
Wiring diagrams:
Wiring diagrams
Salvare o raccomandare prodotti
Scarica i file
Aggiungi al carrello
Il prodotto è composto da quanto segue 3 COMPONENTS:

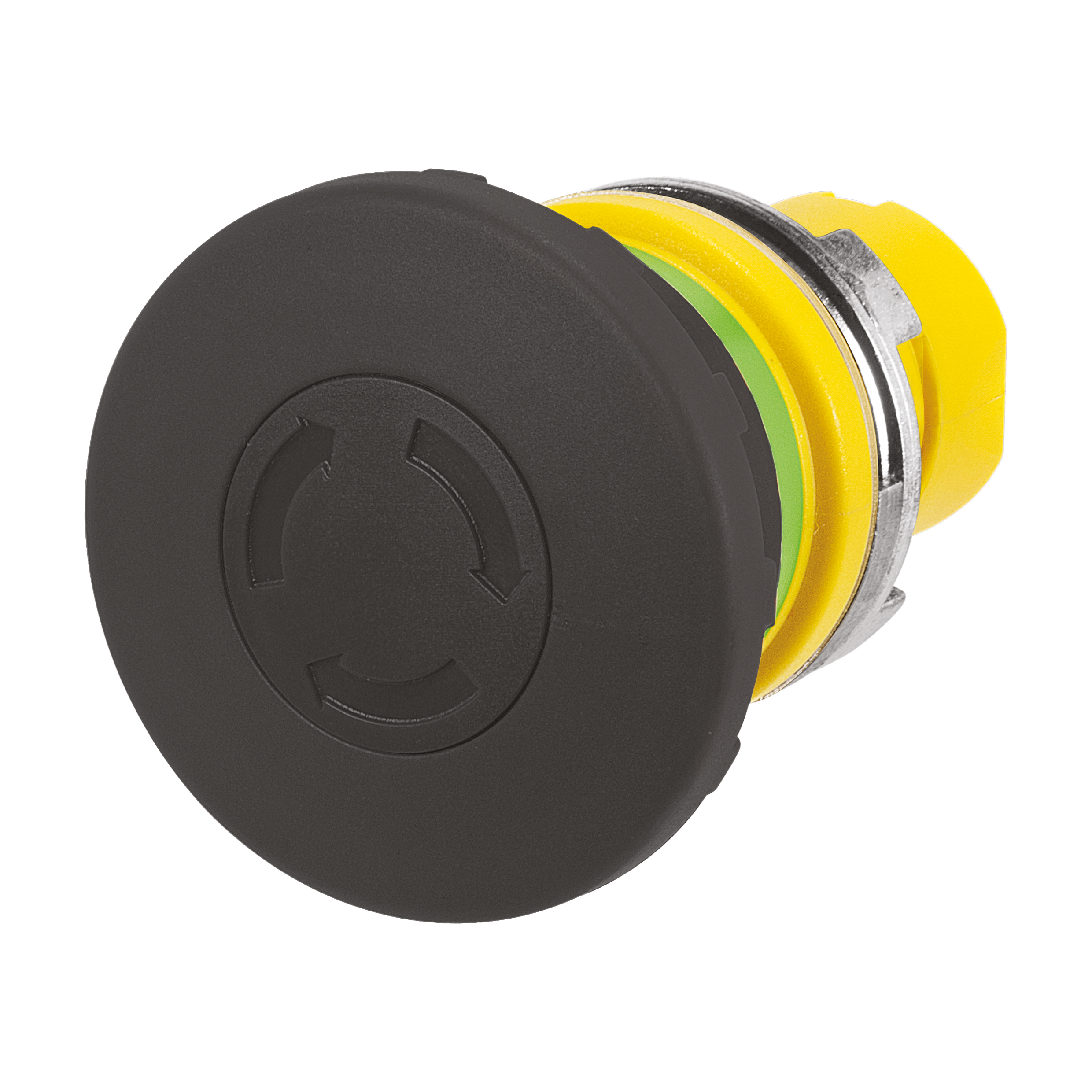

46-2736.1910.000

46-2736.1910.000

Actuator

Anteriore
Front dimension:
Ø 40 mm
Front form:
Round
Front bezel colour:
Yellow
Front bezel material:
Plastic
Montaggio
Design:
Raised
Mounting cut-out:
Ø 22.3 mm
Mounting type:
Panel mounting
Unità operativa/display
Lens colour:
Black
Lens material:
Plastic
Lens illumination:
Non illuminated
Lens shape:
Mushroom-head
Lens optics:
opaque
Caratteristiche elettriche
Protection class:
ll
Caratteristiche meccaniche
Release type:
Twist to unlock
Mechanical lifetime:
50 000 cycles of operation
Tightening torque:
2 … 3 Nm (17.7 ... 26.6 Lb-in)
Weight:
0.036 kg
Condizioni ambientali
IP front protection:
IP65
IK front protection:
IK03
Operating temperature:
– 25 °C … + 55 °C
Shock resistance:
30g, 18ms (EN-IEC 60068-2-27)
50g, 11ms (EN-IEC 60068-2-27)
Vibration resistance:
5g f= 2...500Hz (EN-IEC 60068-2-6)
Climate resistance:
+25°C-97%RH / +45°C-93%RH (IEC-EN60068-2-30)
Certificati
Approbations:
CSA, EAC, UL
Conformities:
CE
REACH:
REACH compliant
RoHS:
RoHS compliant
Standards:
CSA C22-2, IEC EN 60947-1, IEC EN 60947-5-1, IEC EN 60947-5-5, UL508, UNI EN ISO 12100, UNI EN ISO 13850
Di più
Short Description:
Actuator, Ø 22.3 mm, Ø 40 mm, Mushroom-head, Non illuminated, Black, Plastic, opaque, Round, Yellow, Plastic, IP65, IK03, Twist to unlock
Dimension:
Ø 40 mm
Housing colour:
Yellow
Housing material:
Plastic
max. number of switching elements:
4

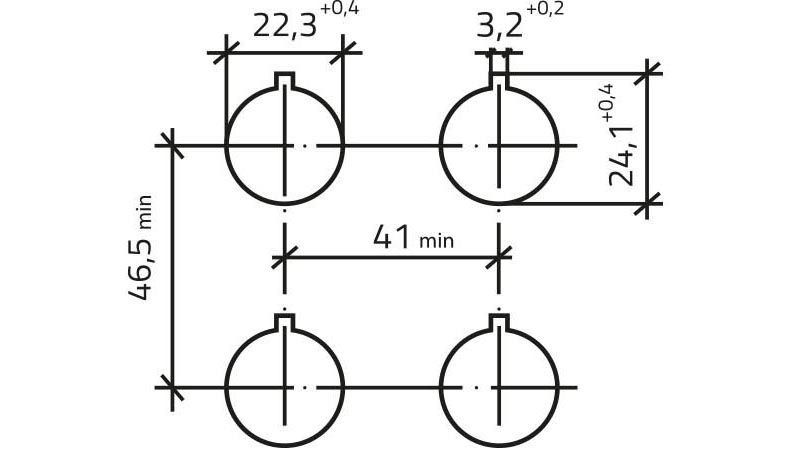

Mounting cut-outs:
Mounting cut-outs

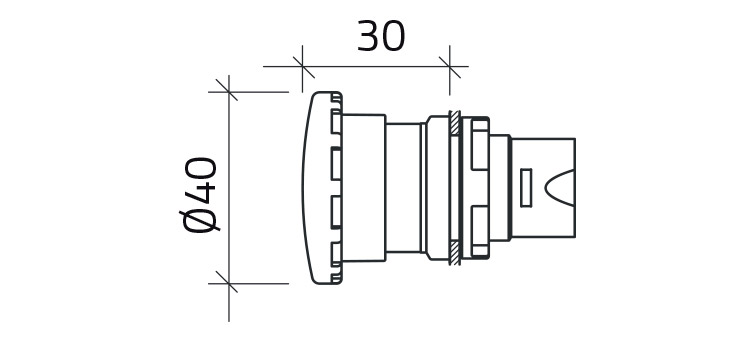

Dimension drawings:
Dimension drawings
Scarica i file
Dove acquistare
Aggiungi al carrello
46-2M00.1000.000

46-2M00.1000.000

Holder

Anteriore
Colour:
Grey
Montaggio
Mounting type:
Panel mounting
Caratteristiche meccaniche
Weight:
0.008 kg
Condizioni ambientali
Operating temperature:
– 25 °C … + 55 °C
Climate resistance:
+25°C-97%RH / +45°C-93%RH (IEC-EN60068-2-30)
Certificati
Approbations:
CSA, EAC, UL
Conformities:
CE
REACH:
REACH compliant
RoHS:
RoHS compliant
Standards:
CSA C22-2, IEC EN 60947-1, IEC EN 60947-5-1, UL508
Di più
Short Description:
Holder, Plastic
Dimension:
38 mm x 30 mm
Material:
Plastic
Product attributes:
Non-illuminative
Colour RAL:
7016 RAL
Dimension drawings:
Dimension drawings
Scarica i file
Dove acquistare
Aggiungi al carrello
46-312.1Z10

46-312.1Z10

Switching element

Anteriore
Colour:
Red
Caratteristiche elettriche
Switching voltage and switching current:

at AC-15

Voltage

24 V

120 V

240 V

600 V

Current

10 A

6 A

3 A

1,2 A

at DC-13

Voltage

24 V

120 V

240 V

Current

5 A

1,1 A

0,55 A
Contacts:
1 NC
Insulation voltage:
Ui 690V - Uimp 4KV (IEC-EN60947-1)
Switching rating:
600 V AC @ 1,2 A
Pollution degree:
3
Thermal current Ith:
10 A (IEC-EN60947-1)
Caratteristiche meccaniche
Terminal:
Screw terminal
Contact material:
Silver
Switching system:
Slow-make switching element
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Operating force:
2 N
Tightening torque:
0.8 ... 1 Nm for screw terminal
Weight:
0.011 kg
Condizioni ambientali
IP Protection:
IP20
Operating temperature:
– 25 °C … + 55 °C
Shock resistance:
30g, 18ms (EN-IEC 60068-2-27)
50g, 11ms (EN-IEC 60068-2-27)
Vibration resistance:
5g f= 2...500Hz (EN-IEC 60068-2-6)
Climate resistance:
+25°C-97%RH / +45°C-93%RH (IEC-EN60068-2-30)
Certificati
Approbations:
CSA, EAC, UL
Conformities:
CE
REACH:
REACH compliant
RoHS:
RoHS compliant
Standards:
CSA C22-2, IEC EN 60947-1, IEC EN 60947-5-1, UL508
Di più
Short Description:
Switching element, Slow-make switching element, 600 V AC @ 1,2 A, Silver, 1 NC, Screw terminal
Material:
Plastic
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
