Assembly settings
Gamma di prodotti
Disponibilità online
No
no
scegliere ...
Anteriore
Front form
Round
Round
scegliere ...
Front bezel colour
Sand grey
Sand grey
scegliere ...
Front bezel material
Metal
Metal
scegliere ...
Front dimension
Ø 38 mm
Ø 38 mm
scegliere ...
Montaggio
Design
Flush
Flush
scegliere ...
Mounting type
Panel mounting
Panel mounting
scegliere ...
Component mounting type
Front mounting
Front mounting
scegliere ...
Mounting cut-out
Ø 30 mm
Ø 30 mm
scegliere ...
Unità operativa/display
Lens cap shape
flush
flush
scegliere ...
Lens cap colour
Colourless
Colourless
scegliere ...
Lens cap material
Plastic
Plastic
scegliere ...
Illumination colour
White
White
scegliere ...
Caratteristiche elettriche
Operating voltage kind of
V AC/DC
V AC/DC
scegliere ...
Operating voltage
24 V
24 V
scegliere ...
Caratteristiche meccaniche
Terminal
Screw terminal
Screw terminal
scegliere ...
Condizioni ambientali
IP front protection
IP66, IP67, IP69K
IP66, IP67, IP69K
scegliere ...
Di più
Material
Metal
Metal
scegliere ...
Indietro
Indicator, Series 45, Ø 38 mm, Flush, IP66, IP67, IP69K, Screw terminal
- 45-2T07.4FK0.000
- 45-2300.2000.000
- 45-320.1N16
- Lens cap colour
- Illumination colour
- Terminal
- Operating voltage kind of
- Operating voltage
Aggiungere accessori e strumenti
Il vostro prodotto:
Gamma di prodotti
- HMI function:
- Indicator
- Serie:
- Series 45
Anteriore
- Front dimension:
- Ø 38 mm
- Front form:
- Round
- Front bezel colour:
- Sand grey
- Front bezel material:
- Metal
Montaggio
- Design:
- Flush
- Mounting cut-out:
- Ø 30.5 mm
- Component mounting type:
- Front mounting
- Mounting type:
- Panel mounting
Unità operativa/display
- Lens cap colour:
- Colourless
- Lens cap material:
- Plastic
- Lens cap shape:
- flush
- Lens cap optical effect:
- transparent
- Illumination colour:
- White
Caratteristiche elettriche
- Operating voltage:
- 24 V AC/DC
- Lumi. Intensity:
- 900 - 1400 mcd
Caratteristiche meccaniche
- Terminal:
- Screw terminal
- Peso totale:
- 0.126 kg
Condizioni ambientali
- IP front protection:
- IP66, IP67, IP69K
- Operating temperature:
- – 25 °C … + 70 °C
- Vibration resistance:
- According to IEC 60068-2-6: 2 … 500 Hz: 5 g
Di più
- Material:
- Metal
- Housing material:
- Metal
- max. number of switching elements:
- 0
- Wiring diagrams:
Salvare o raccomandare prodotti
Scarica i file
Aggiungi al carrello
Il prodotto è composto da quanto segue 3 COMPONENTS:
Anteriore
- Front dimension:
- Ø 38 mm
- Front form:
- Round
- Front bezel colour:
- Sand grey
- Front bezel material:
- Metal
Montaggio
- Design:
- Raised
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Unità operativa/display
- Lens cap colour:
- Colourless
- Lens cap material:
- Plastic
- Lens cap shape:
- flush
- Lens cap optical effect:
- transparent
- Illumination colour:
- White
Caratteristiche meccaniche
- Weight:
- 0.071 kg
Condizioni ambientali
- IP front protection:
- IP66, IP67, IP69K
- Operating temperature:
- – 25 °C … + 70 °C
- Storage temperature:
- – 40 °C … + 80 °C
- Shock resistance:
- According to IEC 60068-2-27: Sinusoidal half-wave 50 g / 11 ms
- Vibration resistance:
- According to IEC 60068-2-6: 2 … 500 Hz: 5 g
- Climate resistance:
- During operation according to IEC 60721: 3K6, 3C3, 3S2, 3M6
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Actuator, Ø 22.3 mm, Ø 38 mm, Round, Sand grey, Metal, IP66, IP67, IP69K, White
- Housing material:
- Metal
- Hints:
- Front panel thickness 1 … 6 mm
- Wiring diagrams:

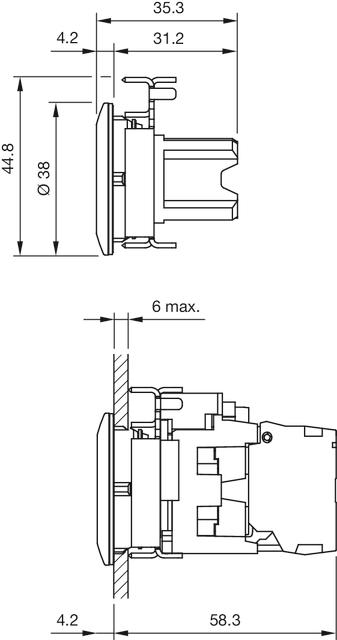

- Dimension drawings:
Scarica i file
Dove acquistare
Aggiungi al carrello
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Weight:
- 0.046 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Holder for 3 elements, Metal
- Material:
- Metal
- Component layouts:
- Dimension drawings:
Scarica i file
Dove acquistare
Aggiungi al carrello
Montaggio
- Component mounting type:
- Front mounting
Unità operativa/display
- Illumination colour:
- White
Caratteristiche elettriche
- Operating voltage:
- 24 V AC/DC
- Surge voltage resistance:
- 4 kV
- Lumi. Intensity:
- 900 - 1400 mcd
Caratteristiche meccaniche
- Terminal:
- Screw terminal
- Terminal details 1:
- Solid 2 x (1.0 … 1.5mm²)– With end sleeves 2 x (0.5 … 0.75 mm²)
- Terminal details 2:
- Finely stranded– Without end sleeves 2 x (0.5 … 0.75 mm²)– Without end sleeves 2 x (0.5 … 1.5 mm²)– For AWG cables for auxiliary contacts 2 x (18 … 14)
- Weight:
- 0.009 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Illumination element, Screw terminal, White, 24 V AC/DC, Front mounting
- Wiring diagrams:

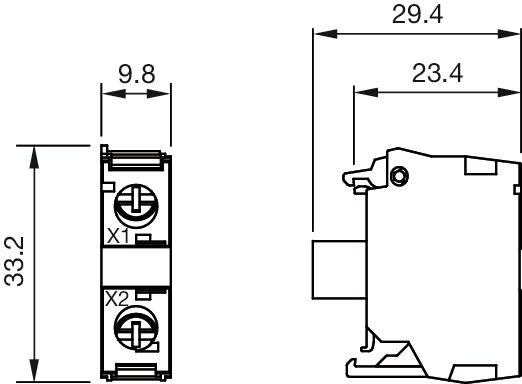

- Dimension drawings:
