Keylock switch 2 positions, Series 14, Ø 35 mm, Flush, 1 NC + 1 NO, Soldering terminal
- 14-235.025K2
- 14-955.1
- 704.954.0
- Switching action
- Terminal
- Switching rating
- Switching system
- Switching angle
- Contact material
- Configurazione dei contatti
Aggiungere accessori e strumenti
Il vostro prodotto:
Gamma di prodotti
- HMI function:
- Keylock switch
- Serie:
- Series 14
Anteriore
- Front dimension:
- Ø 35 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel type:
- Flush
Montaggio
- Design:
- Flush
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Caratteristiche elettriche
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Configurazione dei contatti:
- 1 NC + 1 NO
- Switching rating:
- 250 V @ 3 A
- Electrical lifetime:
- 50 000 cycles of operation
- Thermal current Ith:
- The maximum current in continuous operation and at ambient temperature not exceeding the quoted maximum values.3 A
Caratteristiche meccaniche
- Terminal:
- Soldering terminal
- Contact material:
- Gold
- Switching action:
- Rest (a) - Maintained
- Switching system:
- Snap-action switching element
- Switching positions:
- 2 positions
- Switching angle:
- 90° right
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Peso totale:
- 0.047 kg
Condizioni ambientali
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Di più
- Material:
- Steel plate
- Housing colour:
- Black
- Housing material:
- Plastic
- max. number of switching elements:
- 1
- Wiring diagrams:
Salvare o raccomandare prodotti
Scarica i file
Aggiungi al carrello
Il prodotto è composto da quanto segue 3 COMPONENTS:
Anteriore
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche elettriche
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Contacts:
- 1 NC / 1 NO
- Rated Operational Voltage Ue:
- 250 VAC/DC according to EN IEC 61058-1
- Switching rating:
- 250 V @ 3 A
- Electrical lifetime:
- 50 000 cycles of operation
- Electric strength:
- 3000 VAC, 50 Hz, 1 min. between all terminals and earth, according to EN/IEC 61058-1
- Protection class:
- ll
- Standards:
- According to EN/IEC 61058-1
- Thermal current Ith:
- The maximum current in continuous operation and at ambient temperature not exceeding the quoted maximum values.3 A
Caratteristiche meccaniche
- Terminal:
- Soldering terminal
- Contact material:
- Gold
- Switching action:
- Rest (a) - Maintained
- Switching system:
- Snap-action switching element
- Switching system:
- Self-cleaning, double-break snap action switching system, 1 normally closed and 1 normally open contact per element.
- Switching positions:
- 2 positions
- Switching angle:
- 90° right
- Mechanical lifetime:
- 1 Mil. cycles of operation (RCC/RPB)
- Operating force:
- 5 N … 8 N, depending on the number of switching elements
- Operating Travel:
- ca. 90°
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Weight:
- 0.029 kg
Condizioni ambientali
- IP front protection:
- IP65, according to DIN EN 60529
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Standard condition, as per DIN EN 60068-2-78Standard cyclic, as per DIN IEC 60068-2-30
Certificati
- Approbations:
- CB (IEC 61058-1), CQC, CSA, DNV, EAC, ENEC (EN 61058-1), UL, VDE
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Actuator, Round, Nature, Aluminium, anodised, 1 NC / 1 NO, Rest (a) - Maintained, Soldering terminal, IP65, according to DIN EN 60529
- Housing colour:
- Black
- Hints:
- Lock numbers 1001, lock type KABA
- max. number of switching elements:
- 1
- Switching positions:
- Wiring diagrams:

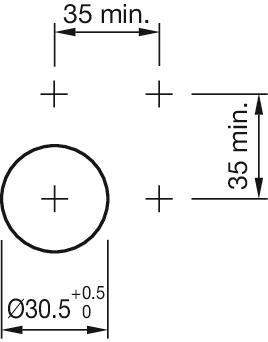

- Mounting cut-outs:
- Dimension drawings:
A = Solder terminal
B = Plug-in terminal 2.8 mm x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
A = Solder terminal
B = Plug-in terminal 2.8 x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Scarica i file
Dove acquistare
Aggiungi al carrello
Anteriore
- Front dimension:
- Ø 35 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel type:
- Flush
Montaggio
- Mounting cut-out:
- Ø 30.5 mm
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Weight:
- 0.016 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Front bezel, Ø 35 mm, Nature, Aluminium
- Dimension:
- Ø 35 mm
- Housing colour:
- Black
- Housing material:
- Plastic
- Hints:
- The colour of anodised aluminium parts can vary due to technical production reasons
- Mounting cut-outs:
Scarica i file
Dove acquistare
Aggiungi al carrello
Montaggio
- Design:
- Flush
- Mounting cut-out:
- Ø 30 mm
Caratteristiche meccaniche
- Weight:
- 0.002 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Anti-twist device, Ø 30 mm, Steel plate
- Material:
