Indicator, Series 14, Ø 29 mm, Raised, IP67, Soldering terminal
- K14-040.120092
- Lens shape
- Lens colour
- Terminal
- Operating voltage
- Illumination colour
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Indicator
- Séries:
- Series 14
Front
- Front dimension:
- Ø 29 mm
- Front form:
- Round
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- White
Caractéristiques électriques
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Operating voltage:
- 28 V AC/DC
- Operation current:
- 2.5/5 mA ±15 %
- Switching rating:
- 5 A
- Electrical lifetime:
- 50 000 cycles of operation
- Thermal current Ith:
- 5 A
Caractéristiques mécaniques
- Terminal:
- Soldering terminal
- Contact material:
- Gold-plated silver
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Poids total:
- 0.021 kg
Conditions environnementales
- IP front protection:
- IP67
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Autres
- Housing colour:
- Black
- Housing material:
- Plastic
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 1 COMPONENTS:
Front
- Front dimension:
- Ø 29 mm
- Front form:
- Round
Montage
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- White
Caractéristiques électriques
- Switching voltage and switching current:
250 VAC, 5 A (ohmic)
250 VAC, 3 A (Soldering terminal)
250 VAC, 2 A (inductive, cos(phi) = 0.7)
220 VDC, 0.1 A (inductive, L:R = 30 ms)
110 VDC, 0.2 A (inductive, L:R = 30 ms)
60 VDC, 0.7 A (inductive, L:R = 30 ms)
24 VDC, 2 A (inductive, L:R = 30 ms)
- Operating voltage:
- 28 V AC/DC
- Operation current:
- 2.5/5 mA ±15 %
- Rated Operational Voltage Ue:
- 250 VAC/DC according to EN IEC 61058-1
- Switching rating:
- 5 A
- Electrical lifetime:
- 50 000 cycles of operation
- Electric strength:
- 3000 VAC, 50 Hz, 1 min. between all terminals and earth, according to EN/IEC 61058-1
- Protection class:
- ll
- Standards:
- According to EN/IEC 61058-1
- Thermal current Ith:
- 5 A
Caractéristiques mécaniques
- Terminal:
- Soldering terminal
- Contact material:
- Gold-plated silver
- Tightening torque:
- Fixing nut max. 0.25 Nm
- Weight:
- 0.021 kg
Conditions environnementales
- IP front protection:
- IP67, according to DIN EN 60529
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 150 m / s², pulse width 11 ms, 3-axis, (semi-sinusoidal as per EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Standard condition, as per DIN EN 60068-2-78Standard cyclic, as per DIN IEC 60068-2-30
Certificats
- Approbations:
- CB (IEC 61058-1), CQC, CSA, DNV, ENEC (EN 61058-1), UL
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Indicator, 5 A, 28 V AC/DC, Soldering terminal, Round, White, Colourless
- Housing colour:
- Black
- Housing material:
- Plastic
- Wiring diagrams:

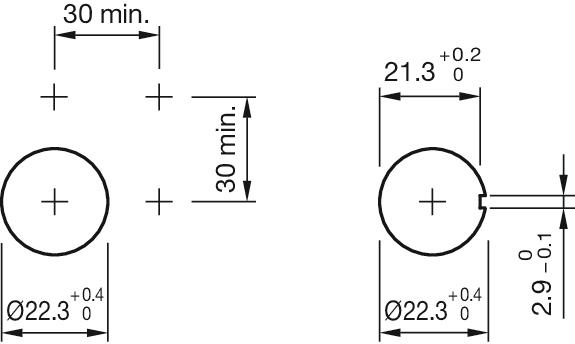

- Mounting cut-outs:

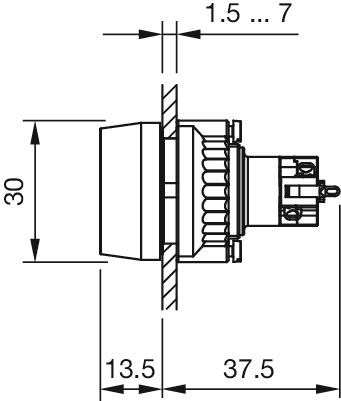

- Dimension drawings:
