Assembly settings
Gamme de produits
Type of module
6 Push buttons
6 Push buttons
choisir ...
Product variant
SUPER (CAN, RGB LED)
SUPER (CAN, RGB LED)
choisir ...
Disponibilité en ligne
Non
no
choisir ...
Front
Front form
Rectangular
Rectangular
choisir ...
Montage
Design
Raised
Raised
choisir ...
Mounting type
Clip in & screw in
Clip in & screw in
choisir ...
Mounting cut-out
107 mm x 69 mm
107 mm x 69 mm
choisir ...
Partie commande/affichage
Symbol
No Symbol
No Symbol
choisir ...
Halo ring illumination
RGB
RGB
choisir ...
Caractéristiques électriques
PCBA Version
LoadDump B
LoadDump B
choisir ...
Communication interface
J1939
J1939
choisir ...
Operating voltage kind of
V DC
V DC
choisir ...
Operating voltage
8 - 32 V
8 - 32 V
choisir ...
Caractéristiques mécaniques
Terminal
Deutsch DT04-6P
Deutsch DT04-6P
choisir ...
Retour

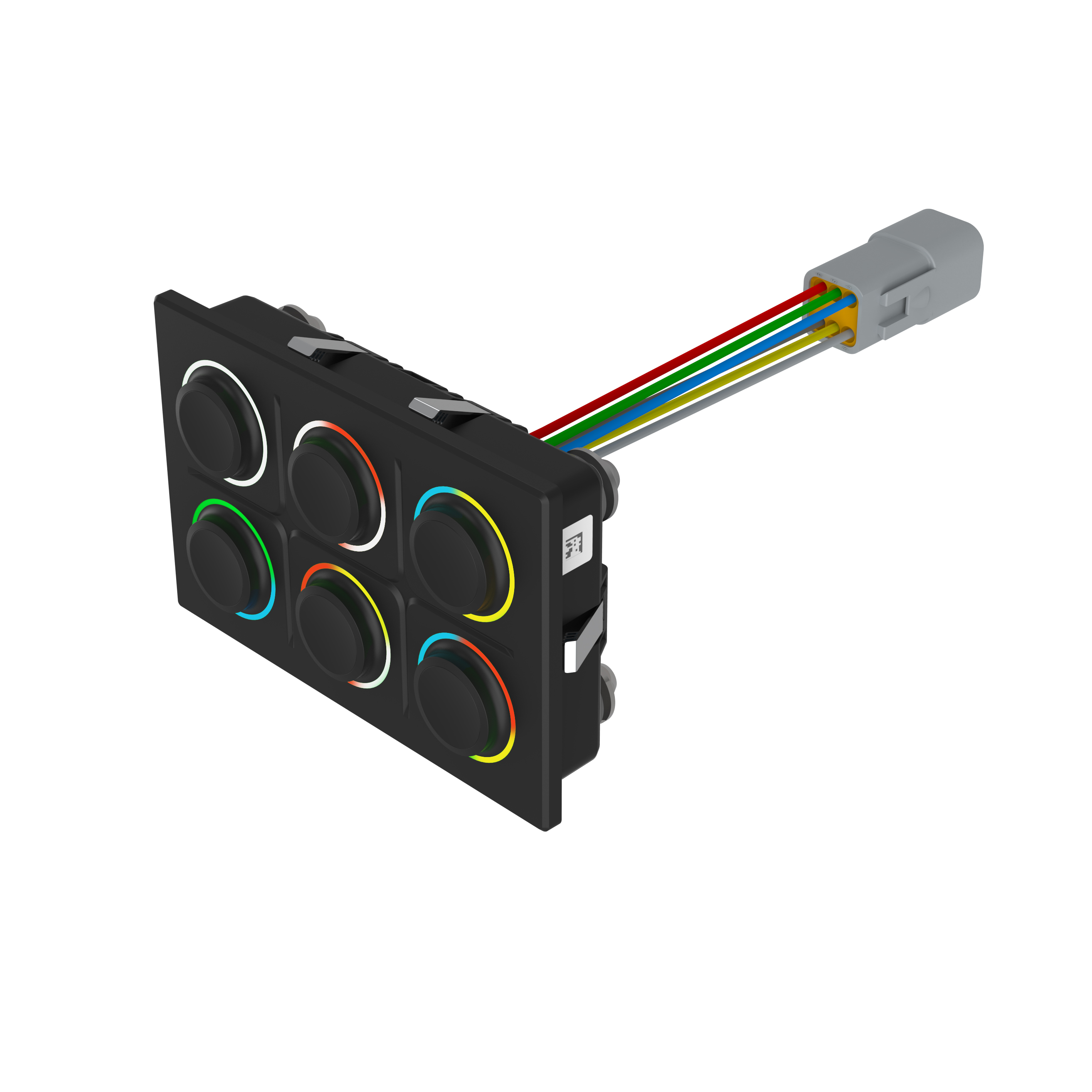

Rugged keypads complete, Series 09, Raised
- K09-00.000014
- Mounting cut-out
- Terminal
- Halo ring illumination
- Operating voltage
- PCBA Version
- Symbol
- Type of module
- Communication interface
- Product variant
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Keypad
- Séries:
- Series 09
- Type of module:
- 6 Push buttons
- Product variant:
- SUPER (CAN, RGB LED)
Front
- Front form:
- Rectangular
Montage
- Design:
- Raised
- Mounting cut-out:
- 107.1 mm x 68.8 mm
- Mounting type:
- Clip in & screw in
Partie commande/affichage
- Halo ring illumination:
- RGB
- Symbol:
- No Symbol
- Marking symbol colour:
- White
Caractéristiques électriques
- Operating voltage:
- 8 - 32 V DC
- Communication interface:
- J1939
- PCBA Version:
- LoadDump B
Caractéristiques mécaniques
- Terminal:
- Deutsch DT04-6P
- Poids total:
- 0.206 kg
Conditions environnementales
- Operating temperature:
- – 40 °C … + 85 °C
Autres
- Housing colour:
- Black
- Product attributes:
- Illumination features: steady lighting, flashing, pulses, rotations, colour changes
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 1 COMPONENTS:
Gamme de produits
- Type of module:
- 6 Push buttons
- Product variant:
- SUPER (CAN, RGB LED)
Front
- Front form:
- Rectangular
Montage
- Design:
- Raised
- Mounting cut-out:
- 107.1 mm x 68.8 mm
- Mounting type:
- Clip in & screw in
Partie commande/affichage
- Halo ring illumination:
- RGB
- Symbol:
- No Symbol
- Marking symbol colour:
- White
Caractéristiques électriques
- Operating voltage:
- 8 - 32 V DC
- Communication interface:
- J1939
- PCBA Version:
- LoadDump B
Caractéristiques mécaniques
- Terminal:
- Deutsch DT04-6P
- Mechanical lifetime:
- 2 Mil. cycles of operation
- Operating force:
- 6.5 N
- Weight:
- 0.206 kg
Conditions environnementales
- IP Protection:
- IP6K7
- Operating temperature:
- – 40 °C … + 85 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificats
- Conformities:
- CE
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Rugged keypads complete, 6PB, 8 - 32 V DC, Deutsch DT04-6P, Rectangular, No Symbol, SUPER (CAN, RGB LED)
- Dimension:
- 114.82 mm x 76.55 mm x 35 mm
- Housing colour:
- Black
- Product attributes:
- Illumination features: steady lighting, flashing, pulses, rotations, colour changes
