Indicator, Series 92, 18,8 mm x 18,8 mm, PCB, IP67, PCB terminal
- 92-143.400
- 92-960.0
- 92-800.042
- 10-2603.3178S
- IP front protection
- Front dimension
- Lens colour
- Illumination colour
Accessoires & gereedschap toevoegen
Uw product:
Assortiment
- HMI function:
- Indicator
- Series:
- Series 92
Voor
- Front dimension:
- 18,8 mm x 18,8 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- PCB
- Mounting cut-out:
- Ø 16 mm
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Yellow
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- White
Elektrische kenmerken
- Operating voltage:
- 2 - 6 V DC
- Lumi. Intensity:
- 500 mcd
Mechanische kenmerken
- Terminal:
- PCB terminal
- Tightening torque:
- Fixing nut max. 0.5 Nm, Fixing screw mounting flange 0.4 Nm
- Totaal gewicht:
- 0.02 kg
Omgevingscondities
- IP front protection:
- IP67
- Operating temperature:
- – 25 °C … + 70 °C
Meer
- Material:
- Plastic
- Housing colour:
- Black
- Housing material:
- Plastic
- Product attributes:
- Tightening torque fixing screw 0.3 Nm
- Wiring diagrams:
Product opslaan of delen
Bestanden downloaden
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 4 COMPONENTS:
Voor
- Front dimension:
- 18,8 mm x 18,8 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- PCB
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Yellow
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
Mechanische kenmerken
- Tightening torque:
- Fixing nut max. 0.5 Nm, Fixing screw mounting flange 0.4 Nm
- Weight:
- 0.019 kg
Omgevingscondities
- IP front protection:
- IP67
- IP Protection:
- IP67 front side
- Operating temperature:
- – 25 °C … + 70 °C
- Storage temperature:
- – 40 °C … + 80 °C
Certificaten
- Approbations:
- CQC
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Actuator, 18,8 mm x 18,8 mm, Flush, Illuminated, Yellow, Plastic, transparent, Square, Black, Plastic, IP67
- Dimension:
- 18.8 mm x 18.8 mm
- Housing colour:
- Black
- Housing material:
- Plastic
- Wiring diagrams:

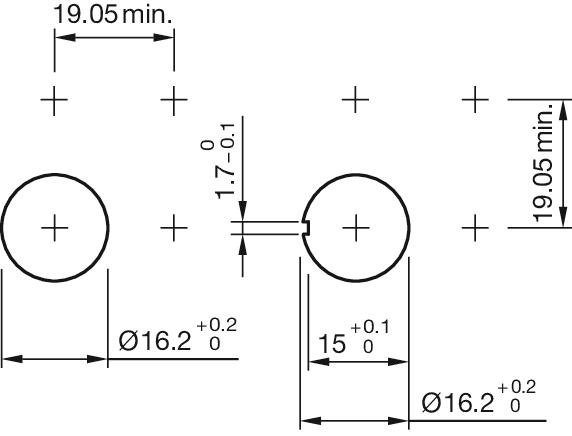

- Mounting cut-outs:

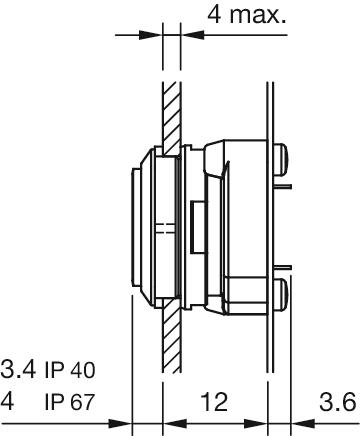

- Dimension drawings:
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Mechanische kenmerken
- Tightening torque:
- 0.4 Nm
- Weight:
- 0.001 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Mounting flange
- Material:
- Plastic
- Product attributes:
- Tightening torque fixing screw 0.3 Nm
- Hints:
- For discrete switching applications including switching element and mounting flange, soldering terminal (assembled PCB incl. series resistor and LED on request)
- Dimension drawings:
for Part No. 92-960.0
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Mechanische kenmerken
- Terminal:
- PCB terminal
- Weight:
- 0 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Indicator element, PCB terminal
- Material:
- Plastic
- Hints:
- The customer has to decide what series resistor shall be used to the LEDLED and mounting flange to be ordered separately
- Wiring diagrams:
- Component layouts:
A = Switching element without illumination
B = Drilling plan (component side)
C = Occupancy plan (component side)
D = Hole for switching element- Dimension drawings:
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Bedienings-/display-eenheid
- Illumination colour:
- White
Elektrische kenmerken
- Operating voltage:
- 2 - 6 V DC
- Lumi. Intensity:
- 500 mcd
Mechanische kenmerken
- Weight:
- 0 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Single-LED, T1 Bi-Pin, White, 2 - 6 V DC
- Kind of iIllumination:
- Single-LED
- Hints:
- The customer has to decide what series resistor shall be used to the LEDLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:
- Component layouts:
Bestanden downloaden
Waar te koop
