Indicator ring illumination PCB standard, Series 84, Ø 25 mm, Flush, IP65, IP67, PCB terminal
- 84-7205.800A
- 84-0080.7
- 92-800.042
- 10-2603.3178S
- 92-960.0
- Lens colour
- Lens shape
- Illumination colour
Accessoires & gereedschap toevoegen
Uw product:
Assortiment
- HMI function:
- Indicator
- Series:
- Series 84
Voor
- Front dimension:
- Ø 25 mm
- Front form:
- Round
- Front bezel colour:
- Colourless
- Front bezel material:
- Plastic
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Nature
- Lens material:
- Aluminium
- Lens illumination:
- Non illuminated
- Lens shape:
- Flush
- Lens optics:
- opaque
- Lens type:
- Raised above front bezel
- Symbol:
- No Symbol
- Illumination colour:
- White
Elektrische kenmerken
- Operating voltage:
- 2 - 6 V DC
- Lumi. Intensity:
- 500 mcd
Mechanische kenmerken
- Terminal:
- PCB terminal
- Tightening torque:
- Fixing nut 0.8 Nm
- Totaal gewicht:
- 0.011 kg
Omgevingscondities
- IP front protection:
- IP65, IP67
- Operating temperature:
- – 25 °C … + 70 °C
Meer
- Material:
- Plastic
- Product attributes:
- Tightening torque fixing screw 0.3 Nm
- max. number of switching elements:
- 1
- Wiring diagrams:
Product opslaan of delen
Bestanden downloaden
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 5 COMPONENTS:
Voor
- Front form:
- Round
Bedienings-/display-eenheid
- Lens colour:
- Nature
- Lens material:
- Aluminium
- Lens illumination:
- Non illuminated
- Lens shape:
- Flush
- Lens optics:
- opaque
- Lens type:
- Raised above front bezel
- Symbol:
- No Symbol
Mechanische kenmerken
- Weight:
- 0.003 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Lens, Ø 19.7 mm, Non illuminated, No Symbol, Nature, Flush, Aluminium
- Dimension:
- Ø 19.7 mm
- Hints:
- The colour of anodised aluminium parts can vary due to technical production reasons
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Voor
- Front dimension:
- Ø 25 mm
- Front form:
- Round
- Front bezel colour:
- Colourless
- Front bezel material:
- Plastic
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Mechanische kenmerken
- Tightening torque:
- Fixing nut 0.8 Nm
- Weight:
- 0.007 kg
Omgevingscondities
- IP front protection:
- IP65, IP67
- IP Protection:
- IP65, IP67
- Operating temperature:
- – 25 °C … + 70 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Climate resistance:
- Damp heat, cyclic: 96 hours, + 25 °C/97 %, + 55 °C/93 % relative humidity, as per EN IEC 60068-2-30Damp heat, steady: 56 days, + 40 °C/93 % relative humidity, according to EN IEC 60068-2-78Rapid change of temperature: 100 cycles, – 40 °C … + 80 °C, as per EN / IEC 60068-2-14
Certificaten
- Approbations:
- EBC (TSI PRM), NFF
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Actuator, Ø 22.5 mm, Ø 25 mm, Round, Colourless, Plastic, transparent, IP65, IP67
- Hints:
- The mini TOP LEDs are not part of delivery. Recommendation: Osram Hyper Mini TOP LED
- Description component:
- Material housing actuator: Plastic as per UL94 V0
- Wiring diagrams:

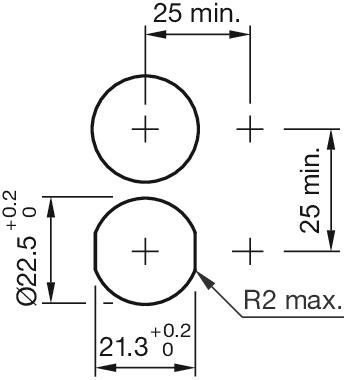

- Mounting cut-outs:

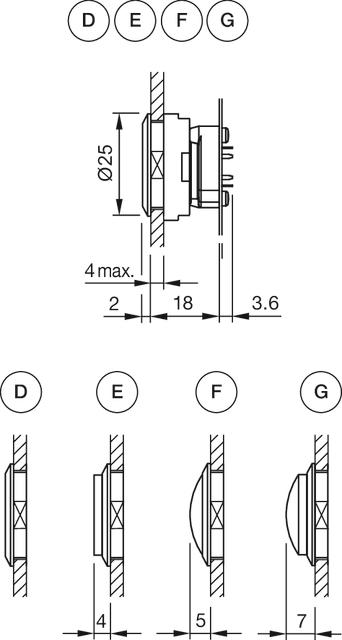

- Dimension drawings:
D = Lens level with bezel
E = Lens raised above bezel
F = Lens konvexe level with bezel
G = Lens convexe raised above bezel
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Mechanische kenmerken
- Terminal:
- PCB terminal
- Weight:
- 0 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Indicator element, PCB terminal
- Material:
- Plastic
- Hints:
- The customer has to decide what series resistor shall be used to the LEDLED and mounting flange to be ordered separately
- Wiring diagrams:

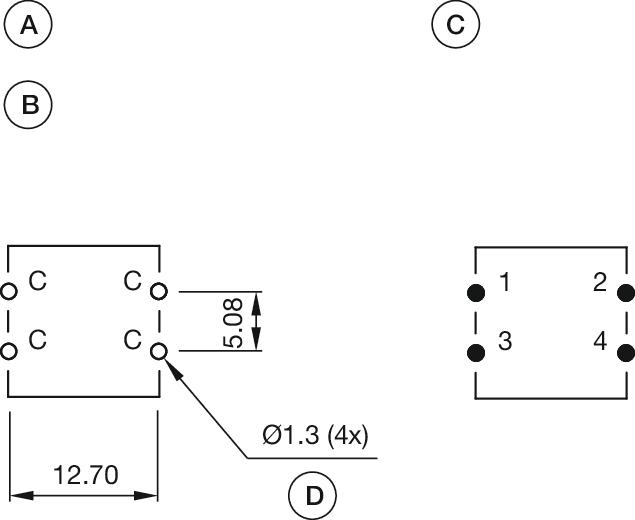

- Component layouts:
A = Switching element without illumination
B = Drilling plan (component side)
C = Occupancy plan (component side)

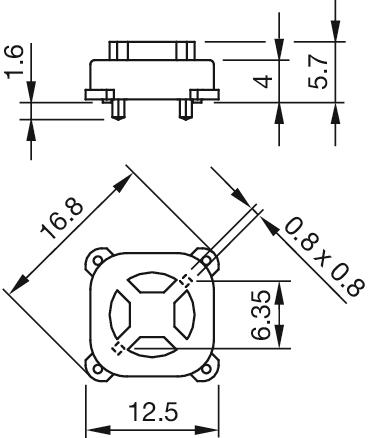

D = Hole for switching element- Dimension drawings:
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Bedienings-/display-eenheid
- Illumination colour:
- White
Elektrische kenmerken
- Operating voltage:
- 2 - 6 V DC
- Lumi. Intensity:
- 500 mcd
Mechanische kenmerken
- Weight:
- 0 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Single-LED, T1 Bi-Pin, White, 2 - 6 V DC
- Kind of iIllumination:
- Single-LED
- Hints:
- The customer has to decide what series resistor shall be used to the LEDLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:

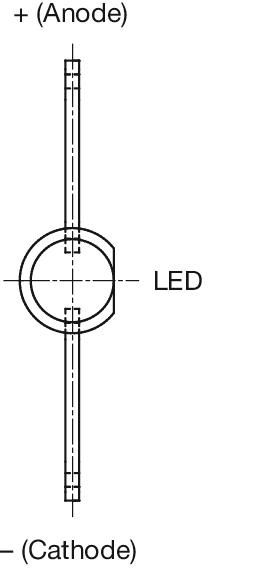

- Component layouts:
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Mechanische kenmerken
- Tightening torque:
- 0.4 Nm
- Weight:
- 0.001 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Mounting flange
- Material:
- Plastic
- Product attributes:
- Tightening torque fixing screw 0.3 Nm
- Hints:
- For discrete switching applications including switching element and mounting flange, soldering terminal (assembled PCB incl. series resistor and LED on request)

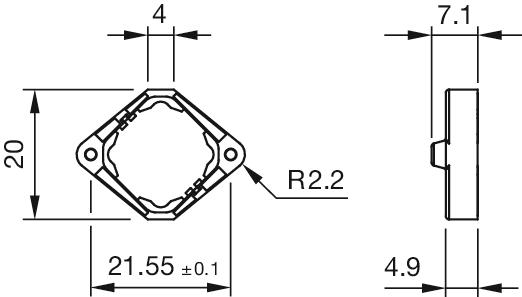

- Dimension drawings:
for Part No. 92-960.0
Bestanden downloaden
Waar te koop
