Assembly settings
Gamma di prodotti
Disponibilità online
No
no
scegliere ...
Anteriore
Front form
Square
Square
scegliere ...
Front bezel colour
Grey
Grey
scegliere ...
Front bezel material
Plastic
Plastic
scegliere ...
Front dimension
30 mm x 30 mm
30 mm x 30 mm
scegliere ...
Montaggio
Design
Raised
Raised
scegliere ...
Mounting type
Panel mounting
Panel mounting
scegliere ...
Mounting cut-out
Ø 22 mm
Ø 22 mm
scegliere ...
Unità operativa/display
Lens shape
Flush
Flush
scegliere ...
Lens colour
Colourless
Colourless
scegliere ...
Lens material
Plastic
Plastic
scegliere ...
Lens illumination
Illuminated
Illuminated
scegliere ...
Marking plate optics
translucent
translucent
scegliere ...
Illumination colour
Red
Red
scegliere ...
Marking plate illumination
illuminative
illuminative
scegliere ...
Caratteristiche elettriche
Operating voltage kind of
V AC/DC
V AC/DC
scegliere ...
Operating voltage
72 V
72 V
scegliere ...
Caratteristiche meccaniche
Terminal
Double plug-in terminal, 6.3 x 0.8 mm
Double plug-in terminal, 6.3 x 0.8 mm
scegliere ...
Switching positions
2 positions
2 positions
scegliere ...
Condizioni ambientali
IP front protection
IP65
IP65
scegliere ...
Di più
Material
Plastic
Plastic
scegliere ...
Indietro
Indicator front illumination, Series 04, 30 mm x 30 mm, Raised, IP65, Double plug-in terminal, 6.3 x 0.8 mm
- 704.702.7
- 704.709.9
- 704.733.1
- 704.701.6
- 704.950.5
- 704.950.2/D
- 10-4H21.1032P
- Lens colour
- Front bezel colour
- Material
- Terminal
- Operating voltage kind of
- Operating voltage
- Illumination colour
Aggiungere accessori e strumenti
Il vostro prodotto:
Gamma di prodotti
- HMI function:
- Indicator
- Serie:
- Series 04
Anteriore
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
- Front bezel colour:
- Grey
- Front bezel material:
- Plastic
Montaggio
- Design:
- Raised
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Unità operativa/display
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
- Illumination colour:
- Red
Caratteristiche elettriche
- Operating voltage:
- 72 V AC/DC
- Operation current:
- 2,2 mA -30%/+25%
- Lumi. Intensity:
- 4 x 128 mcd
Caratteristiche meccaniche
- Terminal:
- Double plug-in terminal, 6.3 x 0.8 mm
- Switching positions:
- 2 positions
- Tightening torque:
- Max. 0.40 … 0.50 Nm
- Peso totale:
- 0.039 kg
Condizioni ambientali
- IP front protection:
- IP65
- Operating temperature:
- – 40 °C … + 55 °C
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Di più
- Material:
- Plastic
- Housing colour:
- Grey
- Housing material:
- Plastic
- Product attributes:
- Can be marked
- Wiring diagrams:
Salvare o raccomandare prodotti
Scarica i file
Aggiungi al carrello
Il prodotto è composto da quanto segue 7 COMPONENTS:
Anteriore
- Front form:
- Square
Unità operativa/display
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
Caratteristiche meccaniche
- Weight:
- 0.001 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Lens, 24.4 mm x 24.4 mm, Illuminated, Colourless, Flush, Plastic
- Dimension:
- 24.4 mm x 24.4 mm
Scarica i file
Dove acquistare
Aggiungi al carrello
Unità operativa/display
- Lens colour:
- White
- Lens illumination:
- Illuminated
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
Caratteristiche meccaniche
- Weight:
- 0.003 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Lens holder, illuminative, White, translucent, 30 mm x 30 mm
- Dimension:
- 30 mm x 30 mm
- Product attributes:
- Can be marked
- Hints:
- For square lens
Scarica i file
Dove acquistare
Aggiungi al carrello
Anteriore
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
Montaggio
- Design:
- Raised
- Mounting type:
- Panel mounting
Caratteristiche elettriche
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Caratteristiche meccaniche
- Weight:
- 0.008 kg
Condizioni ambientali
- IP Protection:
- IP65 front side
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Actuator, 30 mm x 30 mm, Square
- Housing colour:
- Grey
- Housing material:
- Plastic
- Wiring diagrams:

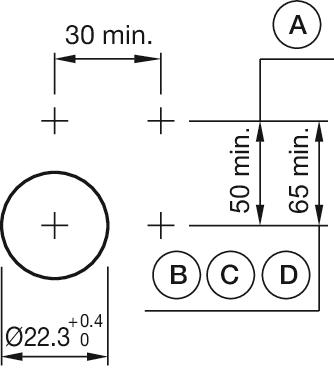

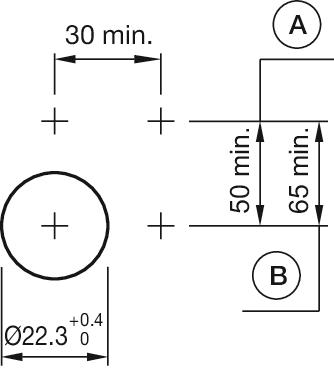

- Mounting cut-outs:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
A = Screw terminal

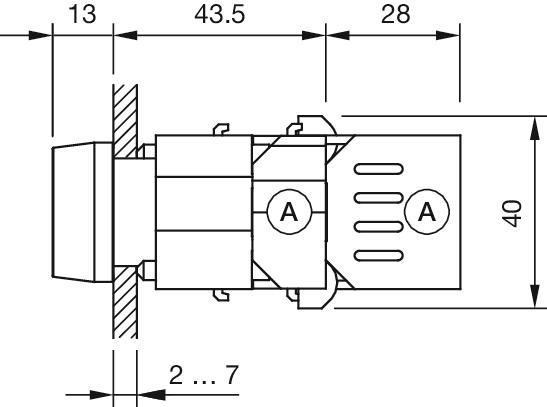

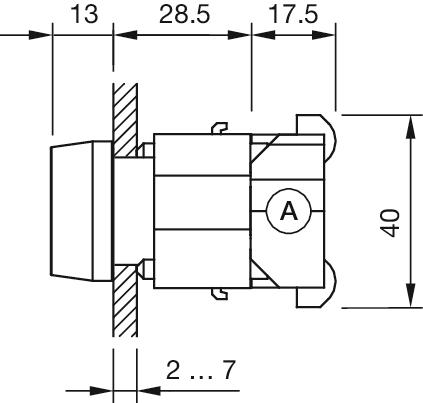

B = Push-in terminal (PIT)- Dimension drawings:
X = Screw terminal
A = Screw terminal
Scarica i file
Dove acquistare
Aggiungi al carrello
Anteriore
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
- Front bezel colour:
- Grey
- Front bezel material:
- Plastic
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Weight:
- 0.002 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Front bezel, 30 mm x 30 mm, Grey, Plastic
- Dimension:
- 30 mm x 30 mm
Scarica i file
Dove acquistare
Aggiungi al carrello
Montaggio
- Mounting type:
- Panel mounting
Caratteristiche meccaniche
- Tightening torque:
- Max. 0.40 … 0.50 Nm
- Weight:
- 0.01 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Bayonet flange, Plastic
- Material:
- Plastic
- Dimension drawings:
for Part No. 704.950.5
Scarica i file
Dove acquistare
Aggiungi al carrello
Caratteristiche elettriche
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1/DIN EN 60947-5-1
Caratteristiche meccaniche
- Terminal:
- Double plug-in terminal, 6.3 x 0.8 mm
- Switching positions:
- 2 positions
- Wire cross section:
- Double plug-in terminal 2 x 6.3 mm x 0.8 mm
- Weight:
- 0.013 kg
Condizioni ambientali
- IP Protection:
- IP00
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 300 m/s², pulse width 11 ms (sinusoidal EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Relative humidity, max. 95%, non-condensing
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Lamp block, Plastic, Double plug-in terminal, 6.3 x 0.8 mm
- Housing material:
- Plastic
- Product attributes:
- Terminals nickel plated Cu/Sn
- Hints:
- When using the lamp block, the application guidelines must be observed.

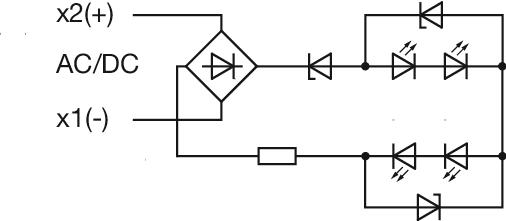

- Wiring diagrams:

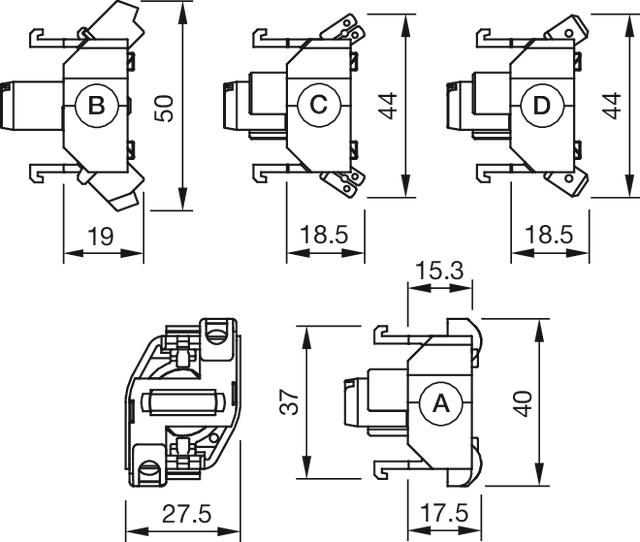

- Dimension drawings:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
Scarica i file
Dove acquistare
Aggiungi al carrello
Unità operativa/display
- Illumination colour:
- Red
Caratteristiche elettriche
- Operating voltage:
- 72 V AC/DC
- Operation current:
- 2,2 mA -30%/+25%
- Lumi. Intensity:
- 4 x 128 mcd
Caratteristiche meccaniche
- Weight:
- 0.002 kg
Certificati
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Di più
- Short Description:
- Single-LED, BA9s, Red, 72 V AC/DC
- Kind of iIllumination:
- Multi-LED EN 50155
- Hints:
- A suitable LED remover Part No. 700.006.0The luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CThe specified 72 and 110 VAC/VDC versions are built with a bridge rectifierThe specified 72 and 110 VAC/VDC versions are built with a protection diodeIn case one LED fails, the other pair of still functioning LED›s is working. The light output then is half in order to indicate the malfunction and shows this way the need for replacementLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:

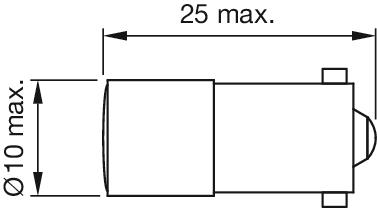

- Dimension drawings:
