Assembly settings
Gamme de produits
Disponibilité en ligne
Non
no
choisir ...
Front
Front form
Square
Square
choisir ...
Front bezel colour
Black
Black
choisir ...
Front bezel material
Plastic
Plastic
choisir ...
Front dimension
30 mm x 30 mm
30 mm x 30 mm
choisir ...
Montage
Design
Raised
Raised
choisir ...
Mounting type
Panel mounting
Panel mounting
choisir ...
Mounting cut-out
Ø 22 mm
Ø 22 mm
choisir ...
Partie commande/affichage
Lens shape
Flush
Flush
choisir ...
Lens colour
Blue
Blue
choisir ...
Lens material
Plastic
Plastic
choisir ...
Lens illumination
Illuminated
Illuminated
choisir ...
Marking plate optics
translucent
translucent
choisir ...
Illumination colour
Blue
Blue
choisir ...
Marking plate illumination
illuminative
illuminative
choisir ...
Caractéristiques électriques
Operating voltage kind of
V DC
V DC
choisir ...
Operating voltage
24 - 30 V
24 - 30 V
choisir ...
Caractéristiques mécaniques
Terminal
Push-in terminal
Push-in terminal
choisir ...
Switching positions
2 positions
2 positions
choisir ...
Conditions environnementales
IP front protection
IP65
IP65
choisir ...
Autres
Material
Plastic
Plastic
choisir ...
Retour
Flasher front illumination, Series 04, 30 mm x 30 mm, Raised, IP65, Push-in terminal
- 704.702.6
- 704.709.9
- 704.733.0
- 704.701.0
- 704.950.5
- 704.950.3
- 10-2H13.3166Q
- 704.943.5
- Lens colour
- Front bezel colour
- Material
- Terminal
- Operating voltage
- Illumination colour
- Operating voltage kind of
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Flasher
- Séries:
- Series 04
Front
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Blue
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
- Illumination colour:
- Blue
Caractéristiques électriques
- Operating voltage:
- 24 - 30 V DC +10%
- Operation current:
- 12 - 18 mA ±15 %
- Lumi. Intensity:
- 560 - 800 mcd
Caractéristiques mécaniques
- Terminal:
- Push-in terminal
- Switching positions:
- 2 positions
- Tightening torque:
- Max. 0.40 … 0.50 Nm
- Poids total:
- 0.064 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 40 °C … + 55 °C
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Autres
- Material:
- Plastic
- Housing colour:
- Black
- Housing material:
- Plastic
- Product attributes:
- Can be marked
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 8 COMPONENTS:
Front
- Front form:
- Square
Partie commande/affichage
- Lens colour:
- Blue
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
Caractéristiques mécaniques
- Weight:
- 0.001 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Lens, 24.4 mm x 24.4 mm, Illuminated, Blue, Flush, Plastic
- Dimension:
- 24.4 mm x 24.4 mm
Télécharger des fichiers
Où acheter
Ajouter au panier
Partie commande/affichage
- Lens colour:
- White
- Lens illumination:
- Illuminated
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
Caractéristiques mécaniques
- Weight:
- 0.003 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Lens holder, illuminative, White, translucent, 30 mm x 30 mm
- Dimension:
- 30 mm x 30 mm
- Product attributes:
- Can be marked
- Hints:
- For square lens
Télécharger des fichiers
Où acheter
Ajouter au panier
Front
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
Montage
- Design:
- Raised
- Mounting type:
- Panel mounting
Caractéristiques électriques
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Caractéristiques mécaniques
- Weight:
- 0.008 kg
Conditions environnementales
- IP Protection:
- IP65 front side
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, 30 mm x 30 mm, Square
- Housing colour:
- Black
- Housing material:
- Plastic
- Wiring diagrams:
- Mounting cut-outs:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
A = Screw terminal
B = Push-in terminal (PIT)- Dimension drawings:
A = Screw terminal
X = Screw terminal
Télécharger des fichiers
Où acheter
Ajouter au panier
Front
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Mounting type:
- Panel mounting
Caractéristiques mécaniques
- Weight:
- 0.002 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Front bezel, 30 mm x 30 mm, Black, Plastic
- Dimension:
- 30 mm x 30 mm
Télécharger des fichiers
Où acheter
Ajouter au panier
Montage
- Mounting type:
- Panel mounting
Caractéristiques mécaniques
- Tightening torque:
- Max. 0.40 … 0.50 Nm
- Weight:
- 0.01 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Bayonet flange, Plastic
- Material:
- Plastic
- Dimension drawings:
for Part No. 704.950.5
Télécharger des fichiers
Où acheter
Ajouter au panier
Caractéristiques électriques
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1/DIN EN 60947-5-1
Caractéristiques mécaniques
- Terminal:
- Push-in terminal
- Switching positions:
- 2 positions
- Wire cross section:
- Max. wire cross-section 2 wires with 1 mmSkinning wire 8 mmMax. wire cross-section of stranded cable 2 x 0.75 mm²use stranded wires only with wire end ferrules of 8 mm lengthOnly one polarity is allowed on each side when wiring.
- Weight:
- 0.015 kg
Conditions environnementales
- IP Protection:
- IP20
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- Max. 300 m/s², pulse width 11 ms (sinusoidal EN IEC 60068-2-27)
- Vibration resistance:
- Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
- Climate resistance:
- Relative humidity, max. 95%, non-condensing
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Lamp block, Plastic, Push-in terminal
- Housing material:
- Plastic
- Hints:
- When using the lamp block, the application guidelines must be observed.

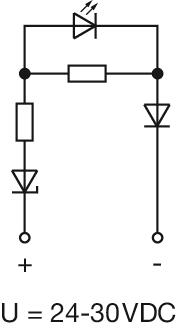

- Wiring diagrams:

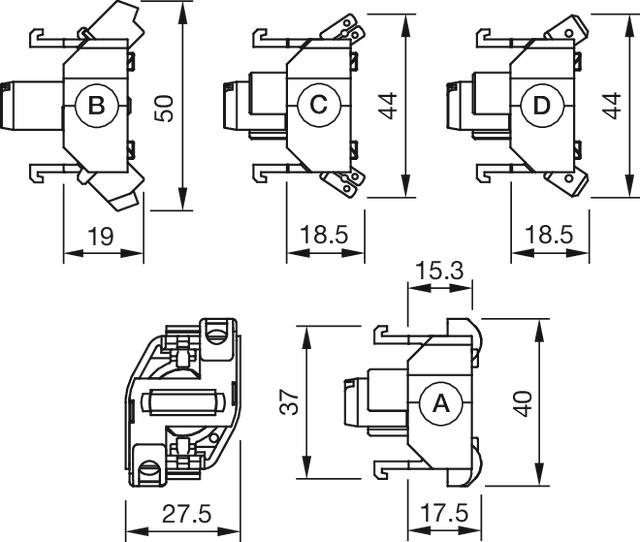

- Dimension drawings:
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
Télécharger des fichiers
Où acheter
Ajouter au panier
Partie commande/affichage
- Illumination colour:
- Blue
Caractéristiques électriques
- Operating voltage:
- 24 - 30 V DC +10%
- Operation current:
- 12 - 18 mA ±15 %
- Lumi. Intensity:
- 560 - 800 mcd
Caractéristiques mécaniques
- Weight:
- 0.002 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Single-LED, BA9s, Blue, 24 - 30 V DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LEDElectrical and optical data are measured at 25 °CThe specified 12, 24, 28, 48 VAC/DC versions are built with a bridge rectifier
- Wiring diagrams:

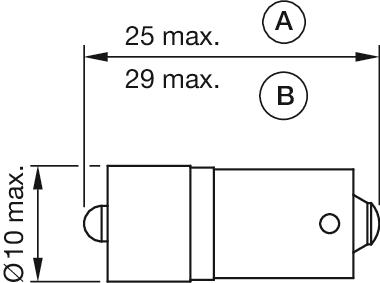

- Dimension drawings:
A = (standard)
B = (super bright)
Télécharger des fichiers
Où acheter
Ajouter au panier
Caractéristiques électriques
- Operating voltage:
- 24 V AC/DC ±15 %
- Operation current:
- 10 - 85 mA
Caractéristiques mécaniques
- Terminal:
- Screw terminal
- Weight:
- 0.023 kg
Conditions environnementales
- IP Protection:
- IP30 rear side
- Operating temperature:
- 0 °C … + 50 °C
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Flasher element, 24 V AC/DC ±15 %, Screw terminal
- Housing material:
- Plastic, according to UL 94 V0
- Product attributes:
- Lamp voltage/-current 24 V, 10 ... 85 mA
- Wiring diagrams:
- Dimension drawings:
A = Screw terminal
Push-in terminal (PIT)
