Signaalarmatuur
https://www.eao.com/p/fe014f98

Flasher front illumination, Series 04, Ø 29 mm, Raised, IP65, Screw terminal

  • 704.602.7
  • 704.609.9
  • 704.633.1
  • 704.600.1A
  • 704.950.5
  • 704.950.0
  • 10-2412.1089P
  • 704.943.5

  • Lens type
  • Lens illumination
  • Lens colour
704.602.7
  • Marking plate illumination
  • Marking plate optics
  • Marking plate colour
704.609.9
704.633.1
  • Front bezel colour
  • Front bezel material
704.600.1A
  • Material
704.950.5
  • Terminal
704.950.0
  • Operating voltage kind of
  • Operating voltage
  • Illumination colour
10-2412.1089P
704.943.5
Accessoires & gereedschap toevoegen
Ter vergelijking toevoegen
Toevoegen aan winkelwagentje
Uw product:
704.602.7
704.609.9
704.633.1
704.600.1A
704.950.5
704.950.0
10-2412.1089P
704.943.5

704.602.7~10-2412.1089P~704.600.1A~704.609.9~704.633.1~704.943.5~704.950.0~704.950.5

Flasher front illumination, Series 04, Ø 29 mm, Raised, IP65, Screw terminal

Assortiment
HMI function:
Flasher
Series:
Series 04
Voor
Front dimension:
Ø 29 mm
Front form:
Round
Front bezel colour:
Black
Front bezel material:
Aluminium
Montage
Design:
Raised
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Bedienings-/display-eenheid
Lens colour:
Colourless
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Lens type:
Level with front bezel
Marking plate colour:
White
Marking plate optics:
translucent
Marking plate illumination:
illuminative
Illumination colour:
White
Shape of illumination:
Front
Elektrische kenmerken
Operating voltage:
24 V AC/DC -30% / +25%
Operation current:
7,5 mA -30%/+25%
Lumi. Intensity:
700 mcd
Mechanische kenmerken
Terminal:
Screw terminal
Switching positions:
2 positions
Tightening torque:
Max. 0.40 … 0.50 Nm
Totaal gewicht:
0.064 kg
Omgevingscondities
IP front protection:
IP65
Operating temperature:
– 40 °C … + 55 °C
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Meer
Material:
Plastic
Housing colour:
Grey
Housing material:
Plastic
Product attributes:
Lamp voltage/-current 24 V, 10 ... 85 mA
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Wiring diagrams
Wiring diagrams
Product opslaan of delen
Bestanden downloaden
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 8 COMPONENTS:
704.602.7

704.602.7

Lens

Voor
Front form:
Round
Bedienings-/display-eenheid
Lens colour:
Colourless
Lens material:
Plastic
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Lens type:
Level with front bezel
Shape of illumination:
Front
Mechanische kenmerken
Weight:
0.001 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Lens, Ø 23.7 mm, Illuminated, Colourless, Flush, Plastic
Dimension:
Ø 23.7 mm
Hints:
To obtain IP67, use marking plate Part No. 704.609.9
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
704.609.9

704.609.9

Marking plate

Bedienings-/display-eenheid
Marking plate colour:
White
Marking plate optics:
translucent
Marking plate illumination:
illuminative
Mechanische kenmerken
Weight:
0 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Marking plate, Ø 20 mm, illuminative, White, Plastic, translucent
Dimension:
Ø 20 mm
Hints:
for lens round flat
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
704.633.1

704.633.1

Actuator

Montage
Mounting type:
Panel mounting
Elektrische kenmerken
Standards:
The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Mechanische kenmerken
Weight:
0.008 kg
Omgevingscondities
IP Protection:
IP65 front side
Operating temperature:
– 40 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Actuator
Housing colour:
Grey
Housing material:
Plastic
Wiring diagrams:
Wiring diagrams
Mounting cut-outs:
Mounting cut-outs
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
Mounting cut-outs
A = Screw terminal
B = Push-in terminal (PIT)
Mounting cut-outs
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
Mounting cut-outs
A = Screw terminal
B = Push-in terminal (PIT)
Dimension drawings:
Dimension drawings
A = Screw terminal
Dimension drawings
X = Screw terminal
Dimension drawings
A = Screw terminal
Dimension drawings
A = Screw terminal
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
704.600.1A

704.600.1A

Front bezel

Voor
Front dimension:
Ø 29 mm
Front form:
Round
Front bezel colour:
Black
Front bezel material:
Aluminium
Montage
Mounting type:
Panel mounting
Mechanische kenmerken
Weight:
0.005 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Front bezel, Ø 29 mm, Black, Aluminium
Dimension:
Ø 29 mm
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
704.950.5

704.950.5

Bayonet flange

Montage
Mounting type:
Panel mounting
Mechanische kenmerken
Tightening torque:
Max. 0.40 … 0.50 Nm
Weight:
0.01 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Bayonet flange, Plastic
Material:
Plastic
Dimension drawings:
Dimension drawings
for Part No. 704.950.5
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
704.950.0

704.950.0

Lamp block

Elektrische kenmerken
Standards:
The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1/DIN EN 60947-5-1
Mechanische kenmerken
Terminal:
Screw terminal
Switching positions:
2 positions
Tightening torque:
Screw terminal 0.5 Nm
Wire cross section:
Max. wire cross-section 2 mm x 2.5 mm²
Skinning wire 10 mm
Max. wire cross-section of stranded cable 2 x 1.5 mm²
use stranded wires only with wire end ferrules of 10 mm length
Only one polarity is allowed on each side when wiring.
Weight:
0.016 kg
Omgevingscondities
IP Protection:
IP00
Operating temperature:
– 40 °C … + 55 °C
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
Max. 300 m/s², pulse width 11 ms (sinusoidal EN IEC 60068-2-27)
Vibration resistance:
Max. 100 m / s² from 10 Hz ... 500 Hz, (sinusoidal EN IEC 60068-2-6)
Climate resistance:
Relative humidity, max. 95%, non-condensing
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Lamp block, Plastic, Screw terminal
Housing material:
Plastic
Hints:
When using the lamp block, the application guidelines must be observed.
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
A = Screw terminal
B = Push-in terminal (PIT)
C = Plug-in terminal 6.3 mm x 0.8 mm
D = Double plug-in terminal 6.3 mm x 0.8 mm
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
10-2412.1089P

10-2412.1089P

Single-LED

Bedienings-/display-eenheid
Illumination colour:
White
Elektrische kenmerken
Operating voltage:
24 V AC/DC -30% / +25%
Operation current:
7,5 mA -30%/+25%
Lumi. Intensity:
700 mcd
Mechanische kenmerken
Weight:
0.001 kg
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Single-LED, BA9s, White, 24 V AC/DC -30% / +25%
Kind of iIllumination:
Multi-LED EN 50155
Hints:
A suitable LED remover Part No. 700.006.0
The luminous intensity stated is for when used with DC
Electrical and optical data are measured at 25 °C
The specified 24 VAC/VDC versions are built with a protection diode
Specified 24 VAC/VDC versions are built with a bridge rectifier
The new, white BA9s LED operates within a range of 16VDC to 34VDC. It conforms to the norms EN 50155 and IEEE 1476
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED

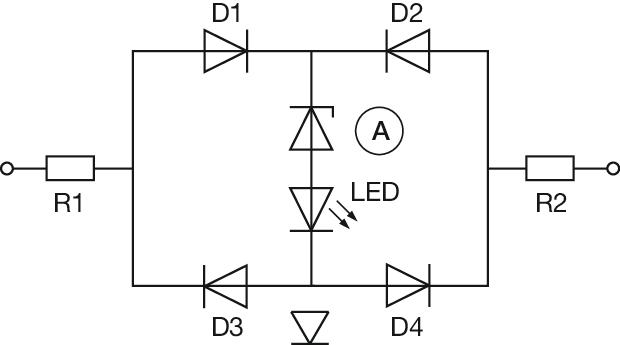

Wiring diagrams:
Wiring diagrams

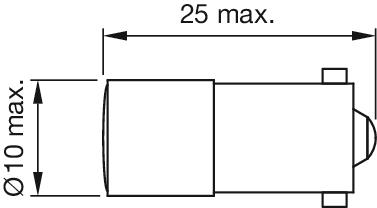

Dimension drawings:
Dimension drawings
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
704.943.5

704.943.5

Flasher element

Elektrische kenmerken
Operating voltage:
24 V AC/DC ±15 %
Operation current:
10 - 85 mA
Mechanische kenmerken
Terminal:
Screw terminal
Weight:
0.023 kg
Omgevingscondities
IP Protection:
IP30 rear side
Operating temperature:
0 °C … + 50 °C
Certificaten
REACH:
REACH compliant
RoHS:
RoHS compliant
Meer
Short Description:
Flasher element, 24 V AC/DC ±15 %, Screw terminal
Housing material:
Plastic, according to UL 94 V0
Product attributes:
Lamp voltage/-current 24 V, 10 ... 85 mA
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
A = Screw terminal
Push-in terminal (PIT)
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Cookie toestemming
Onze website maakt gebruik van cookies. Voor meer informatie over cookies op deze website verwijzen wij u naar onze Privacybeleid en kunt u meer over ons lezen in de Legal Notice. U kunt de instellingen wijzigen in de Privacybeleid.
Accepteren
Afwijzen
Instellingen beheren
