Indicator front illumination, Series 04, 30 mm x 30 mm, Raised, IP65, Screw terminal
- 704.202.4
- 10-2513.1149
- Front bezel colour
- Lens colour
- Marking plate colour
- Front dimension
- Front form
- Marking plate optics
- Operating voltage
- Illumination colour
- Operating voltage kind of
Accessoires & gereedschap toevoegen
Uw product:
Assortiment
- HMI function:
- Indicator
- Series:
- Series 04
Voor
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
- Front bezel colour:
- Grey
- Front bezel material:
- Plastic
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Yellow
- Lens material:
- Plastic
- Lens shape:
- Flush
- Lens optics:
- transparent
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
- Illumination colour:
- White
Elektrische kenmerken
- Operating voltage:
- 28 V AC/DC +10%
- Operation current:
- 5 mA ±15 %
- Lumi. Intensity:
- 750 mcd
Mechanische kenmerken
- Terminal:
- Screw terminal
- Totaal gewicht:
- 0.042 kg
Omgevingscondities
- IP front protection:
- IP65
- Operating temperature:
- – 40 °C … + 55 °C
Meer
- Housing colour:
- Black
- Housing material:
- Plastic
- Wiring diagrams:
Product opslaan of delen
Bestanden downloaden
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 2 COMPONENTS:
Voor
- Front dimension:
- 30 mm x 30 mm
- Front form:
- Square
- Front bezel colour:
- Grey
- Front bezel material:
- Plastic
Montage
- Design:
- Raised
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Yellow
- Lens material:
- Plastic
- Lens shape:
- Flush
- Lens optics:
- transparent
- Marking plate colour:
- White
- Marking plate optics:
- translucent
- Marking plate illumination:
- illuminative
Elektrische kenmerken
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Mechanische kenmerken
- Terminal:
- Screw terminal
- Weight:
- 0.04 kg
Omgevingscondities
- IP Protection:
- IP65 front side
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Actuator, 30 mm x 30 mm, Flush, Yellow, Plastic, transparent, Square, Grey, Plastic, Screw terminal
- Housing colour:
- Black
- Housing material:
- Plastic
- Hints:
- Filament lamp or LED
- Wiring diagrams:

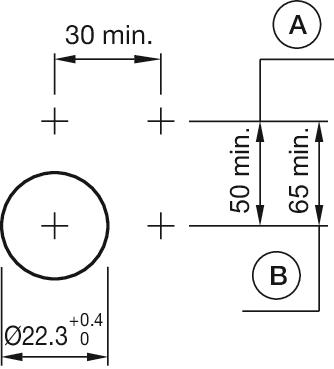

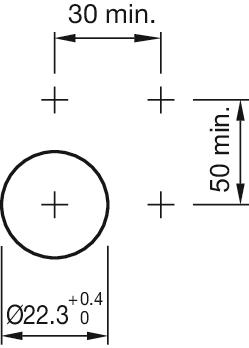

- Mounting cut-outs:
A = Screw terminal

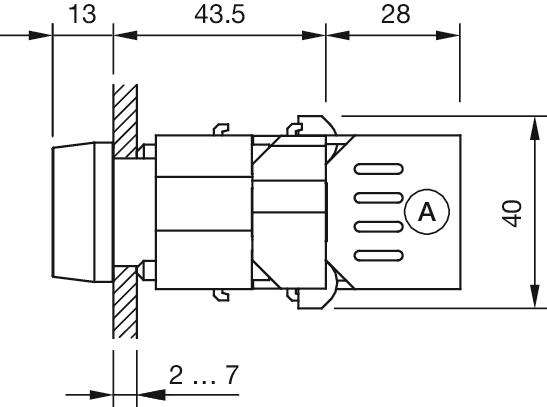

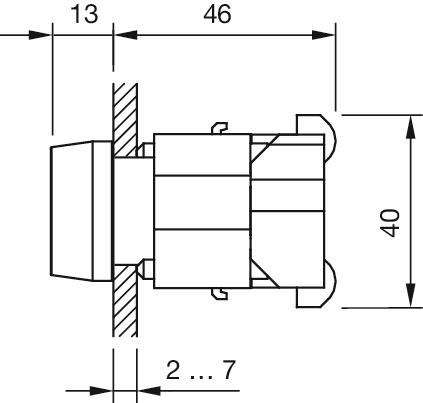

B = Push-in terminal (PIT)- Dimension drawings:
A = Screw terminal
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Bedienings-/display-eenheid
- Illumination colour:
- White
Elektrische kenmerken
- Operating voltage:
- 28 V AC/DC +10%
- Operation current:
- 5 mA ±15 %
- Lumi. Intensity:
- 750 mcd
Mechanische kenmerken
- Weight:
- 0.002 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Single-LED, BA9s, White, 28 V AC/DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- The specified 6 V DC, 24 V DC Bi-colour; 130 V AC, 130 V DC and 230 V AC versions are built with a protection diodeThe specified 12, 24, 28, 48 VAC/DC versions are built with a bridge rectifierThe specified 130 VAC types are developed to run on a supply voltage of 130 VAC onlyAn operation at a higher supply voltage using commercial lampholders with integrated resistors, is not approvedIf the 24VDC Bi-colour lamp is driven with normal polarity (plus on middle contact of the lamp) the first mentioned colour will light up, with inverted polarity the second colour will ligth upThe luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:

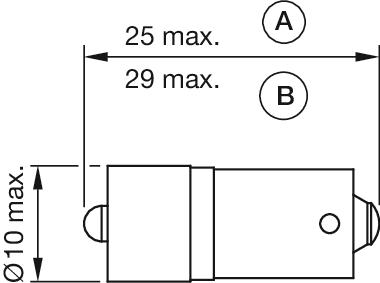

- Dimension drawings:
A = (standard)
B = (super bright)
