Indicator full-face illumination, Series 04, Ø 29 mm, Raised, IP65, Screw terminal
- 704.000.5
- 10-2513.1149
- Front dimension
- Front form
- Lens cap colour
- Operating voltage
- Illumination colour
- Operating voltage kind of
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Indicator
- Séries:
- Series 04
Front
- Front dimension:
- Ø 29 mm
- Front form:
- Round
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 22.5 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens cap colour:
- Green
- Lens cap material:
- Plastic
- Lens cap optical effect:
- transparent
- Marking cap colour:
- White
- Illumination colour:
- White
Caractéristiques électriques
- Operating voltage:
- 28 V AC/DC +10%
- Operation current:
- 5 mA ±15 %
- Lumi. Intensity:
- 750 mcd
Caractéristiques mécaniques
- Terminal:
- Screw terminal
- Poids total:
- 0.034 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 40 °C … + 55 °C
Autres
- Housing colour:
- Grey
- Housing material:
- Plastic
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 2 COMPONENTS:
Front
- Front dimension:
- Ø 29 mm
- Front form:
- Round
Montage
- Design:
- Raised
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens cap colour:
- Green
- Lens cap material:
- Plastic
- Lens cap optical effect:
- transparent
- Marking cap colour:
- White
- Marking cap optics:
- translucent
Caractéristiques électriques
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” DIN EN 60947-1
Caractéristiques mécaniques
- Terminal:
- Screw terminal
- Weight:
- 0.032 kg
Conditions environnementales
- IP Protection:
- IP65 front side
- Operating temperature:
- – 40 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, Ø 29 mm, Round, Screw terminal
- Housing colour:
- Grey
- Housing material:
- Plastic
- Wiring diagrams:

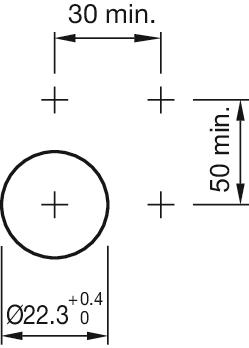

- Mounting cut-outs:
A = Screw terminal
B = Push-in terminal (PIT)

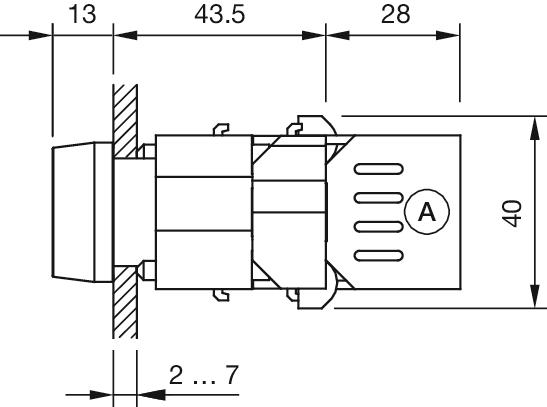

- Dimension drawings:
A = Screw terminal
Télécharger des fichiers
Où acheter
Ajouter au panier
Partie commande/affichage
- Illumination colour:
- White
Caractéristiques électriques
- Operating voltage:
- 28 V AC/DC +10%
- Operation current:
- 5 mA ±15 %
- Lumi. Intensity:
- 750 mcd
Caractéristiques mécaniques
- Weight:
- 0.002 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Single-LED, BA9s, White, 28 V AC/DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- The specified 6 V DC, 24 V DC Bi-colour; 130 V AC, 130 V DC and 230 V AC versions are built with a protection diodeThe specified 12, 24, 28, 48 VAC/DC versions are built with a bridge rectifierThe specified 130 VAC types are developed to run on a supply voltage of 130 VAC onlyAn operation at a higher supply voltage using commercial lampholders with integrated resistors, is not approvedIf the 24VDC Bi-colour lamp is driven with normal polarity (plus on middle contact of the lamp) the first mentioned colour will light up, with inverted polarity the second colour will ligth upThe luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:

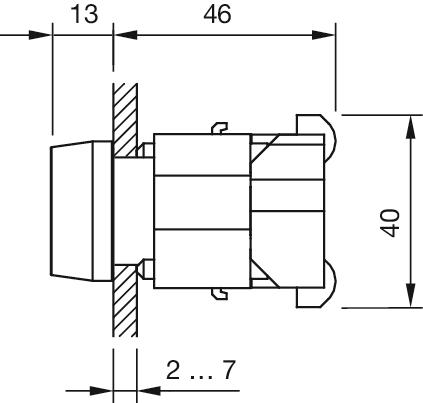

- Dimension drawings:
A = (standard)
B = (super bright)
Télécharger des fichiers
Où acheter
Ajouter au panier
