Indicator with lamp element, Series 61, 24 mm x 24 mm, Flush, IP65, Plug-in terminal, 2.8 x 0.5 mm
- 61-9671.7
- 61-0000.02
- 61-9930.0
- 10-2J09.1064
- Front form
- Lens colour
- Front dimension
- Front bezel colour
- Mounting cut-out
- Operating voltage kind of
- Illumination colour
- Operating voltage
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Indicator
- Séries:
- Series 61
Front
- Front dimension:
- 24 mm x 24 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic, according to UL 94 V0
Montage
- Design:
- Flush
- Mounting cut-out:
- 21 mm x 21 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Colourless
- Lens material:
- Plastic, according to UL 94 V0
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- Yellow
Caractéristiques électriques
- Operating voltage:
- 12 V AC/DC +10%
- Operation current:
- 7 - 14 mA ±15 %
- Lumi. Intensity:
- 280 mcd
Caractéristiques mécaniques
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Tightening torque:
- Max. 0.5 Nm
- Poids total:
- 0.012 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C
Autres
- Housing material:
- Plastic, according to UL 94 V0, self-extinguishing
- Product attributes:
- For indicator illuminated pushbutton and keylock switch
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 4 COMPONENTS:
Front
- Front form:
- Square
Partie commande/affichage
- Lens colour:
- Colourless
- Lens material:
- Plastic, according to UL 94 V0
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
Caractéristiques mécaniques
- Weight:
- 0.002 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Lens, 18 mm x 18 mm, Illuminated, Colourless, Flush, Plastic, according to UL 94 V0
- Dimension:
- 18 mm x 18 mm
Télécharger des fichiers
Où acheter
Ajouter au panier
Montage
- Mounting type:
- Panel mounting
Caractéristiques mécaniques
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Tightening torque:
- Max. 0.5 Nm
- Weight:
- 0.006 kg
Conditions environnementales
- IP Protection:
- IP40 rear side, according to EN IEC 60529, IP67 front side, according to EN IEC 60529
- Operating temperature:
- – 25 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, Plug-in terminal, 2.8 x 0.5 mm
- Housing material:
- Plastic, according to UL 94 V0, self-extinguishing
- Wiring diagrams:

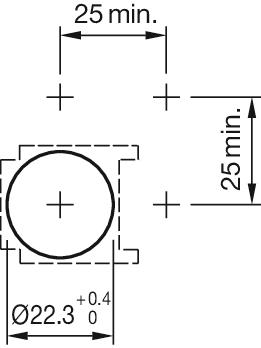

- Mounting cut-outs:

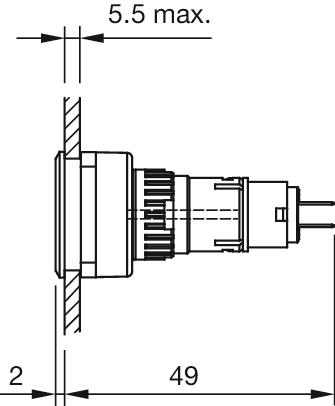

- Dimension drawings:
Télécharger des fichiers
Où acheter
Ajouter au panier
Front
- Front dimension:
- 24 mm x 24 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic, according to UL 94 V0
Montage
- Mounting cut-out:
- 21 mm x 21 mm
- Mounting type:
- Panel mounting
Caractéristiques mécaniques
- Weight:
- 0.003 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Front bezel set, 24 mm x 24 mm, 18 mm x 18 mm, Black, Plastic, according to UL 94 V0
- Dimension:
- 24 mm x 24 mm
- Internal size:
- 18 mm x 18 mm
- Product attributes:
- For indicator illuminated pushbutton and keylock switch

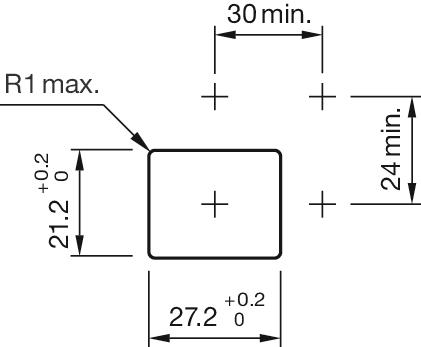

- Mounting cut-outs:
Télécharger des fichiers
Où acheter
Ajouter au panier
Partie commande/affichage
- Illumination colour:
- Yellow
Caractéristiques électriques
- Operating voltage:
- 12 V AC/DC +10%
- Operation current:
- 7 - 14 mA ±15 %
- Lumi. Intensity:
- 280 mcd
Caractéristiques mécaniques
- Weight:
- 0.002 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Single-LED, T1 ¾ MG, Yellow, 12 V AC/DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)When using AC/DC types with AC operation, slight flickering can occurThe luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CThe specified versions are built with a protection diode (halve wave rectifier) in series and the LEDLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LEDWhere supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.Keep to the country specific safety instructions
- Wiring diagrams:

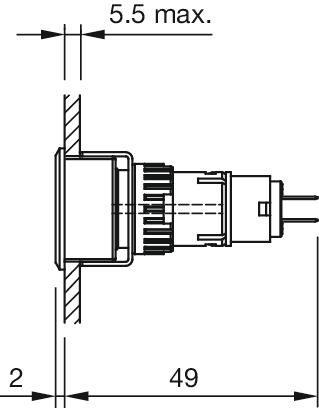

- Dimension drawings:
Télécharger des fichiers
Où acheter
