Indicator without front bezel round, Ø 24 mm, Series 61, Ø 24 mm, Raised, IP65, Plug-in terminal, 2.8 x 0.5 mm
- 61-9642.7
- 61-0040.02
- 61-9600.1
- 10-2J09.1069
- Lens colour
- Front bezel colour
- Operating voltage kind of
- Illumination colour
- Operating voltage
Accessoires & gereedschap toevoegen
Uw product:
Assortiment
- HMI function:
- Indicator
- Series:
- Series 61
Voor
- Front dimension:
- Ø 24 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel shape:
- Raised
Montage
- Design:
- Raised
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Colourless
- Lens material:
- Plastic, according to UL 94 HB
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- White
- Shape of illumination:
- Front
Elektrische kenmerken
- Operating voltage:
- 12 V AC/DC +10%
- Operation current:
- 3 - 6 mA ±15 %
- Lumi. Intensity:
- 900 mcd
Mechanische kenmerken
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Tightening torque:
- Max. 0.5 Nm
- Totaal gewicht:
- 0.013 kg
Omgevingscondities
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C
Meer
- Housing colour:
- Black
- Housing material:
- Plastic, according to UL 94 V0, self-extinguishing
- Wiring diagrams:
Product opslaan of delen
Bestanden downloaden
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 4 COMPONENTS:
Voor
- Front form:
- Round
Bedienings-/display-eenheid
- Lens colour:
- Colourless
- Lens material:
- Plastic, according to UL 94 HB
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Shape of illumination:
- Front
Mechanische kenmerken
- Weight:
- 0.001 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Lens, Ø 19.7 mm, Illuminated, Colourless, Flush, Plastic, according to UL 94 HB
- Dimension:
- Ø 19.7 mm
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Montage
- Mounting type:
- Panel mounting
Mechanische kenmerken
- Terminal:
- Plug-in terminal, 2.8 x 0.5 mm
- Tightening torque:
- Max. 0.5 Nm
- Weight:
- 0.008 kg
Omgevingscondities
- IP Protection:
- IP40 rear side, according to EN IEC 60529, IP67 front side, according to EN IEC 60529
- Operating temperature:
- – 25 °C … + 55 °C
- Storage temperature:
- – 40 °C … + 85 °C
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Actuator, Plug-in terminal, 2.8 x 0.5 mm
- Housing colour:
- Black
- Housing material:
- Plastic, according to UL 94 V0, self-extinguishing
- Wiring diagrams:

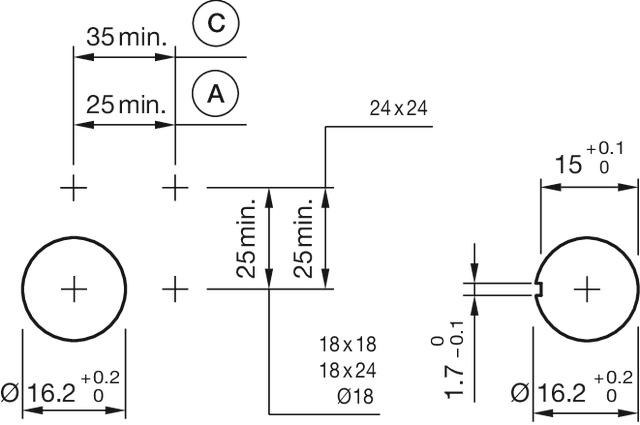

- Mounting cut-outs:
A = Solder/Plug-in terminal 2.8 mm x 0.5 mm
C = Screw terminal- Dimension drawings:
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Voor
- Front dimension:
- Ø 24 mm
- Front form:
- Round
- Front bezel colour:
- Nature
- Front bezel material:
- Aluminium
- Front bezel shape:
- Raised
Montage
- Mounting type:
- Panel mounting
Mechanische kenmerken
- Weight:
- 0.002 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Front bezel, Ø 24 mm, Nature, Aluminium
- Hints:
- For devices with front dimension Ø 24 mm, raised designThe colour of anodised aluminium parts can vary due to technical production reasons
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
Bedienings-/display-eenheid
- Illumination colour:
- White
Elektrische kenmerken
- Operating voltage:
- 12 V AC/DC +10%
- Operation current:
- 3 - 6 mA ±15 %
- Lumi. Intensity:
- 900 mcd
Mechanische kenmerken
- Weight:
- 0.002 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Single-LED, T1 ¾ MG, White, 12 V AC/DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)When using AC/DC types with AC operation, slight flickering can occurThe luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CThe specified versions are built with a protection diode (halve wave rectifier) in series and the LEDLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LEDWhere supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.Keep to the country specific safety instructions
- Wiring diagrams:

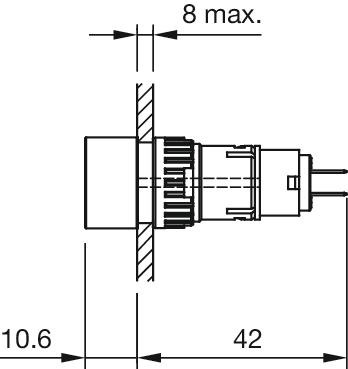

- Dimension drawings:
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
