Voyants lumineux
https://www.eao.com/p/ffe7d910

Indicator, Series 51, Ø 25 mm, Flush, IP65, Soldering terminal

  • 61-9642.7
  • 51-050.005F
  • 61-9933.0
  • 10-2J09.1062

  • Lens colour
  • Lens material
  • Shape of illumination
61-9642.7
  • Terminal
51-050.005F
  • Front bezel colour
  • Front bezel material
61-9933.0
  • Operating voltage kind of
  • Illumination colour
  • Operating voltage
10-2J09.1062
Ajoute des accessoires & outilage
Ajouter à la comparaison
Ajouter au panier
Votre produit:
61-9642.7
51-050.005F
61-9933.0
10-2J09.1062

61-9642.7~10-2J09.1062~51-050.005F~61-9933.0

Indicator, Series 51, Ø 25 mm, Flush, IP65, Soldering terminal

Gamme de produits
HMI function:
Indicator
Séries:
Series 51
Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Montage
Design:
Flush
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Partie commande/affichage
Lens colour:
Colourless
Lens material:
Plastic, according to UL 94 HB
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Illumination colour:
Red
Shape of illumination:
Front
Caractéristiques électriques
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Operating voltage:
12 V AC/DC +10%
Operation current:
7 - 14 mA ±15 %
Lumi. Intensity:
330 mcd
Caractéristiques mécaniques
Terminal:
Soldering terminal
Tightening torque:
Fixing nut max. 0.5 Nm
Poids total:
0.011 kg
Conditions environnementales
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Autres
Housing colour:
Black
Product attributes:
For indicator, push button, illuminated push button
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 4 COMPONENTS:
61-9642.7

61-9642.7

Lens

Front
Front form:
Round
Partie commande/affichage
Lens colour:
Colourless
Lens material:
Plastic, according to UL 94 HB
Lens illumination:
Illuminated
Lens shape:
Flush
Lens optics:
transparent
Shape of illumination:
Front
Caractéristiques mécaniques
Weight:
0.001 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Lens, Ø 19.7 mm, Illuminated, Colourless, Flush, Plastic, according to UL 94 HB
Dimension:
Ø 19.7 mm
Télécharger des fichiers
Où acheter
Ajouter au panier
51-050.005F

51-050.005F

Actuator

Montage
Design:
Flush
Mounting type:
Panel mounting
Caractéristiques électriques
Switching voltage and switching current:
100 mA at 42 VAC/VDC
Electric strength:
2500 VAC, 50 Hz, 1 min. between all terminals and earth, according to IEC 61058-1, part 15
Caractéristiques mécaniques
Terminal:
Soldering terminal
Tightening torque:
Fixing nut max. 0.5 Nm
Weight:
0.004 kg
Conditions environnementales
IP front protection:
IP65, according to DIN EN 60529
Operating temperature:
– 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Storage temperature:
– 40 °C … + 85 °C
Shock resistance:
15 g for 11 ms, as per DIN / EN 60512-4-3, DIN / EN 60068-2-27 (Single impacts, semi-sinusoidal)
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Actuator, Soldering terminal, IP65, according to DIN EN 60529
Housing colour:
Black
Wiring diagrams:
Wiring diagrams
Component layouts:

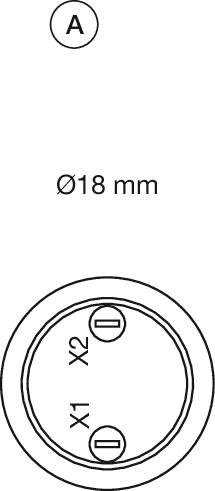

Component layouts
A = Terminals (rear side)
Mounting cut-outs:
Mounting cut-outs

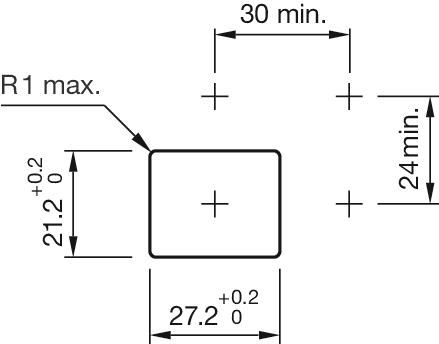

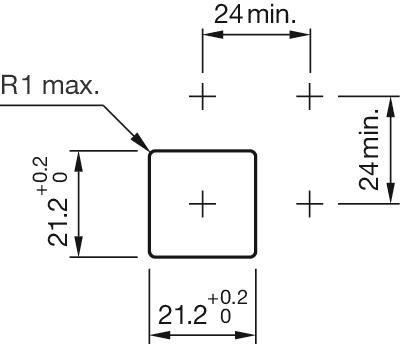

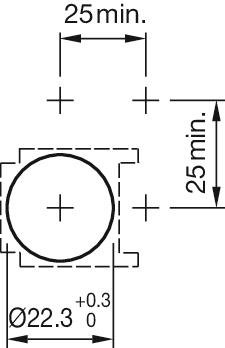

Mounting cut-outs
Mounting cut-outs
Dimension drawings:

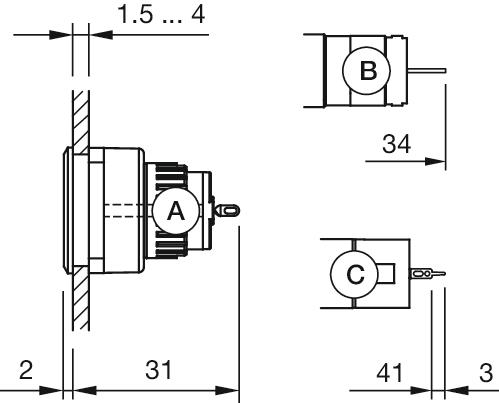

Dimension drawings
A = Solder terminal
B = Plug-in terminal 2.8 mm x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Télécharger des fichiers
Où acheter
Ajouter au panier
61-9933.0

61-9933.0

Front bezel set

Front
Front dimension:
Ø 25 mm
Front form:
Round
Front bezel colour:
Nature
Front bezel material:
Aluminium
Montage
Mounting cut-out:
Ø 22.5 mm
Mounting type:
Panel mounting
Caractéristiques mécaniques
Weight:
0.005 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Front bezel set, Ø 25 mm, Ø 19,7 mm, Nature, Aluminium
Dimension:
Ø 25 mm
Internal size:
Ø 19,7 mm
Product attributes:
For indicator, push button, illuminated push button
Hints:
The colour of anodised aluminium parts can vary due to technical production reasons
Mounting cut-outs:
Mounting cut-outs
Télécharger des fichiers
Où acheter
Ajouter au panier
10-2J09.1062

10-2J09.1062

Single-LED

Partie commande/affichage
Illumination colour:
Red
Caractéristiques électriques
Operating voltage:
12 V AC/DC +10%
Operation current:
7 - 14 mA ±15 %
Lumi. Intensity:
330 mcd
Caractéristiques mécaniques
Weight:
0.003 kg
Certificats
REACH:
REACH compliant
RoHS:
RoHS compliant
Autres
Short Description:
Single-LED, T1 ¾ MG, Red, 12 V AC/DC +10%
Kind of iIllumination:
Single-LED
Hints:
Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)
When using AC/DC types with AC operation, slight flickering can occur
The luminous intensity stated is for when used with DC
Electrical and optical data are measured at 25 °C
The specified versions are built with a protection diode (halve wave rectifier) in series and the LED
Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
Where supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.
Keep to the country specific safety instructions
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
