Assembly settings
Gamme de produits
Disponibilité en ligne
Non
no
choisir ...
Front
Front form
Round
Round
choisir ...
Front bezel colour
Black
Black
choisir ...
Front bezel material
Plastic
Plastic
choisir ...
Front dimension
Ø 25 mm
Ø 25 mm
choisir ...
Montage
Design
Flush
Flush
choisir ...
Mounting type
Panel mounting
Panel mounting
choisir ...
Mounting cut-out
Ø 22 mm
Ø 22 mm
choisir ...
Caractéristiques électriques
Resistance
10
10
choisir ...
Caractéristiques mécaniques
Terminal
Flat ribbon cable
Flat ribbon cable
choisir ...
Conditions environnementales
IP front protection
IP65
IP65
choisir ...
Retour
Potentiometer, Series 61, Flush, 10
- 61-4970.10
- Front dimension
- Mounting cut-out
- Front form
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Potentiometer
- Séries:
- Series 61
Front
- Front dimension:
- Ø 25 mm
- Front form:
- Round
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- Flush
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Caractéristiques électriques
- Power (W):
- 1
- Resistance:
- 10 kΩ
Caractéristiques mécaniques
- Terminal:
- Flat ribbon cable
- Tightening torque:
- Max. 0.5 Nm
- Poids total:
- 0.016 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C
Autres
- Housing material:
- Plastic
- Product attributes:
- Cable length 300 mm
- Wiring diagrams:
A = blue
B = red
C = yellow
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 1 COMPONENTS:
Front
- Front dimension:
- Ø 25 mm
- Front form:
- Round
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Mounting cut-out:
- Ø 22.3 mm
- Mounting type:
- Panel mounting
Caractéristiques électriques
- Power (W):
- 1
- Resistance:
- 10 kΩ
Caractéristiques mécaniques
- Terminal:
- Flat ribbon cable
- Tightening torque:
- Max. 0.5 Nm
- Weight:
- 0.019 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, Ø 22.3 mm, Ø 25 mm, Round, Black, Plastic, Flat ribbon cable, IP65
- Housing material:
- Plastic
- Product attributes:
- Cable length 300 mm

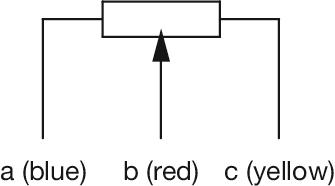

- Wiring diagrams:
- A = blue
B = red

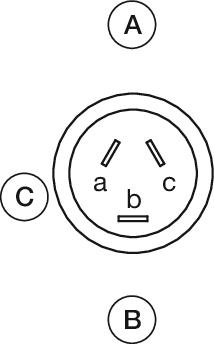

C = yellow - Component layouts:
A = Terminals (rear side)
B = Conductor colour of flat ribbon cable
C = a = blue, b = red, c = yellow- Mounting cut-outs:
- Dimension drawings:
