Keuzeschakelaar
https://www.eao.com/p/fc1a4ef5

Selector switch illuminated 3 positions, Series 46, 3 positions, Raised, 1 NO, Screw terminal

  • 46-2W0S.1CN0.004
  • 46-2V00.000.000
  • 46-311.1Z10
  • 46-39J.0986

  • Lever colour
  • Switching action
  • Lever bar colour
46-2W0S.1CN0.004
46-2V00.000.000
  • Terminal
  • Configuratie van contacten
46-311.1Z10
  • Operating voltage
46-39J.0986
Accessoires & gereedschap toevoegen
Ter vergelijking toevoegen
Toevoegen aan winkelwagentje
Uw product:
46-2W0S.1CN0.004
46-2V00.000.000
46-311.1Z10
46-39J.0986

46-2W0S.1CN0.004~46-2V00.000.000~46-311.1Z10~46-39J.0986

Selector switch illuminated 3 positions, Series 46, 3 positions, Raised, 1 NO, Screw terminal

Assortiment
HMI function:
Selector switch
Series:
Series 46
Voor
Front dimension:
Ø 30 mm
Front form:
Round
Front bezel colour:
Black
Front bezel material:
Plastic
Colour:
Grey
Montage
Design:
Raised
Mounting cut-out:
Ø 22.3 mm
Mounting type:
Panel mounting
Bedienings-/display-eenheid
Lens illumination:
Illuminated
Lever colour:
White
Lever bar colour:
White
Lever shape:
short
Illumination colour:
White
Elektrische kenmerken
Switching voltage and switching current:

at AC-15

Voltage

24 V

120 V

240 V

600 V

Current

10 A

6 A

3 A

1,2 A

at DC-13

Voltage

24 V

120 V

240 V

Current

5 A

1,1 A

0,55 A
Configuratie van contacten:
1 NO
Operating voltage:
24 AC/DC -20% / +10%
Switching rating:
600 V AC @ 1,2 A
Electrical lifetime:
50 000 h
Thermal current Ith:
10 A (IEC-EN60947-1)
Mechanische kenmerken
Terminal:
Screw terminal
Contact material:
Silver
Switching action:
Momentary - Rest - Momentary
Switching system:
Slow-make switching element
Switching positions:
3 positions
Switching angle:
45° left / 45° right
Tightening torque:
2 … 3 Nm (17.7 ... 26.6 Lb-in)
Totaal gewicht:
0.056 kg
Omgevingscondities
IP front protection:
IP65
Operating temperature:
– 25 °C … + 55 °C
Vibration resistance:
5g f= 2...500Hz (EN-IEC 60068-2-6)
Meer
Material:
Plastic
Housing colour:
Black
Housing material:
Plastic
Product attributes:
Illuminative
Colour RAL:
7016 RAL
max. number of switching elements:
2
Wiring diagrams:
Wiring diagrams
Wiring diagrams
Product opslaan of delen
Bestanden downloaden
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 4 COMPONENTS:
46-2W0S.1CN0.004

46-2W0S.1CN0.004

Actuator

Voor
Front dimension:
Ø 30 mm
Front form:
Round
Front bezel colour:
Black
Front bezel material:
Plastic
Montage
Design:
Raised
Mounting cut-out:
Ø 22.3 mm
Mounting type:
Panel mounting
Bedienings-/display-eenheid
Lever colour:
White
Lever bar colour:
White
Lever material:
plastic
Lever shape:
short
Elektrische kenmerken
Protection class:
ll
Mechanische kenmerken
Switching action:
Momentary - Rest - Momentary
Switching positions:
3 positions
Switching angle:
45° left / 45° right
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Tightening torque:
2 … 3 Nm (17.7 ... 26.6 Lb-in)
Weight:
0.027 kg
Omgevingscondities
IP front protection:
IP65
IK front protection:
IK03
Operating temperature:
– 25 °C … + 55 °C
Shock resistance:
30g, 18ms (EN-IEC 60068-2-27)
Vibration resistance:
5g f= 2...500Hz (EN-IEC 60068-2-6)
Climate resistance:
+25°C-97%RH / +45°C-93%RH (IEC-EN60068-2-30)
Certificaten
Conformities:
CE
REACH:
REACH compliant
RoHS:
RoHS compliant
Standards:
CSA C22-2, IEC EN 60947-1, IEC EN 60947-5-1, UL508
Meer
Short Description:
Actuator, Ø 22.3 mm, Ø 30 mm, illuminative, White, short, Round, Black, Plastic, Momentary - Rest - Momentary, IP65, IK03
Housing colour:
Black
Housing material:
Plastic
max. number of switching elements:
2

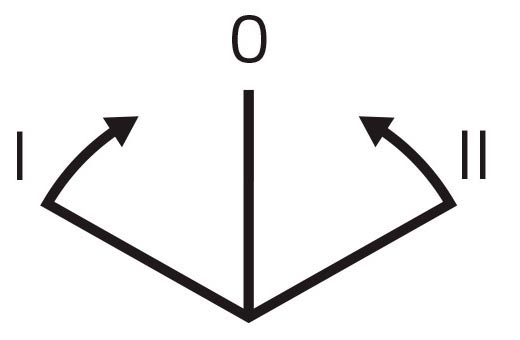

Switching positions:
Switching positions

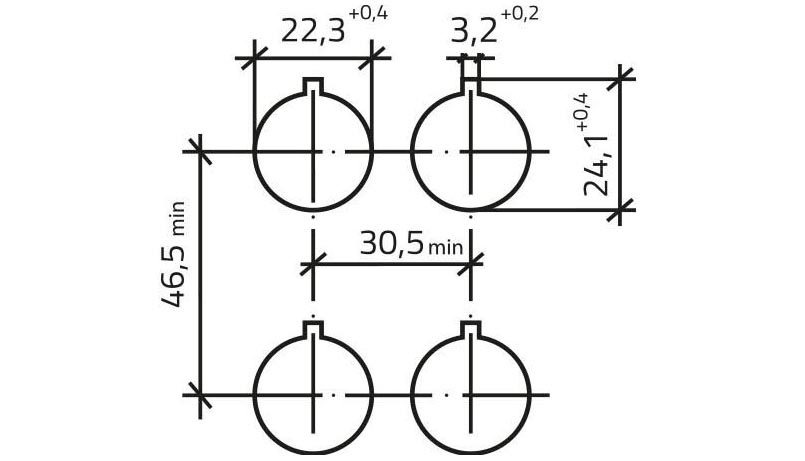

Mounting cut-outs:
Mounting cut-outs

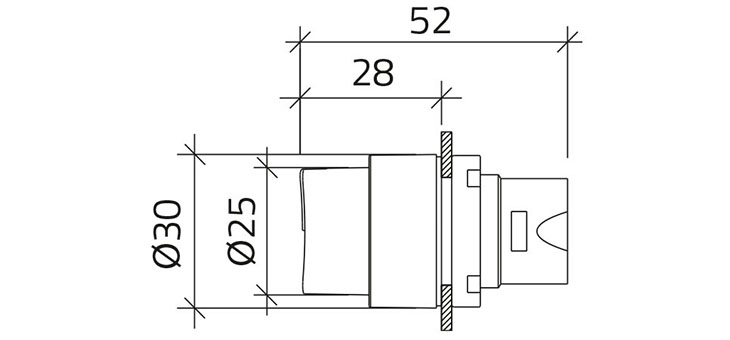

Dimension drawings:
Dimension drawings
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
46-2V00.000.000

46-2V00.000.000

Holder

Voor
Colour:
Grey
Montage
Mounting type:
Panel mounting
Elektrische kenmerken
Protection class:
ll
Mechanische kenmerken
Tightening torque:
0.8 ... 1 Nm for screw terminal
Weight:
0.016 kg
Omgevingscondities
IP front protection:
IP20
Operating temperature:
– 25 °C … + 55 °C
Shock resistance:
30g, 18ms (EN-IEC 60068-2-27)
50g, 11ms (EN-IEC 60068-2-27)
Vibration resistance:
5g f= 2...500Hz (EN-IEC 60068-2-6)
Climate resistance:
+25°C-97%RH / +45°C-93%RH (IEC-EN60068-2-30)
Certificaten
Approbations:
CSA, EAC, UL
Conformities:
CE
REACH:
REACH compliant
RoHS:
RoHS compliant
Standards:
CSA C22-2, IEC EN 60947-1, IEC EN 60947-5-1, UL508
Meer
Short Description:
Holder, Plastic
Dimension:
38 mm x 30 mm
Material:
Plastic
Product attributes:
Illuminative
Colour RAL:
7016 RAL
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
46-311.1Z10

46-311.1Z10

Switching element

Voor
Colour:
Green
Elektrische kenmerken
Switching voltage and switching current:

at AC-15

Voltage

24 V

120 V

240 V

600 V

Current

10 A

6 A

3 A

1,2 A

at DC-13

Voltage

24 V

120 V

240 V

Current

5 A

1,1 A

0,55 A
Contacts:
1 NO
Insulation voltage:
Ui 690V - Uimp 4KV (IEC-EN60947-1)
Switching rating:
600 V AC @ 1,2 A
Pollution degree:
3
Thermal current Ith:
10 A (IEC-EN60947-1)
Mechanische kenmerken
Terminal:
Screw terminal
Contact material:
Silver
Switching system:
Slow-make switching element
Mechanical lifetime:
1 Mil. cycles of operation (RCC/RPB)
Operating force:
2 N
Tightening torque:
0.8 ... 1 Nm for screw terminal
Weight:
0.011 kg
Omgevingscondities
IP Protection:
IP20
Operating temperature:
– 25 °C … + 55 °C
Shock resistance:
30g, 18ms (EN-IEC 60068-2-27)
50g, 11ms (EN-IEC 60068-2-27)
Vibration resistance:
5g f= 2...500Hz (EN-IEC 60068-2-6)
Climate resistance:
+25°C-97%RH / +45°C-93%RH (IEC-EN60068-2-30)
Certificaten
Approbations:
CSA, EAC, UL
Conformities:
CE
REACH:
REACH compliant
RoHS:
RoHS compliant
Standards:
CSA C22-2, IEC EN 60947-1, IEC EN 60947-5-1, UL508
Meer
Short Description:
Switching element, Slow-make switching element, 600 V AC @ 1,2 A, Silver, 1 NO, Screw terminal
Material:
Plastic
Wiring diagrams:
Wiring diagrams
Dimension drawings:
Dimension drawings
Bestanden downloaden
Waar te koop
Toevoegen aan winkelwagentje
46-39J.0986

46-39J.0986

LED

Bedienings-/display-eenheid
Lens illumination:
Illuminated
Illumination colour:
White
Elektrische kenmerken
Operating voltage:
24 AC/DC -20% / +10%
Electrical lifetime:
50 000 h
Mechanische kenmerken
Weight:
0.002 kg
Omgevingscondities
Operating temperature:
– 25 °C … + 55 °C
Certificaten
Conformities:
CE
REACH:
REACH compliant
RoHS:
RoHS compliant
Standards:
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, IEC EN 62471
Meer
Short Description:
LED, White, 24 AC/DC -20% / +10%
Kind of iIllumination:
Multi-LED
Dimension:
Ø 10 mm x 20 mm
Bestanden downloaden
