Retour
Indicator, Series 18, 19 mm x 19 mm, Flush, IP40, Soldering terminal
- 18-082.0052L
- 18-920.1
- Lens colour
- Front dimension
- Illumination colour
- Front form
- Operating voltage kind of
- Operating voltage
- Mounting cut-out
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- Product Status:
- Phase-out
- HMI function:
- Indicator
- Séries:
- Series 18
Front
- Front dimension:
- 19 mm x 19 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- Flush
- Mounting cut-out:
- 15.8 mm x 15.8 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Red
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- translucent
- Illumination colour:
- Red
Caractéristiques électriques
- Operating voltage:
- 24 V DC ±10 %
Caractéristiques mécaniques
- Terminal:
- Soldering terminal
- Poids total:
- 0.006 kg
Conditions environnementales
- IP front protection:
- IP40
- Operating temperature:
- – 25 °C … + 65 °C
Autres
- Product attributes:
- Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Ajouter au panier
Votre produit se compose des éléments suivants 2 COMPONENTS:
Gamme de produits
- Product Status:
- Phase-out
Front
- Front dimension:
- 19 mm x 19 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- Flush
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Red
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- translucent
- Illumination colour:
- Red
Caractéristiques électriques
- Operating voltage:
- 24 V DC ±10 %
Caractéristiques mécaniques
- Terminal:
- Soldering terminal
- Weight:
- 0.003 kg
Conditions environnementales
- Operating temperature:
- – 25 °C … + 65 °C
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, 19 mm x 19 mm, Flush, Illuminated, Red, Plastic, translucent, Square, Black, Plastic, Soldering terminal, Red
- Dimension:
- 13.8 mm x 13.8 mm
- Product attributes:
- Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:

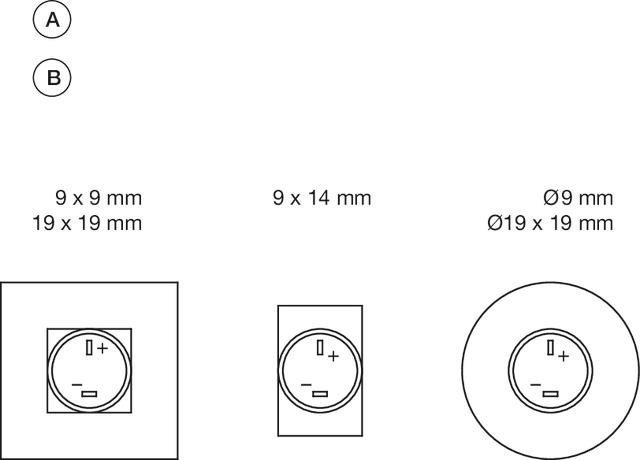

- Component layouts:
A = Terminals (rear side)

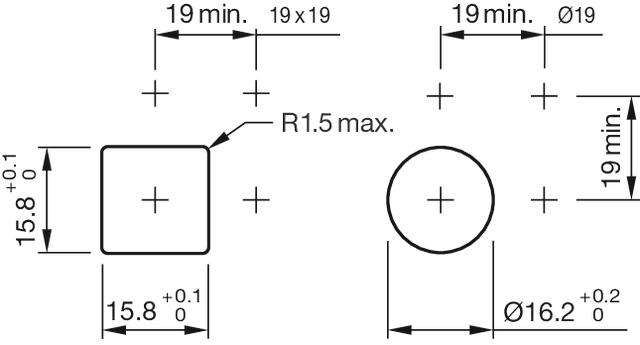

B = Indicator- Mounting cut-outs:

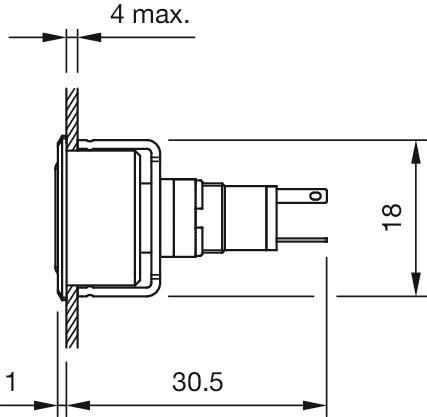

- Dimension drawings:
Télécharger des fichiers
Où acheter
Ajouter au panier
Gamme de produits
- Product Status:
- Phase-out
Front
- Front dimension:
- 19 mm x 19 mm
- Front form:
- Square
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Mounting cut-out:
- 15.8 mm x 15.8 mm
- Mounting type:
- Panel mounting
Caractéristiques mécaniques
- Weight:
- 0.003 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Front bezel set, 19 mm x 19 mm, 13,8 mm x 13,8 mm, Black, Plastic
- Dimension:
- 19 mm x 19 mm
- Internal size:
- 13,8 mm x 13,8 mm
- Product attributes:
- For square lens
Télécharger des fichiers
