Indicator, Series 18, Ø 9 mm, Raised, IP40, Soldering terminal
- 18-030.0052L
- Front form
- Illumination colour
- Lens colour
- Front dimension
- Operating voltage kind of
Accessoires & gereedschap toevoegen
Uw product:
Assortiment
- Product Status:
- Phase-out
- HMI function:
- Indicator
- Series:
- Series 18
Voor
- Front dimension:
- Ø 9 mm
- Front form:
- Round
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 8 mm
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Red
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- translucent
- Illumination colour:
- Red
Elektrische kenmerken
- Operating voltage:
- tbd
Mechanische kenmerken
- Terminal:
- Soldering terminal
- Totaal gewicht:
- 0.002 kg
Omgevingscondities
- IP front protection:
- IP40
Meer
- Product attributes:
- Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:
Product opslaan of delen
Bestanden downloaden
Toevoegen aan winkelwagentje
Uw product bestaat uit het volgende 1 COMPONENTS:
Assortiment
- Product Status:
- Phase-out
Voor
- Front dimension:
- Ø 9 mm
- Front form:
- Round
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
Montage
- Design:
- Raised
- Mounting type:
- Panel mounting
Bedienings-/display-eenheid
- Lens colour:
- Red
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- translucent
- Illumination colour:
- Red
Elektrische kenmerken
- Operating voltage:
- tbd
Mechanische kenmerken
- Terminal:
- Soldering terminal
- Weight:
- 0.002 kg
Certificaten
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Meer
- Short Description:
- Actuator, Ø 9 mm, Flush, Illuminated, Red, Plastic, translucent, Round, Black, Plastic, Soldering terminal, Red
- Product attributes:
- Luminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LED
- Wiring diagrams:

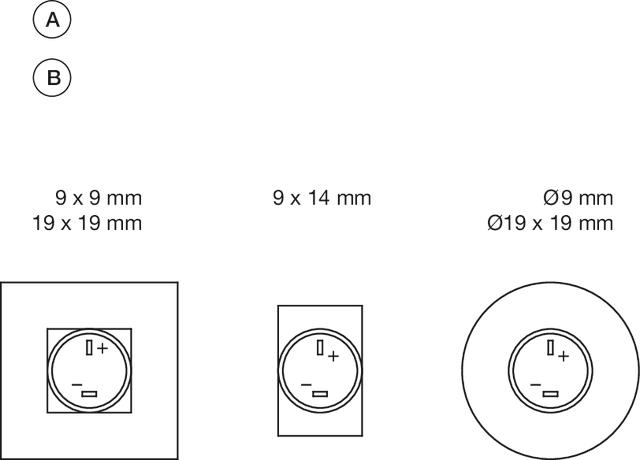

- Component layouts:
A = Terminals (rear side)

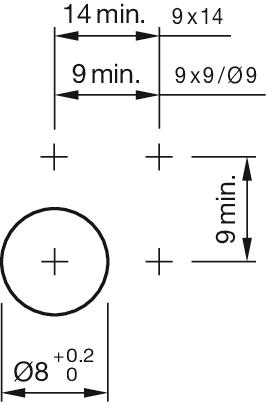

B = Indicator- Mounting cut-outs:

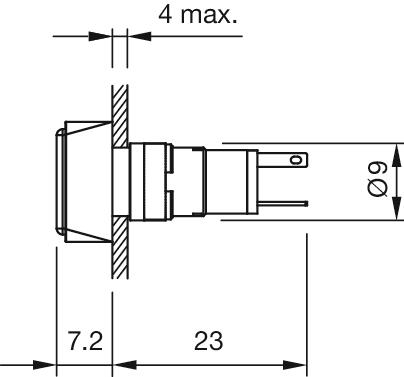

- Dimension drawings:
