Assembly settings
제품 라인업
즉시 이용 가능
아니
no
선택하다 ...
정면
Front form
Rectangular
Rectangular
선택하다 ...
Front bezel type
Raised
Raised
선택하다 ...
Front bezel colour
Black
Black
선택하다 ...
Front bezel material
Plastic
Plastic
선택하다 ...
Front dimension
36 mm x 24 mm
36 mm x 24 mm
선택하다 ...
장착
Design
Flush
Flush
선택하다 ...
Mounting type
Panel mounting
Panel mounting
선택하다 ...
Mounting cut-out
21 mm x 29 mm
21 mm x 29 mm
선택하다 ...
작동/표시 부분
Lens shape
Flush
Flush
선택하다 ...
Lens colour
Colourless
Colourless
선택하다 ...
Lens material
Plastic
Plastic
선택하다 ...
Lens illumination
Illuminated
Illuminated
선택하다 ...
전기적 특성
연락처 설정
1 C
1 C
선택하다 ...
Switching rating
400 V @ 10 A
400 V @ 10 A
선택하다 ...
기계적 특성
Terminal
Screw terminal
Screw terminal
선택하다 ...
Switching system
Snap-action switching element
Snap-action switching element
선택하다 ...
Contact material
Silver
Silver
선택하다 ...
Switching action
Maintained
Maintained
선택하다 ...
주변 환경
IP front protection
IP40
IP40
선택하다 ...
뒤로
Push button, Series 02, 36 mm x 24 mm, non illuminative, Flush, 1 C, Silver, IP40, Screw terminal
- 02-902.7
- 02-613.011
- 02-967.0
- Lens colour
- Lens illumination
- Switching action
- 연락처 설정
- Front bezel type
액세서리 및 도구 추가
귀사의 제품:
제품 라인업
- Product Status:
- Not Recommended for new design
- HMI function:
- Push button
- 시리즈:
- Series 02
정면
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
- Front bezel type:
- Raised
장착
- Design:
- Flush
- Mounting cut-out:
- 21.2 mm x 29.2 mm
- Mounting type:
- Panel mounting
작동/표시 부분
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
전기적 특성
- Switching voltage and switching current:
according to UL
250 VAC, 10 A
according to IEC 60947-5-1
AC-12: 400 V, 10 A
AC-15: 400 V, 6 A
AC-15: 250 V, 8 A
DC-13: 110 V, 0.4 A
DC-13: 60 V, 1 A
DC-13: 24 V, 3 A
- 연락처 설정:
- 1 C
- Switching rating:
- 400 V @ 10 A
- Thermal current Ith:
- 10 A
기계적 특성
- Terminal:
- Screw terminal
- Contact material:
- Silver
- Switching action:
- Maintained
- Switching system:
- Snap-action switching element
- Tightening torque:
- Fixing nut max. 0.2 Nm, Screw terminal 0.8 Nm
- 총 중량:
- 0.051 kg
주변 환경
- IP front protection:
- IP40
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Vibration resistance:
- 10 g at 10 Hz…2000 Hz, amplitude 1.0 mm, according to IEC 60068-2-6
기타
- Housing colour:
- Black
- Housing material:
- Plastic
- Product attributes:
- Use holder for film insert
- Wiring diagrams:
이 제품을 공유하고 저장하세요
파일 다운로드
장바구니에 담기
귀사의 제품은 다음과 같이 구성됩니다 3 COMPONENTS:
제품 라인업
- Product Status:
- Not Recommended for new design
정면
- Front form:
- Rectangular
작동/표시 부분
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
기계적 특성
- Weight:
- 0.004 kg
증명서
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
기타
- Short Description:
- Lens, 17.5 mm x 25.4 mm, Illuminated, Colourless, Flush, Plastic
- Dimension:
- 17.5 mm x 25.4 mm
- Product attributes:
- Use holder for film insert
파일 다운로드
어디서 구입할 수 있나요?
장바구니에 담기
제품 라인업
- Product Status:
- Not Recommended for new design
정면
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
장착
- Design:
- Flush
- Mounting cut-out:
- 21.2 mm x 29.2 mm
- Mounting type:
- Panel mounting
작동/표시 부분
- Lens illumination:
- Non illuminated
전기적 특성
- Switching voltage and switching current:
according to UL
250 VAC, 10 A
according to IEC 60947-5-1
AC-12: 400 V, 10 A
AC-15: 400 V, 6 A
AC-15: 250 V, 8 A
DC-13: 110 V, 0.4 A
DC-13: 60 V, 1 A
DC-13: 24 V, 3 A
- Contacts:
- 1 C
- Rated insulation voltage Ui:
- 400 VAC/440 VDC according toIEC 60947-5-1
- Switching rating:
- 400 V @ 10 A
- Electric strength:
- 2500 VAC, 50 Hz, 1 minute, as per IEC 60947-5-1 between all terminals and earth
- Standards:
- The switches comply with the “Standards for low-voltage switching devices” EN IEC 60947-5-1
- Thermal current Ith:
- 10 A
기계적 특성
- Terminal:
- Screw terminal
- Contact material:
- Silver
- Switching action:
- Maintained
- Switching system:
- Snap-action switching element
- Switching system:
- 1 or 2 self-cleaning snap action switching elements.1 or 2 double-throw contacts.
- Mechanical lifetime:
- 1 Mil. cycles of operation (RCC/RPB)
- Operating force:
- 6 ... 12 N
- Operating Travel:
- ca. 5 mm
- Tightening torque:
- Fixing nut max. 0.2 Nm, Screw terminal 0.8 Nm
- Terminal details 1:
- Max. wire cross-section 2 mm x 2.5 mm²Max. wire cross-section of stranded cable 2 x 1.5 mm²
- Weight:
- 0.046 kg
주변 환경
- IP Protection:
- IP40 front side, IP65 with spray cover, according to IEC 60529
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Storage temperature:
- – 30 °C … + 85 °C
- Shock resistance:
- 15 g for 11 ms, according to IEC 60068-2-27
- Vibration resistance:
- 10 g at 10 Hz…2000 Hz, amplitude 1.0 mm, according to IEC 60068-2-6
증명서
- Approbations:
- CB (IEC 60947-5-1), CENELEC CCA-NTR (EN 60947-5-1), CSA, DNV, SEV, UL
- Conformities:
- CE, UKCA, 2011 / 65 / EC (RoHS), 2014 / 35 / EU (LVD)
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
기타
- Short Description:
- Actuator, 21.2 mm x 29.2 mm, Non illuminated, Rectangular, Black, Plastic, 1 C, Maintained, Screw terminal
- Housing colour:
- Black
- Housing material:
- Plastic
- Wiring diagrams:

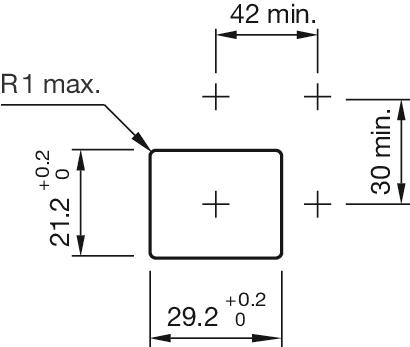

- Mounting cut-outs:

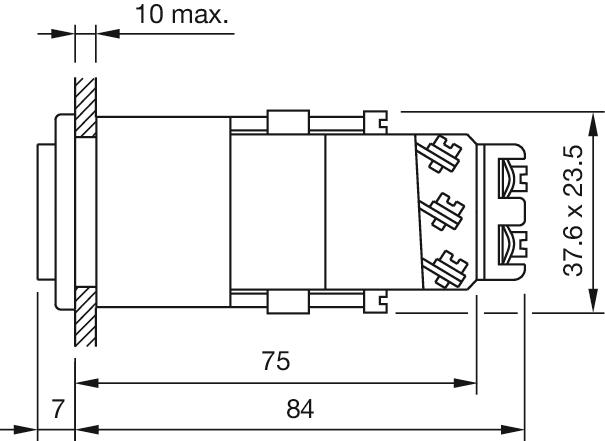

- Dimension drawings:
파일 다운로드
어디서 구입할 수 있나요?
장바구니에 담기
제품 라인업
- Product Status:
- Not Recommended for new design
정면
- Front dimension:
- 36 mm x 24 mm
- Front form:
- Rectangular
- Front bezel colour:
- Black
- Front bezel material:
- Plastic
- Front bezel type:
- Raised
장착
- Mounting type:
- Panel mounting
기계적 특성
- Weight:
- 0.001 kg
증명서
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
기타
- Short Description:
- Front bezel raised, 36 mm x 24 mm, Black, Plastic
- Dimension:
- 36 mm x 24 mm
파일 다운로드
어디서 구입할 수 있나요?
장바구니에 담기
